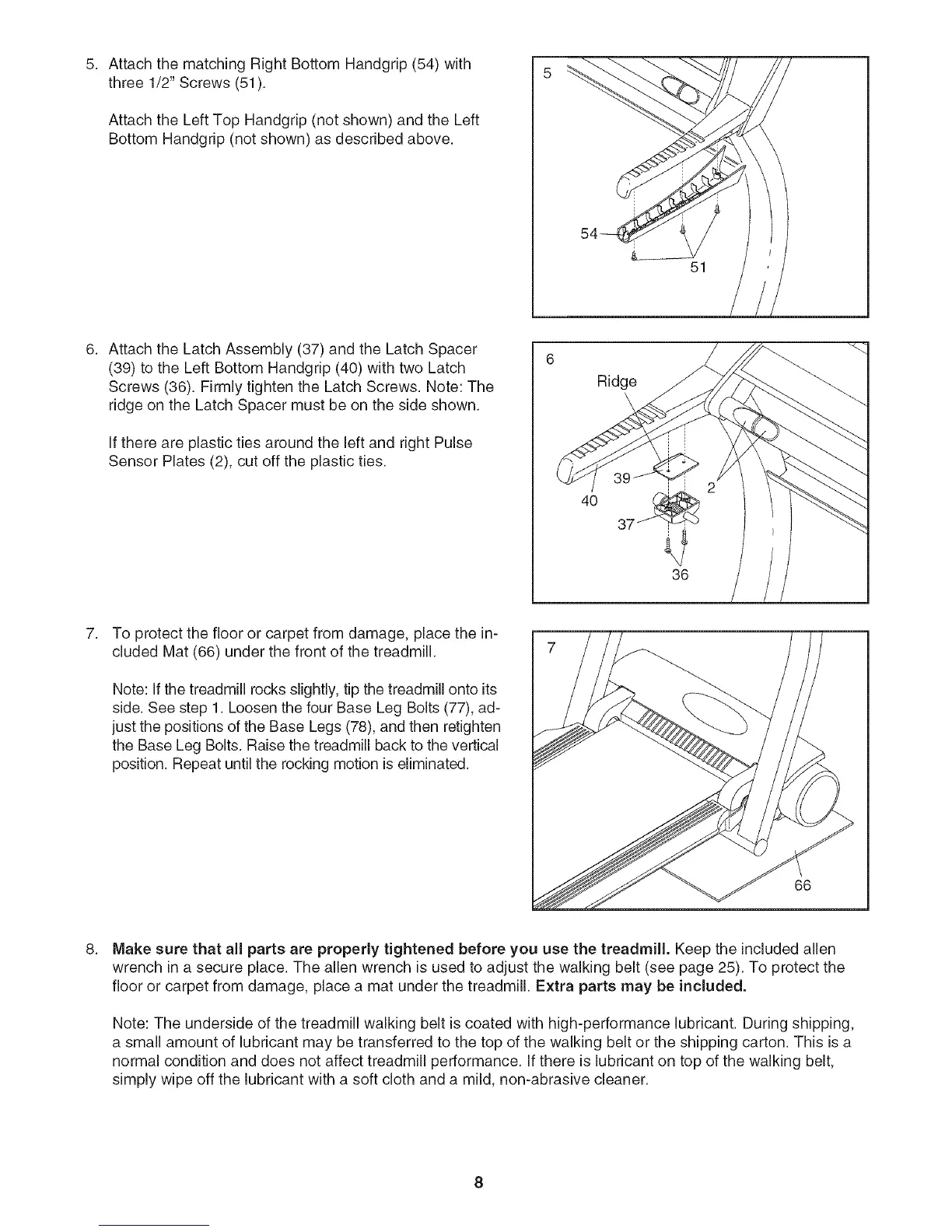

5. Attach the matching Right Bottom Handgrip (54) with
three 1/2" Screws (51).
Attach the Left Top Handgrip (not shown) and the Left
Bottom Handgrip (not shown) as described above.
51
Attach the Latch Assembly (37) and the Latch Spacer
(39) to the Left Bottom Handgrip (40) with two Latch
Screws (36). Firmly tighten the Latch Screws. Note: The
ridge on the Latch Spacer must be on the side shown.
If there are plastic ties around the left and right Pulse
Sensor Plates (2), cut off the plastic ties.
Ridge
4O
To protect the floor or carpet from damage, place the in-
cluded Mat (66) under the front of the treadmill.
Note: If the treadmill rocks slightly, tip the treadmill onto its
side. See step 1. Loosen the four Base Leg Bolts (77), ad-
just the positions of the Base Legs (78), and then retighten
the Base Leg Bolts. Raise the treadmill back to the vertical
position. Repeat until the rocking motion is eliminated.
66
Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 25). To protect the
floor or carpet from damage, place a mat under the treadmill. Extra parts may be included.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping,
a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a
normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt,
simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
