Reebok i-Trainer.SE
28
Customer Support 0800 440 2459 Reebok i-Trainer.SE
29
reebokfitness.info
Parts ID

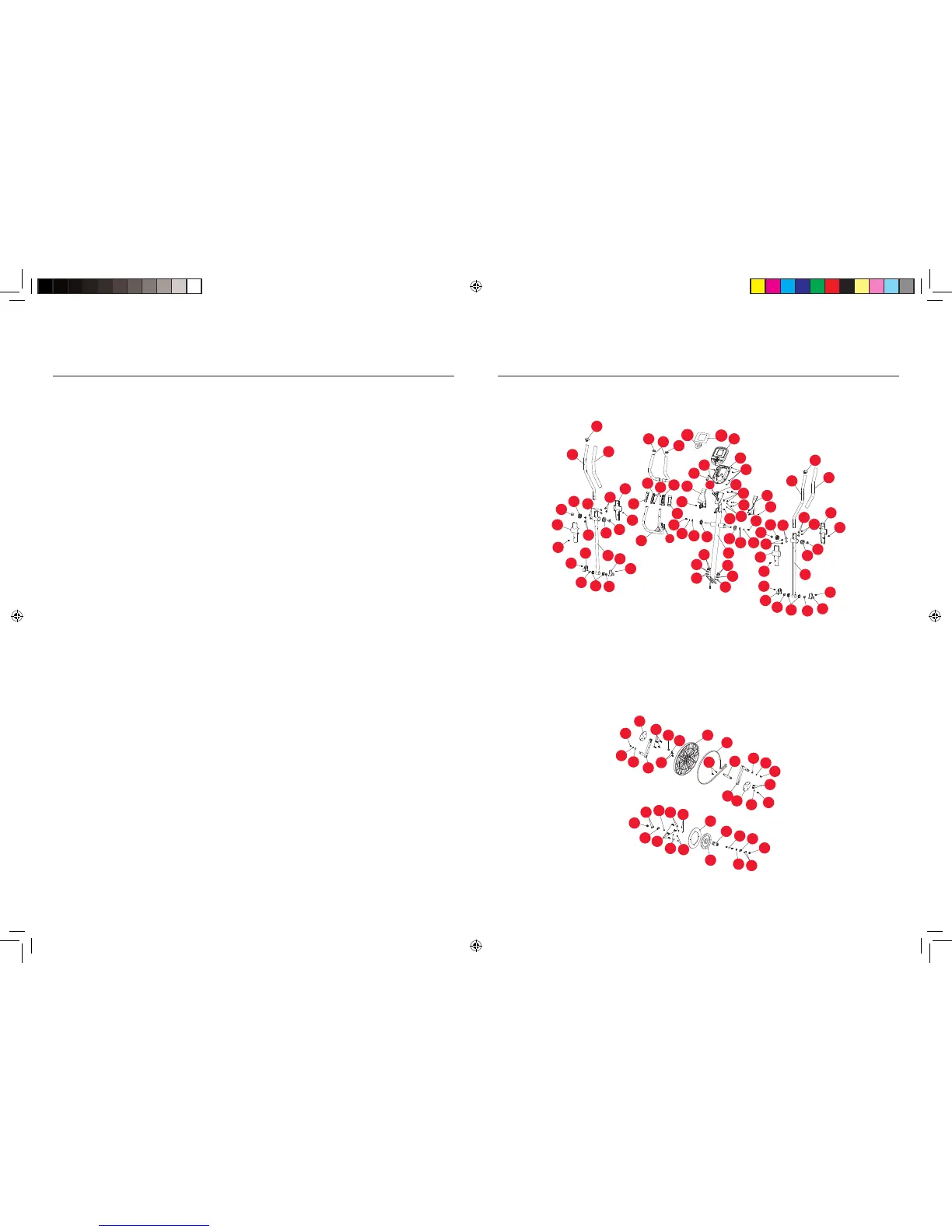

Diagram 1
IT SE-373 8x17x1.5 Washer x 4
IT SE-524 M5x14 Screw x 4
IT SE-126 M8x15 Screw x 2
IT SE-215 M8x20 Screw x 4
IT SE-201 Foam Grip x 2
IT SE-219 M6x50 Bolt x 2
IT SE-288 Upright x 1
IT SE-289 Upright Axle Bushing x 2
IT SE-205 Handlebar Cover – Rear x 2
IT SE-237 Handlebar Cover – Front x 2
IT SE-249 Lower Handlebar Bushing – 1 x 4
IT SE-541 M5x29 Bolt x 1
IT SE-236 Lower Handlebar Tube x 2
IT SE-290 M8x12 Screw x 8
IT SE-211 M4x10 Screw x 2
IT SE-814 8.5x20.5x2 Curve Washer x 8
IT S
E-213 Action Handlebar – Upper – Left x 1
IT SE-214 Foam Grip 28-29x660 x 2
IT SE-260 Action Handlebar – Upper – Right x 1
IT SE-216 Lower Handlebar – Cover – Left x 2
IT SE-217 Lower Handlebar – Cover – Right x 2
IT SE-291 Ø 8x23x2 Washer x 2
IT SE-130 Overlay x 1
IT SE-131 Button Overlay x 1
IT SE-807 Ø 8x14x2 Spring Washer x 6
IT SE-230 Handlebar End Cap x 2
IT SE-229 Fixed Handlebar End Cap x 2
IT SE-227 Handle Pulse Sensor Cover – Upper x 2
IT SE-226 Handle Pulse Sensor Cover – Lower x 2
IT SE-802 M4x15 Screw x 14
IT SE-902 7 Pin Wire – Upper x 1
IT SE-245 3.5x16 Screw x 4
IT SE-905 Handle Pul
se Sensor Wire x 2
IT SE-906 Handle Pulse Sensor Wire – Middle x 2
IT SE-232 Lower Handlebar Bearing Sleeve – 2 x 4
IT SE-233 Action Handlebar Bushing
–
Upper – 1 x 4
IT SE-234 Action Handlebar Bearing Sleeve
– Upper – 2 x 4
IT SE-220 6x10x2 Spring Washer x 2
IT SE-238 Handlebar Tube x 1
IT SE-842 Console Housing Upper Cover x 1
IT SE-803 Battery Cover x 1
IT SE-804 Console Housing Cover – Left x 1
IT SE-805 Console Housing Cover – Right x 1
IT SE-808 Console Housing Lower Cover x 1
230
214
213
229
201
229
803
802
842
808
802
902
524
230
214
260
814
290
237
802
234
233
236
802
217
232
249
232
216
802
802
205
814
233
211
805
126
234
290
807291
219
220
541
289
288
215
807
373
373
807
215
905
289
291
807
126
227
211
804
906
226
245
226
237
227
802
290
238
814
233
234
234
233
205
290
236
217
802
216
802
232
249
232
802
RFE 4489_RE014201_iTrainerSE_UMFINAL.indd 28-29 25/06/2010 16:09
Diagram 2
IT SE-846 M6x14 Screw x 2
IT SE-126 M8x15 Screw x 6
IT SE-807 Ø 8x14x2 Spring Washer x 6
IT SE-220 6x10x2 Spring Washer x 4
IT SE-292 5x22x2 Washer x 2
IT SE-446 Crank Arm x 2
IT SE-476 Drving Belt 630J-6 x 1
IT SE-477 Crank Shaft Plate x 2
IT SE-457 Driving Belt Plastic Pulley x 1
IT SE-478 Crank Shaft x 1
IT SE-479 M6x20 Screw x 6
IT SE-480 M5x30 Screw x 4
IT SE-439 Nut M10x17x4 x 1
IT SE-415 Flywheel D-Shaped Holder x 1
IT SE-416 Flywheel x 1
IT SE-514 Aluminium Disc x 1
IT SE-434 Flywheel Driving Belt Pulley x 1
IT SE-420 Flywheel Axle M10x100.8 x 1
IT SE-421 M6x6 Screw x 4
IT SE-422 M10 Nut x 2
IT SE-423 Flywheel Ring-Shaped Holder x 1
IT SE-424 M10 C-cliper x 1
IT SE-373 8x17x1.5 Washer x 4
421
422
415
439
420
434
514
416
373
807
373
807
126
423
424
421
422
126
807
479
846
220
292
446
477
478
476
479
457
807
126
479
446
292
220
846
477
480
130
131
