Assembly
3
2
1

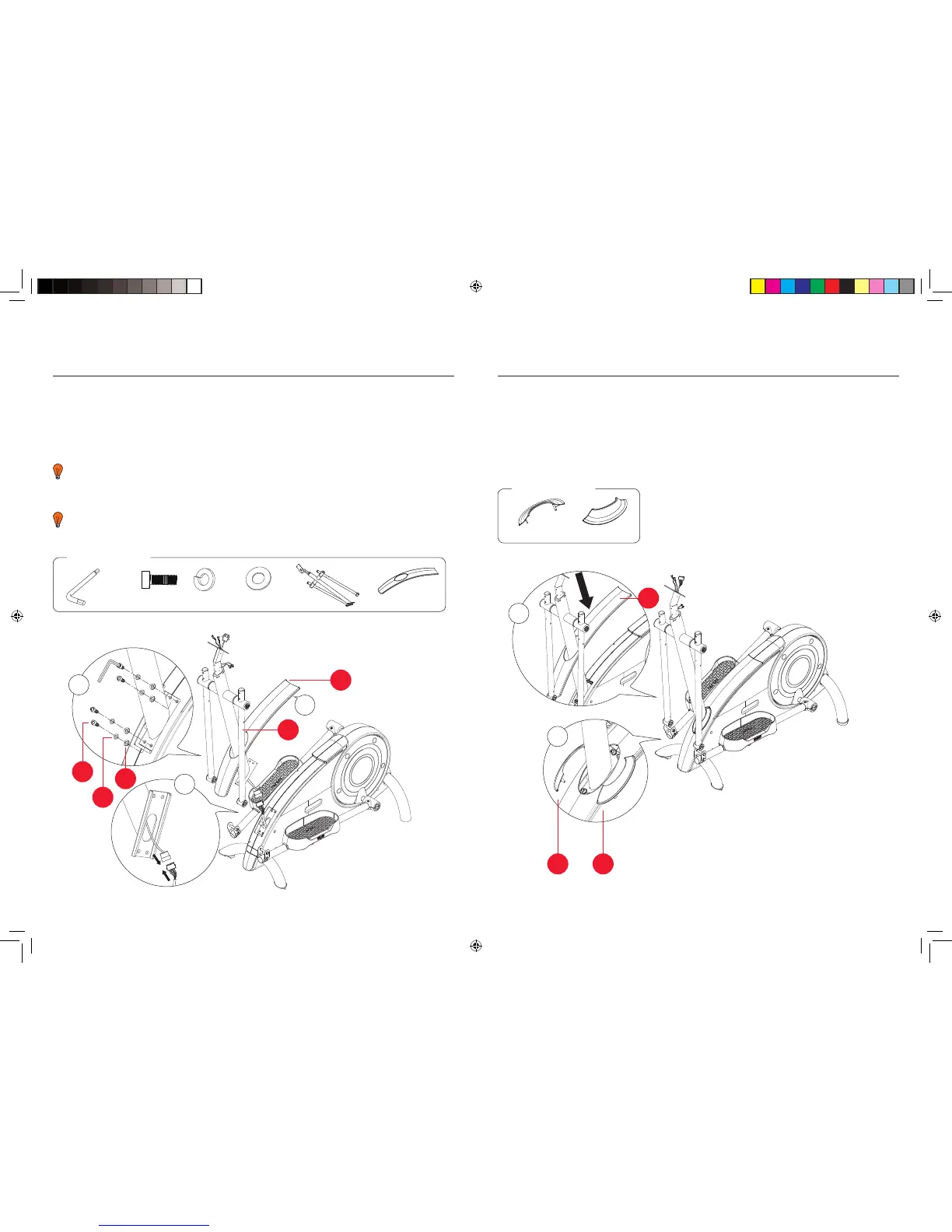

Upright
6. Place the upright (288) through the upright cover (352) as shown (fig.1).
7. Connect the wires from the bottom of the upright to the main body of the
crosstrainer (fig.2).
You will hear a click, which will confirm those wires are connected together.
8. Fix the upright to the front of the cross trainer using 4 x 215 bolts, 4 x 807 spring
washers and 4 x 373 flat washers (fig.3).
Initially insert bolts to finger tight. Once the upright is correctly located tighten
each bolt properly using the Allen key.
215
807
373
288
352
2
1
Upright Covers
9. Push the upright cover (352) into place on the main body to cover the upright
bolts (fig.1).
10. Clip the handlebar cowlings (344 & 346) around the base of the upright (fig.2).
You will require:
344 x 1
346 x 1
344 346
807 x 4
You will require:
215 x 4 373 x 4
288 x 1 352 x 16mm
352
