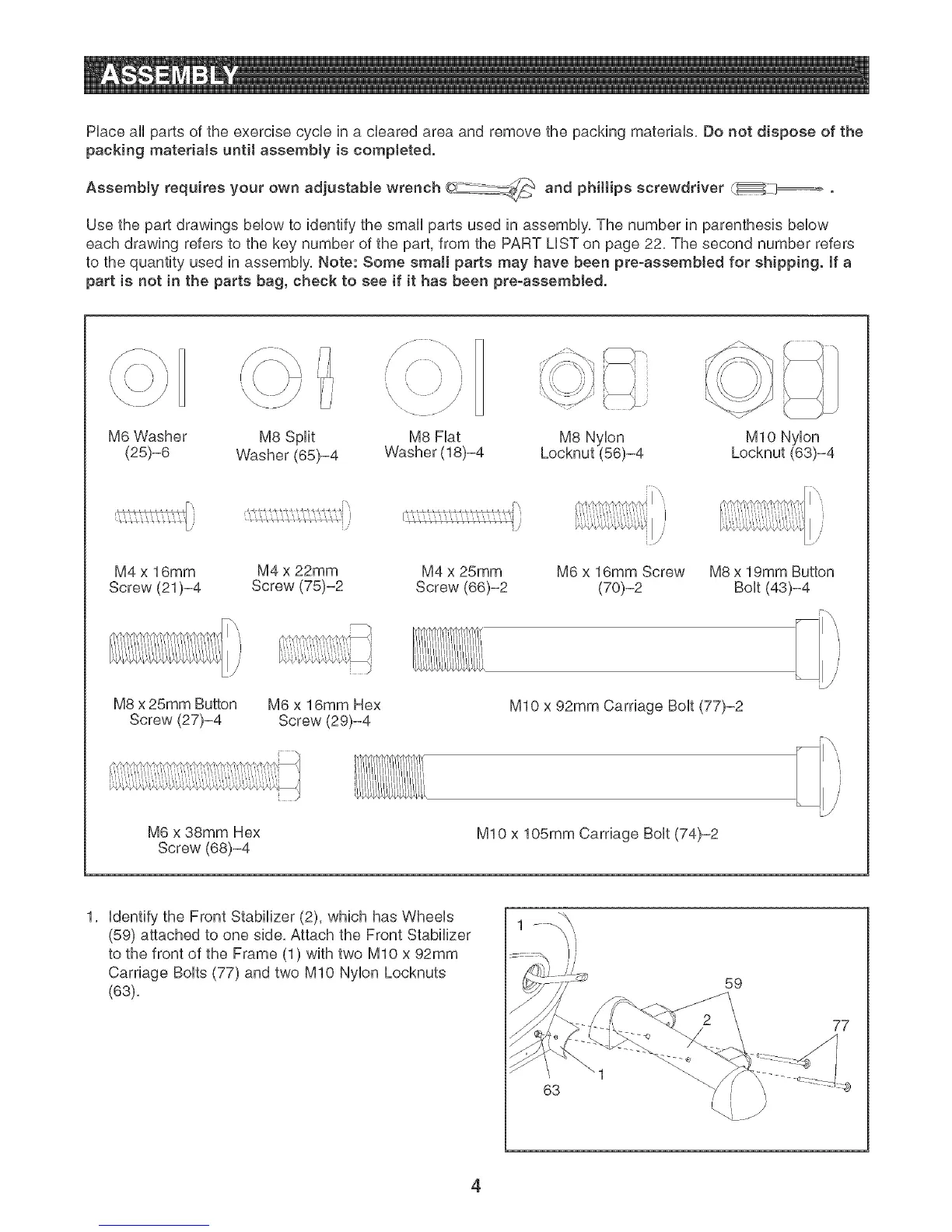

Hace all parts of the exercise cycle in a cbared area and remove the packing materiab. Do not dispose of the
packing materials until assembly is completed.
Assembly requires your own adjustable wrench ©_ and phillips screwdriver C_ _.
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers
to the quantity used in assembly. Note: Some small parts may have been pre-assembled for shipping. If a
part is not in the parts bag, check to see if it has been pre-assembled.
M6 Washer M8 Nylon MIO Nylon
(25)-6 Locknut (56)-4 Locknut (63)-4
H
M8 Split M8 Fiat
Washer (65)-4 Washer (18)-4
M4 x 16mm M4 x 22mm M4 x 25mm M6 x 16mm Screw
Screw (21)-4 Screw (75)-2 Screw (66)-2 (70)-2
M8 x 19mm Button
Bolt (43)-4
M8 x 25mm Button
Screw (27)-4
M6 x 16mm Hex
Screw (29)-4
MIO x 92mm Carriage Bolt (77)-2
M6 x 38mm Hex
Screw (68)-4
M10 x 105mm Carriage Bolt (74)-2
identify the Front Stabilizer (2), which has Wheels
(59) attached to one side. Attach the Front Stabilizer
to the front of the Frame (1) with two MIO x 92mm
Carriage Bolts (77) and two MIO Nylon Locknuts
(63).
63
59
77
To Next Page
