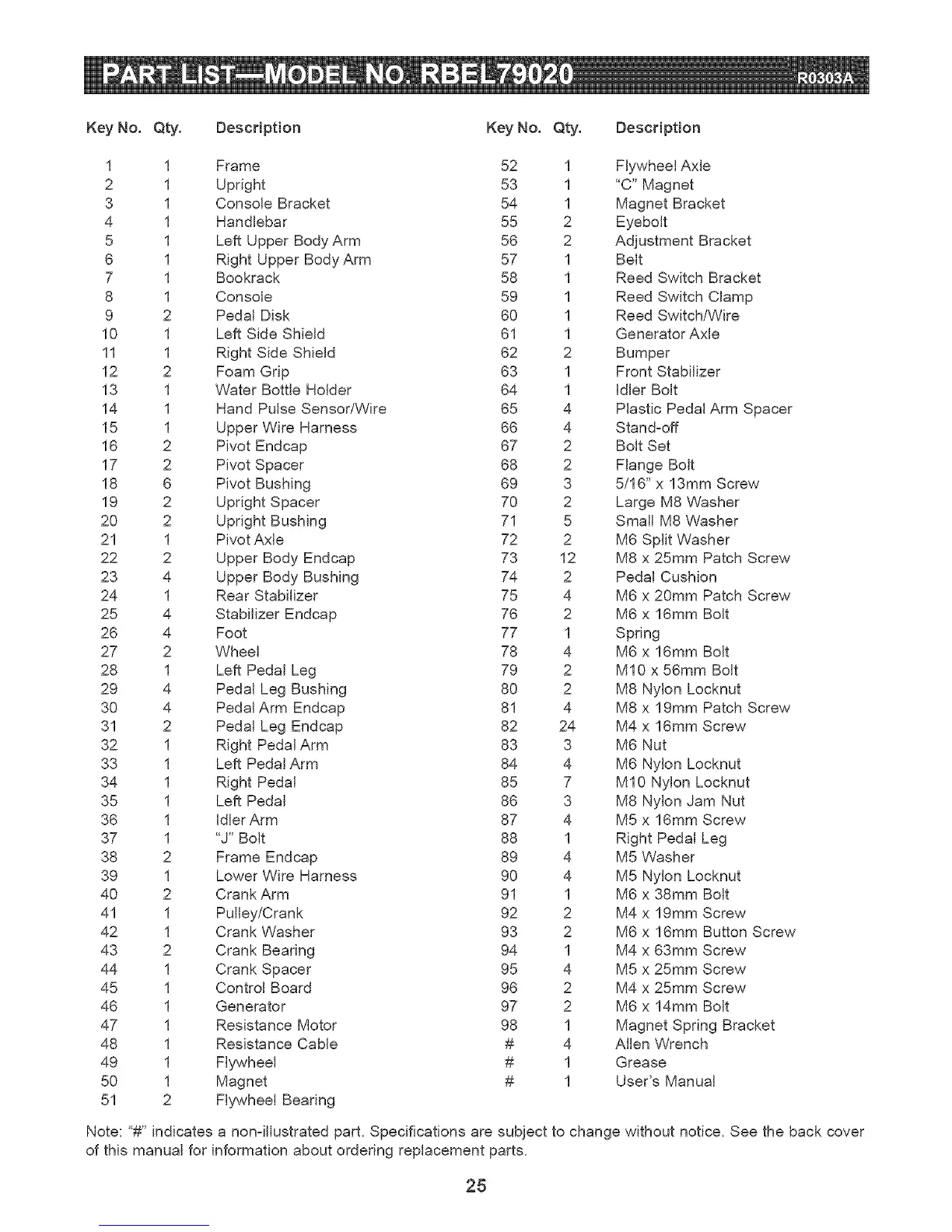

Key No. Qty. Description Key No. Qty. Desctipt{on
1 1 Frame 52 1 Flywheel Axle
2 1 Upright 53 1 "C" Magnet
3 1 Console Bracket 54 1 Magnet Bracket
4 1 Handlebar 55 2 Eyebolt
5 1 Left Upper Body Arm 56 2 Adjustment Bracket
6 1 Right Upper Body Arm 57 1 Belt
7 1 Bookrack 58 1 Reed Switch Bracket
8 1 Console 59 1 Reed Switch Clamp
9 2 Pedal Disk 60 1 Reed Switch/Wire
10 1 Left Side Shield 61 1 Generator Axle
11 1 Right Side Shield 62 2 Bumper
12 2 Foam Grip 63 1 Front Stabilizer
13 1 Water Bottle Holder 64 1 idler Bolt
14 1 Hand Pulse Sensor/Wire 65 4 Plastic Pedal Arm Spacer
15 1 Upper Wire Harness 66 4 Stand-off
16 2 Pivot Endcap 67 2 Bolt Set
17 2 Pivot Spacer 68 2 Flange Bolt
18 6 Pivot Bushing 69 3 5/16" x 13mm Screw
19 2 Upright Spacer 70 2 Large M8 Washer
20 2 Upright Bushing 71 5 Small M8 Washer
21 1 Pivot Axle 72 2 M6 Split Washer
22 2 Upper Body Endcap 73 12 M8 x 25mm Patch Screw
23 4 Upper Body Bushing 74 2 Pedal Cushion
24 1 Rear Stabilizer 75 4 M6 x 20mm Patch Screw
25 4 Stabilizer Endcap 76 2 M6 x 16mm Bolt
26 4 Foot 77 1 Spring
27 2 Wheel 78 4 M6 x 16mm Bolt
28 1 Left Pedal Leg 79 2 MI0 x 56mm Bolt
29 4 Pedal Leg Bushing 80 2 M8 Nylon Locknut
30 4 Pedal Arm Endcap 81 4 M8 x 19mm Patch Screw
31 2 Pedal Leg Endcap 82 24 M4 x 16mm Screw
32 1 Right Pedal Arm 83 3 M6 Nut
33 1 Left Pedal Arm 84 4 M6 Nylon Locknut
34 1 Right Pedal 85 7 MI0 Nylon Locknut
35 1 Left Pedal 86 3 M8 Nylon Jam Nut
36 1 Idler Arm 87 4 M5 x 16mm Screw
37 1 "J" Bolt 88 1 Right Pedal Leg
38 2 Frame Endcap 89 4 M5 Washer
39 1 Lower Wire Harness 90 4 M5 Nylon Locknut
40 2 Crank Arm 91 1 M6 x 38mm Bolt
41 1 Pulley/Crank 92 2 M4 x 19mm Screw
42 1 Crank Washer 93 2 M6 x 16mm Button Screw
43 2 Crank Bearing 94 1 M4 x 63mm Screw
44 1 Crank Spacer 95 4 M5 x 25mm Screw
45 1 Control Board 96 2 M4 x 25mm Screw
46 1 Generator 97 2 M6 x 14mm Bolt
47 1 Resistance Motor 98 1 Magnet Spring Bracket
48 1 Resistance Cable # 4 Allen Wrench
49 1 Flywheel # 1 Grease
50 1 Magnet # 1 User's Manual
51 2 Flywheel Bearing
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
25
