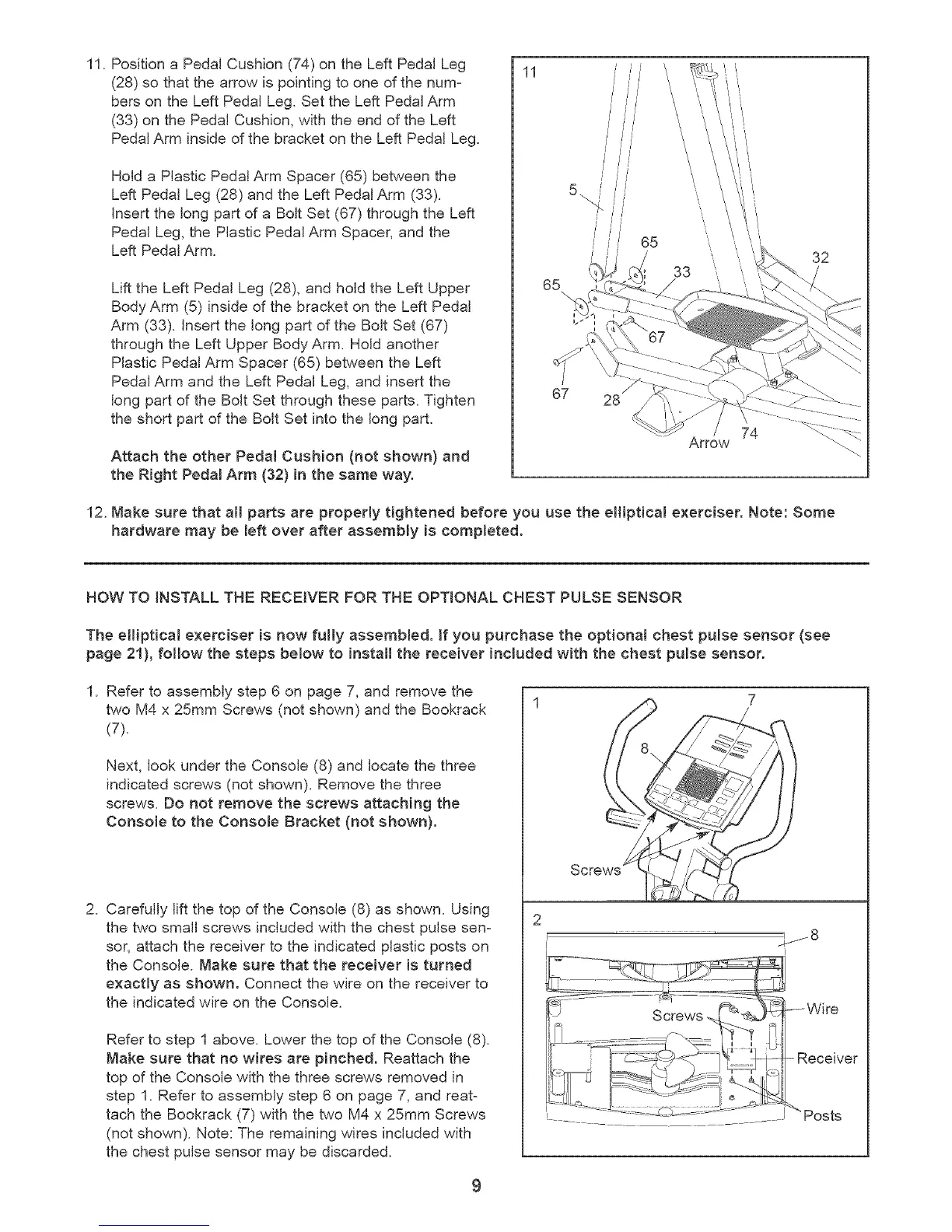

11.Positiona PedalCushion(74)ontheLeftPedalLeg
(28)sothatthearrowispointingtooneofthehum=
betsontheLeftPedalLeg.SettheLeftPedalArm
(33)onthePedalCushion,withtheendoftheLeft
PedalArminsideofthebracketontheLeftPedalLeg.
Holda PlasticPedalArmSpacer(65)betweenthe
LeftPedalLeg(28)andtheLeftPedalArm(33).
insertthelongpartofa BoltSet(67)throughtheLeft
PedalLeg,thePlasticPedalArmSpacer,andthe
LeftPedalArm.
LifttheLeftPedalLeg(28),andholdtheLeftUpper
BodyArm(5)insideofthebracketontheLeftPedal
Arm(33).insertthelongpartoftheBoltSet(67)
throughtheLeftUpperBodyArm.Holdanother
PlasticPedalArmSpacer(65)betweentheLeft
PedalArmandtheLeftPedalLeg,andinsertthe
longpartoftheBoltSetthroughtheseparts.Tighten
theshortpartoftheBoltSetintothelongpart.
AttachtheotherPedalCushion(notshown)and
theRightPedalArm(32)in thesameway.
11
65
67
65
28
Arrow
32
74 ......
12. Make sure that alt parts are properly tightened before you use the elliptical exerciser. Note: Some
hardware may be left over after assembly is comp{eted.
HOW TO INSTALL THE RECEWER FOR THE OPTIONAL CHEST PULSE SENSOR
The emHptical exerciser is now fully assembled, if you purchase the optionam chest pulse sensor (see
page 21), follow the steps below to install the receiver included with the chest pulse sensor.
1. Refer to assembly step 6 on page 7, and remove the
two M4 x 25mm Screws (not shown) and the Bookrack
(7).
Next, look under the Console (8) and locate the three
indicated screws (not shown). Remove the three
screws. Do not remove the screws attaching the
Console to the Console Bracket (not shown).
2. Carefully lift the top of the Console (8) as shown. Using
the two small screws included with the chest pulse sen=
sot, attach the receiver to the indicated plastic posts on
the Console. Make sure that the receiver is turned
exactly as shown. Connect the wire on the receiver to
the indicated wire on the Console.
Refer to step 1 above. Lower the top of the Console (8).
Make sure that no wires are pinched. Reattach the
top of the Console with the three screws removed in
step 1. Refer to assembly step 6 on page 7, and teat=
tach the Bookrack (7) with the two M4 x 25mm Screws
(not shown). Note: The remaining wires included with
the chest pulse sensor may be discarded.
._jl 8
[
--Wire
- Receiver
.... ,_" Posts
