5
Place all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of
the packing materials until assembly is completed.
In addition to the included tools, assembly requires an adjustable wrench and a rubber
mallet .

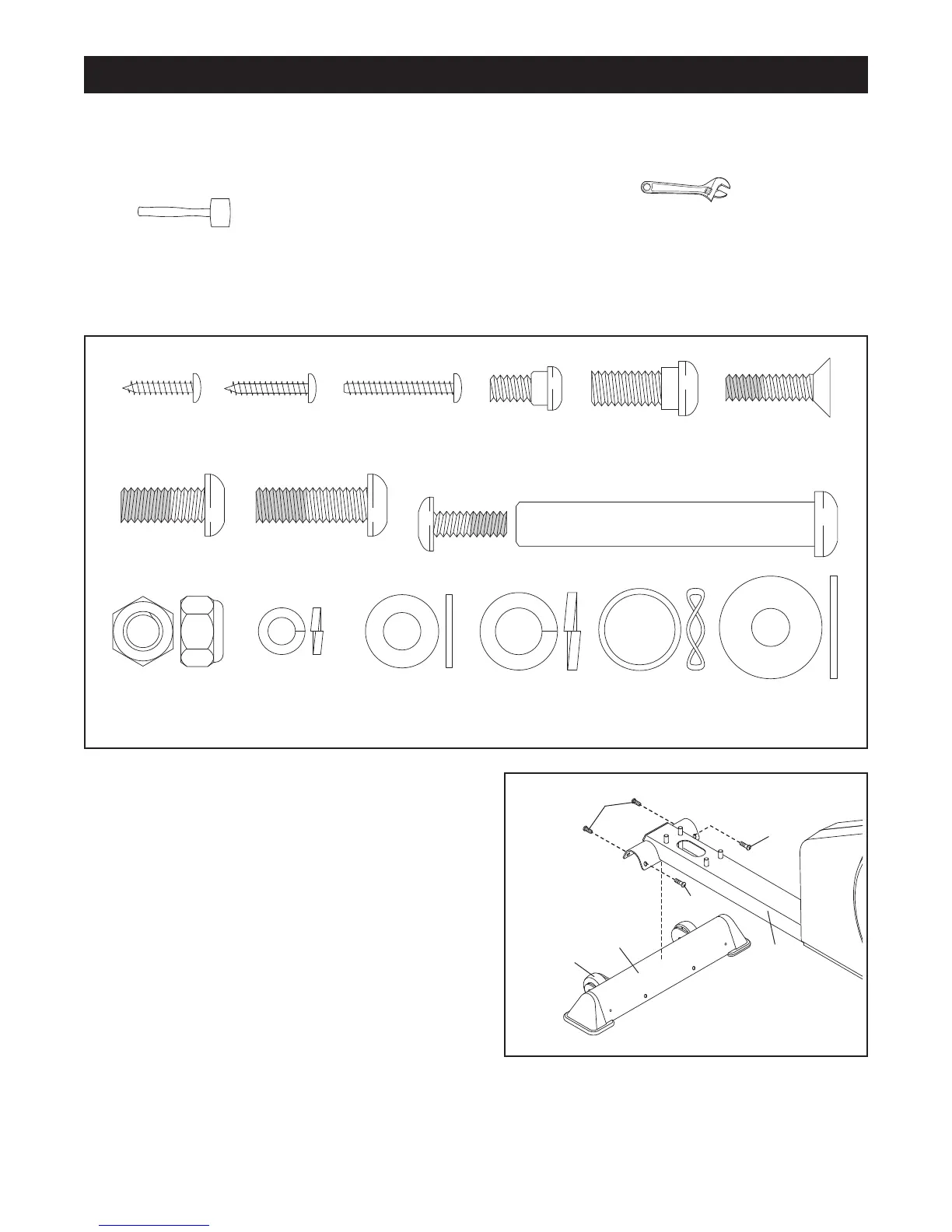

See the drawings below to identify the small parts needed for assembly. The number in parenthesis below
each drawing is the key number of the part, from the PART LIST on page 25; the number following the key
number is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a
part is not found in the parts bag, check to see if it has been pre-assembled.
ASSEMBLY
M4 x 16mm
Screw (82)–6
M4 x 22mm
Screw (92)–2
M4 x 25mm
Screw (69)–2
M8 x 25mm Patch
Screw (73)–10
M8 x 19mm Patch
Screw (81)–4
M6 x 20mm Patch
Screw (75)–4
M6 Split
Washer (72)–2
Small M8
Washer (71)–2
Large M8
Washer (70)–2
M10 Nylon
Locknut (85)–4
Bolt Set (67)–2
M10 Split
Washer (87)–4
Wave Washer
(91)–2
M6 x 13mm
Shoulder
Screw (93)–2
M8 x 19mm
Shoulder
Screw (86)–2
1. Identify the Front Stabilizer (63), which has Wheels
(27) attached to one side. Attach the Front Stabilizer
to the front of the Frame (1) with four M8 x 25mm
Patch Screws (73).
1
27
63
73
73
73
1
