7

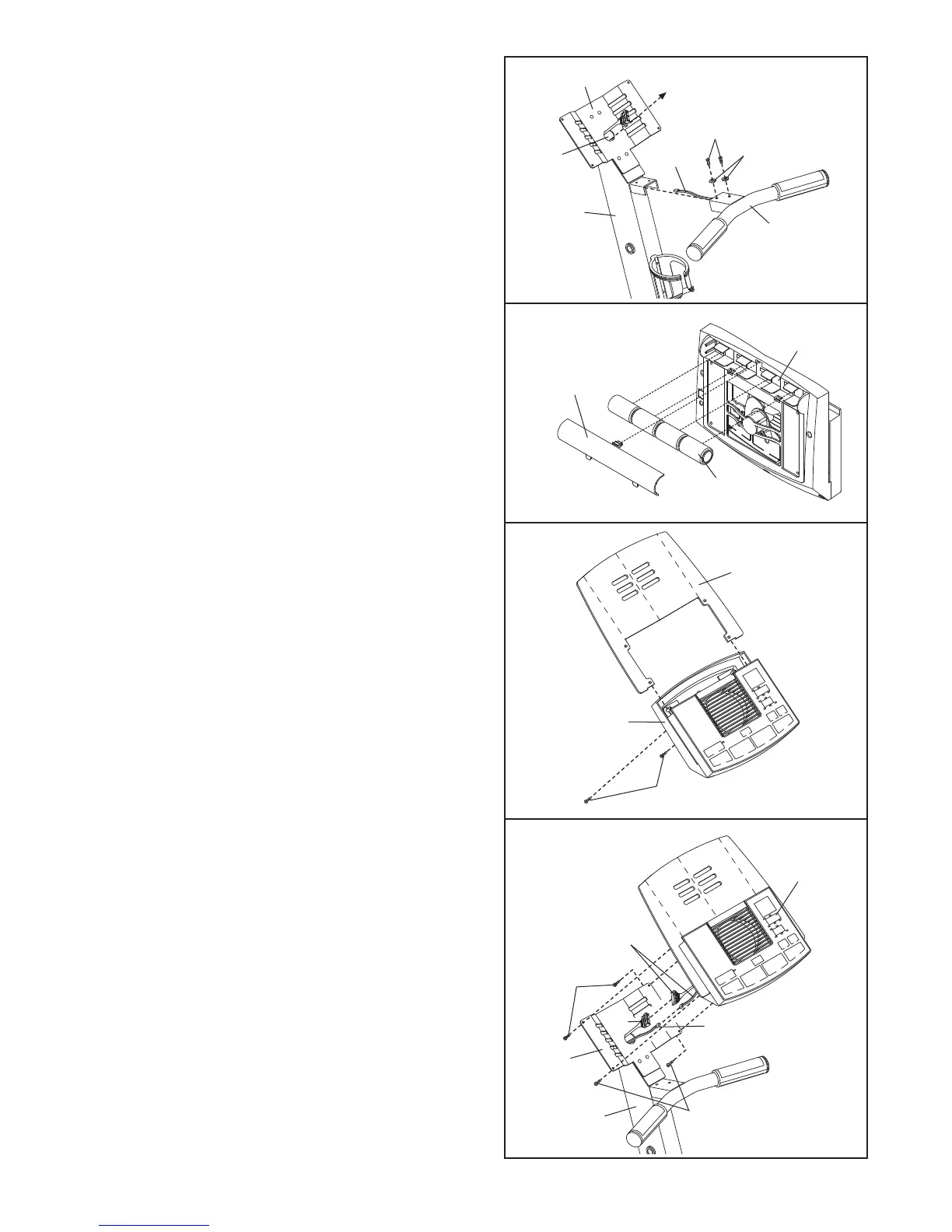

5. While another person holds the Handlebar (4) near
the Upright (2), feed the Pulse Sensor Wire (14) into
the Upright and out of the indicated hole in the
Console Bracket (3). Attach the Handlebar to the
Upright with two M6 x 13mm Shoulder Screws (93)
and two M6 Split Washers (72).
Be careful to
avoid pinching and damaging the Pulse Sensor
Wire.
6. The Console (8) requires four “D” batteries (not
included); alkaline batteries are recommended.
Press the indicated tab on the battery cover and
remove the cover. Press four batteries into the bat-
tery clips;
make sure that the batteries are orient-
ed as shown by the markings inside of the bat-
tery clips. Then, reattach the battery cover.
7. Insert the Bookrack (7) into the slots in the Console
(8). Attach the Bookrack to the Console with two M4
x 25mm Screws (69). Be careful to avoid pinching
and damaging the wires in the Console.
7
69
8
5
7
8. While another person holds the Console (8) near
the Console Bracket (3), connect the Pulse Sensor
Wire (14) and the Upper Wire Harness (15) to the
corresponding wires on the Console.
Insert all excess wiring down into the Upright
(2). Attach the Console (8) to the Console Bracket
(3) with four M4 x 16mm Screws (82). Be careful to
avoid pinching and damaging the Pulse Sensor
Wire (14) and the Upper Wire Harness (15).
3
2
Console
Wires
8
82
82
8
Hole
4
2
3
14
93
72
14
15
8
Battery
Cover
Batteries
6
To Next Page
