T3.2 Treadmill
28
Customer Support 0800 440 2459 T3.2 Treadmill
29
reebokfitness.info
Parts ID

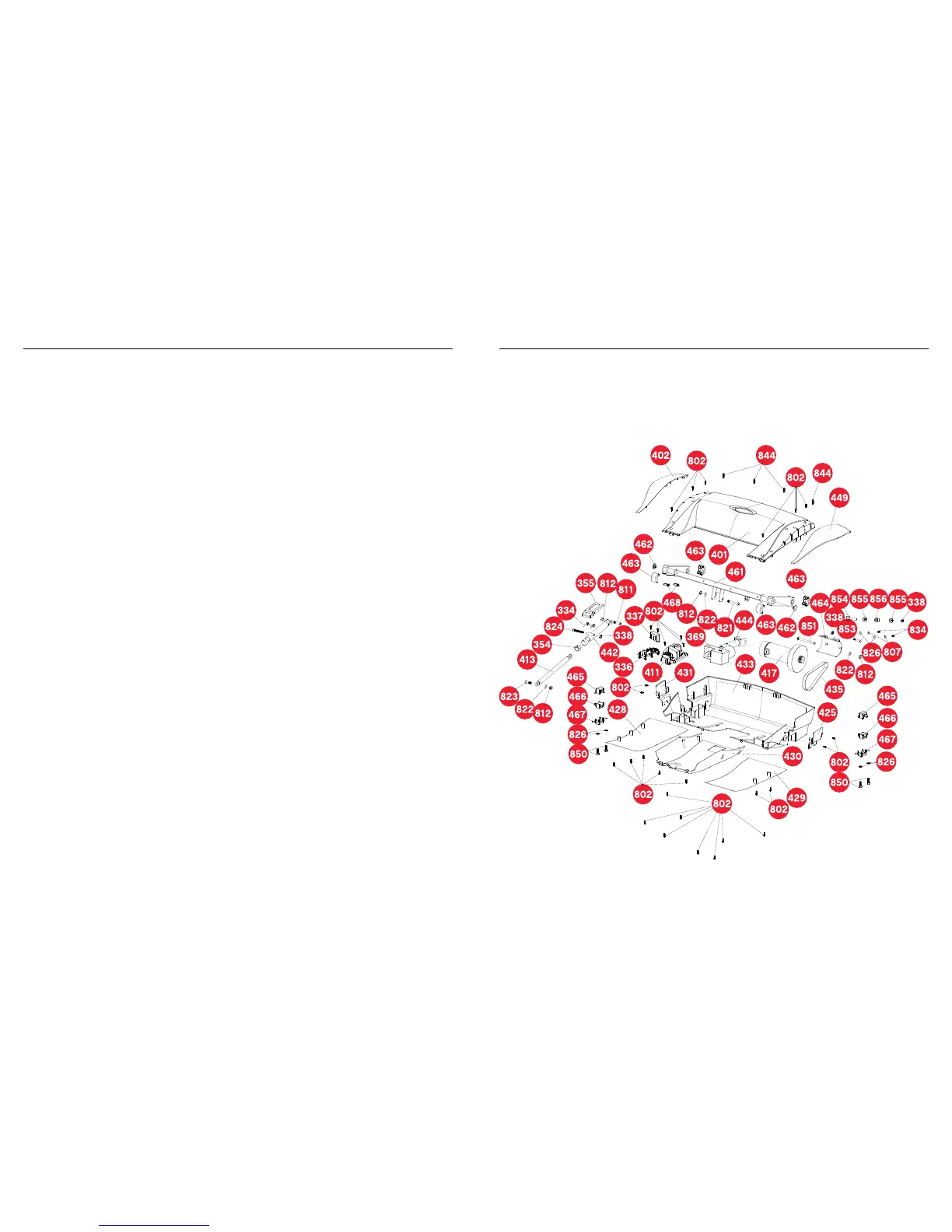

Diagram 1
T32-401 Motor Hood x 1
T32-402 Motor Hood Decorate Cover - Left x 1
T32-449 Motor Hood Decorate Cover - Right x 1
T32-461 Elevation Support Tube x 1
T32-462 Ø22 Round End Cap x 2
T32-463 20x26x46 End Cap x 2
T32-369 Incline Motor x 1
T32-444 Incline Motor Sleeve x 1
T32-337 Transformer x 1
T32-336 Relay Board x 1
T32-411 Control Board x 1
T32-442 Soft Drop Shock Holder x 1
T32-413 Soft Drop Shock x 1
T32-355 Soft Drop Locker x 1
T32-334 Soft Drop Locker Spring x 1
T32-354 22.5x28.2x22 Nylon Brushing x 1
T32-417 DC Motor x 1
T32-435 220J-6 Driving Belt x 1
T32-464 Motor Holder x 1
T32-433 Motor Cover - Lower x 1
T32-431 Side Decorate Cover - Left x 1
T32-425 Side Decorate Cover - Right x 1
T32-430 Elevation Motor Cover x 1
T32-465 25.6x29.5x41.6xR17 Cover - Upper x 2
T32-466 25.6x25x41.6xR17 Cover - Lower x 1
T32-467 Elevation Support Tube Fix Holder x 1
T32-468 54x24x10 Power Cable Cover x 1
T32-428 Elevation Motor Cover - Left x 1
T32-429 Elevation Motor Cover - Right x 1
T32-802 M4x15 Screw x 6
T32-807 8x14x2 Spring Washer x 6
T32-811 M10x40 Allen Bolt x 3
T32-812 M10 Nylon Nut x 7
T32-821 M10x67 Allen Bolt x 1
T32-822 10.5x20x2 Washer x 3
T32-823 M10x33 Allen Bolt x 1
T32-824 M8x65 Allen Bolt x 1
T32-338 M8 Nylon Nut x 3
T32-826 8.5x16.5x1.5 Washer x 6
T32-850 M8x20 Allen Screw x 4
T32-851 M10x115 Bolt x 1
T32-853 M8x48 Bolt x 1
T32-854 M8x85x20 Motor Holder Fix Bolt x 1
T32-855 9x35x8 Curve Washer x 2
T32-856 8x26x11 PU Cushion x 1
T32-834 M8x14 Screw x 2
T32-844 Plastic Insert x 4
