Parts ID

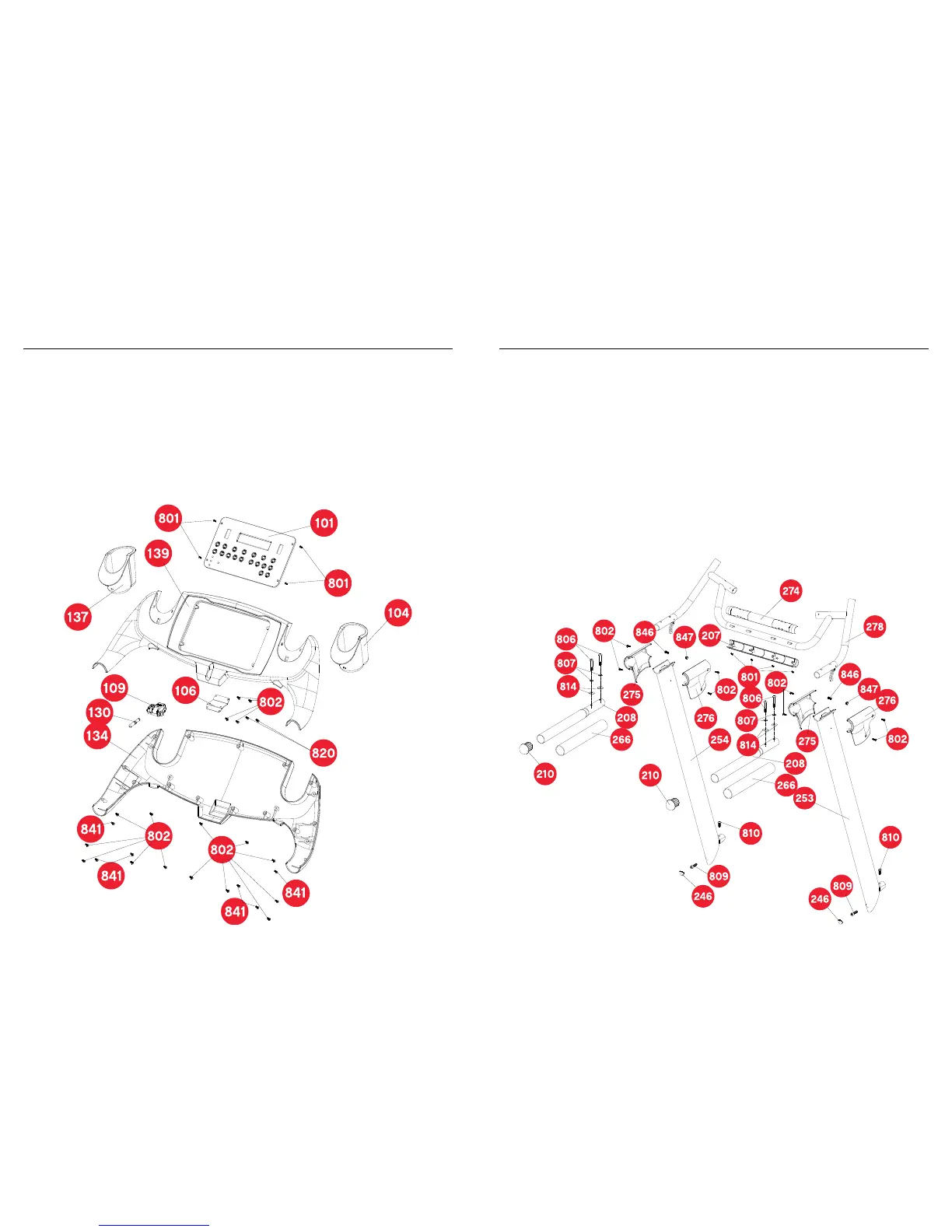

Diagram 2
T32-101 Computer x 1
T32-139 Console Housing Upper x 1
T32-137 Water bottle holder-left x 1
T32-104 Water bottle holder-right x 1
T32-134 Console Housing Lower x 1
T32-106 Safety Key Base Holder x 1
T32-109 Safety Key Base x 1
T32-130 Safety Key X 1
T32-801 M3x14 x 14
T32-802 M4x15 x 65
T32-841 M4x16 x 6
T32-820 M4.2x11 x 4
Diagram 3
T32-278 Console Support Frame x 1
T32-254 Upright - Left x 1
T32-253 Upright - Right x 1
T32-275 Handlebar Cover - Left x 2
T32-276 Handlebar Cover - Right x 2
T32-274 Hand Pulse Sensor Cover - Upper x 1
T32-207 Hand Pulse Sensor Cover - Lower x 1
T32-208 Handlebar x 2
T32-266 OD36-37x3x3D5MM Foam Grip x 2
T32-210 OD38.1 Handlebar End Cap x 2
T32-246 Upright Fix Bolt Cap x 2
T32-801 M3x14 Screw x 14
T32-802 M4x15 Screw x 65
T32-846 M6x15 Screw x 2
T32-847 M6 Nut x 2
T32-806 M8x45 Bolt x 4
T32-807 8x14x2 Spring Washer x 6
T32-814 8x20.5x2 Curve Washer x 4
T32-809 M8x30 Allen Bolt x 2
T32-810 M8x18 Allen Bolt x 2
