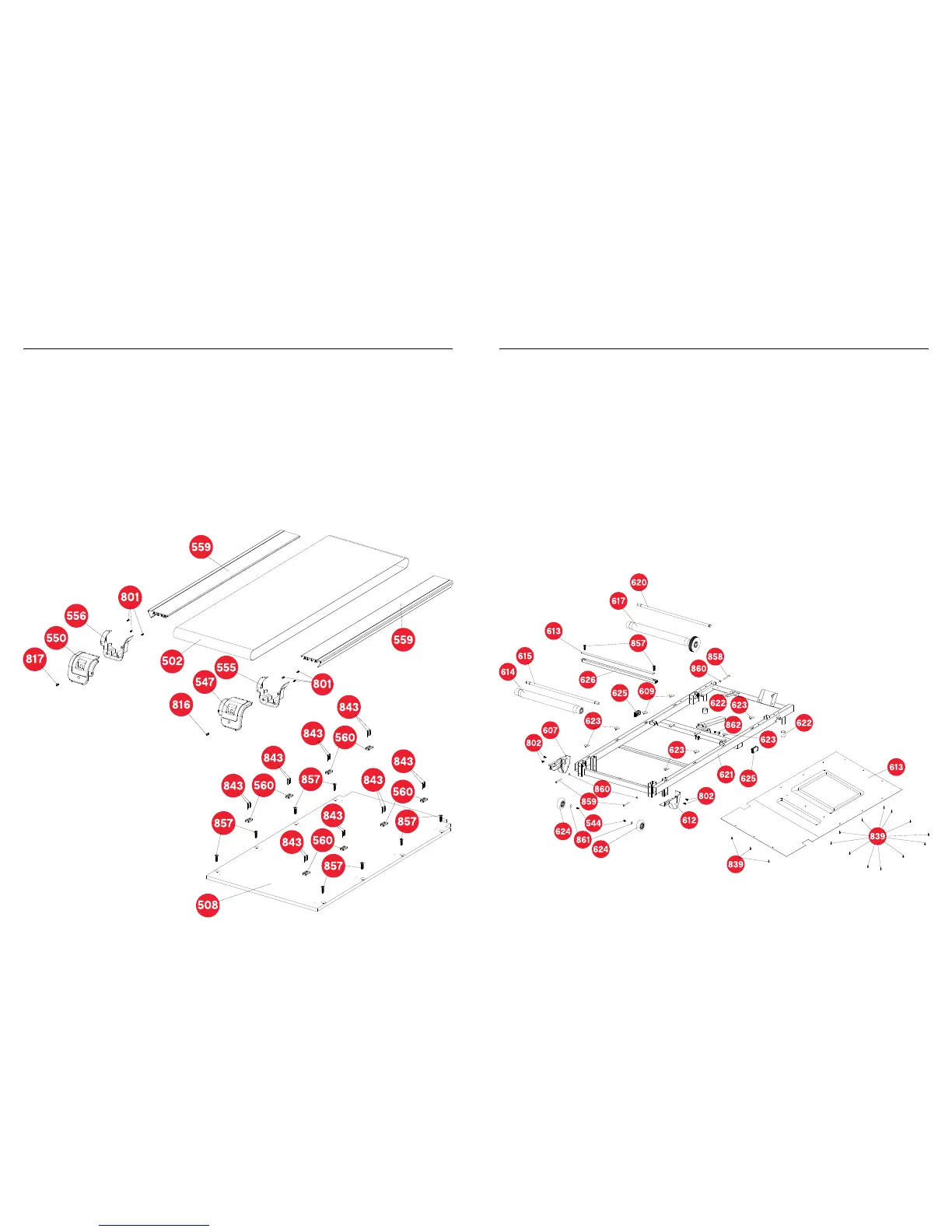

Diagram 4
T32-559 L-1100MM Side Rail x 2
T32-502 445x2668x1.6 Running Belt x 1
T32-556 Left Rear End Cap - Inside x 1
T32-555 Right Rear End Cap - Inside x 1
T32-550 Left Rear End Cap - Outer x 1
T32-547 Right Rear End Cap - Outer x 1
T32-560 9.2x17x32 Side Rail Guider x 8
T32-508 1170x642x16 (TR310) Running Deck x 1
T32-621 Main Frame x 1
T32-620 Front Roller Shaft x 1
T32-617 Front Roller x 1
T32-615 Rear Roller Shaft x 1
T32-614 Rear Roller x 1
T32-622 OD30x25 Frame Crash Cushion x 1
T32-607 Rear Transport Wheel Cover - Left x 1
T32-612 Rear Transport wheel cover-right x 2
T32-623 OD30xID9xT2.0 Cushion x 1
T32-624 ID15xOD75x34 Transport Wheel x 1
T32-625 50x30 End Cover x 1
T32-626 Main Frame Cross Bar x 1
T32-613 ABS Frame Lower Cover x 1
T32-843 M4x19 Screw x 16
T32-857 M8x30 Screw x 10
T32-858 M6x65 Allen Screw x 1
T32-859 M6x55 Allen Screw x 2
T32-860 6.5x12.6x1.25 Screw x 3
T32-544 M6x10 Screw x 2
T32-861 6.4x18x1.5 Washer x 2
T32-862 M10x32 Cap Head Bolt x 1
T32-839 M4x12 Screw x 15
