INSTRUMENTS

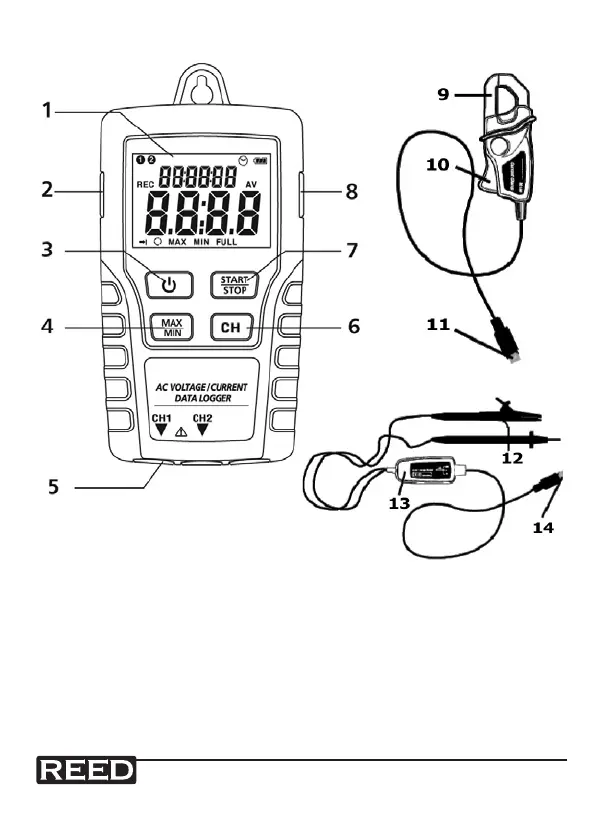

Meter Description
1. LCD screen
2. AC adaptor jack
3. ON/OFF button
4. MAX/MIN button
5. Channel input jacks
6. Channel display button
7. START/STOP button
8. USB port
9. AC current clamp jaw
10. Jaw opening trigger
11. CH plug
12. AC voltage probes/alligator clips
13. Voltage module
14. Channel plug
