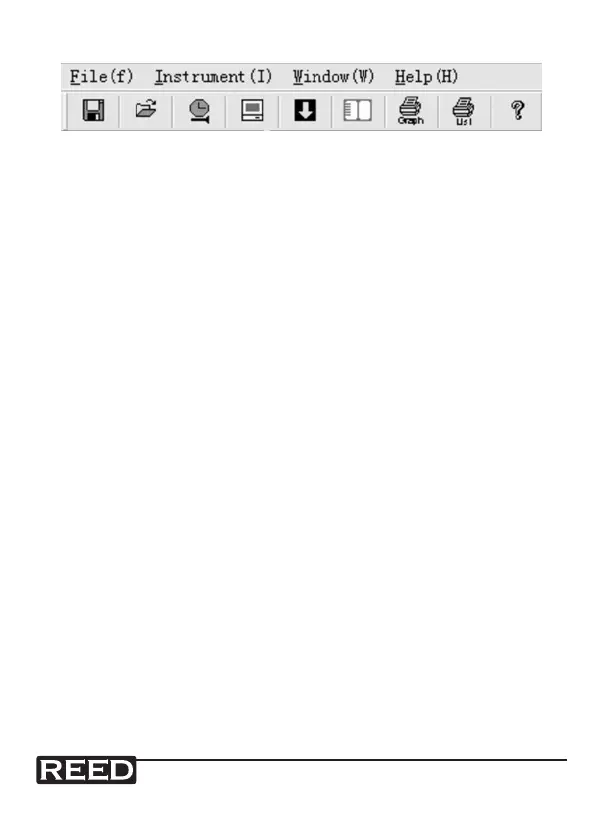

Main Menu Description
File
Save - Save the recorded data to the computer
Open - Open a saved le
Print Setup - Change the printer and printing options
Print Preview - Print preview the graph or the list
Print - Print the graph or the list
Instrument
Correct Time - Correct the datalogger TIME
Datalogger Setup - Setup the datalogger RMS sampling rate, auto
power off, and circulate logging
Download Store Data - Download the data which is stored
in the meter
Read Real Time Data - PC from meter
Stop Reading - PC stop reading data from the datalogger
Import Data To List - Show the data as a list
Previous Measurement - Check the data from last measurement
Note: After the data is downloaded to a PC, the software will
overwrite the old data with the new data, resulting in only one
previous result. With this in mind, saving every entry is ideal.
Window
Instrument - Show or hide the instrument window
Info Dialog - Show or hide the info dialog window
Help
About - Show the version information of the datalogger software
Help Topics - Show the software help document
