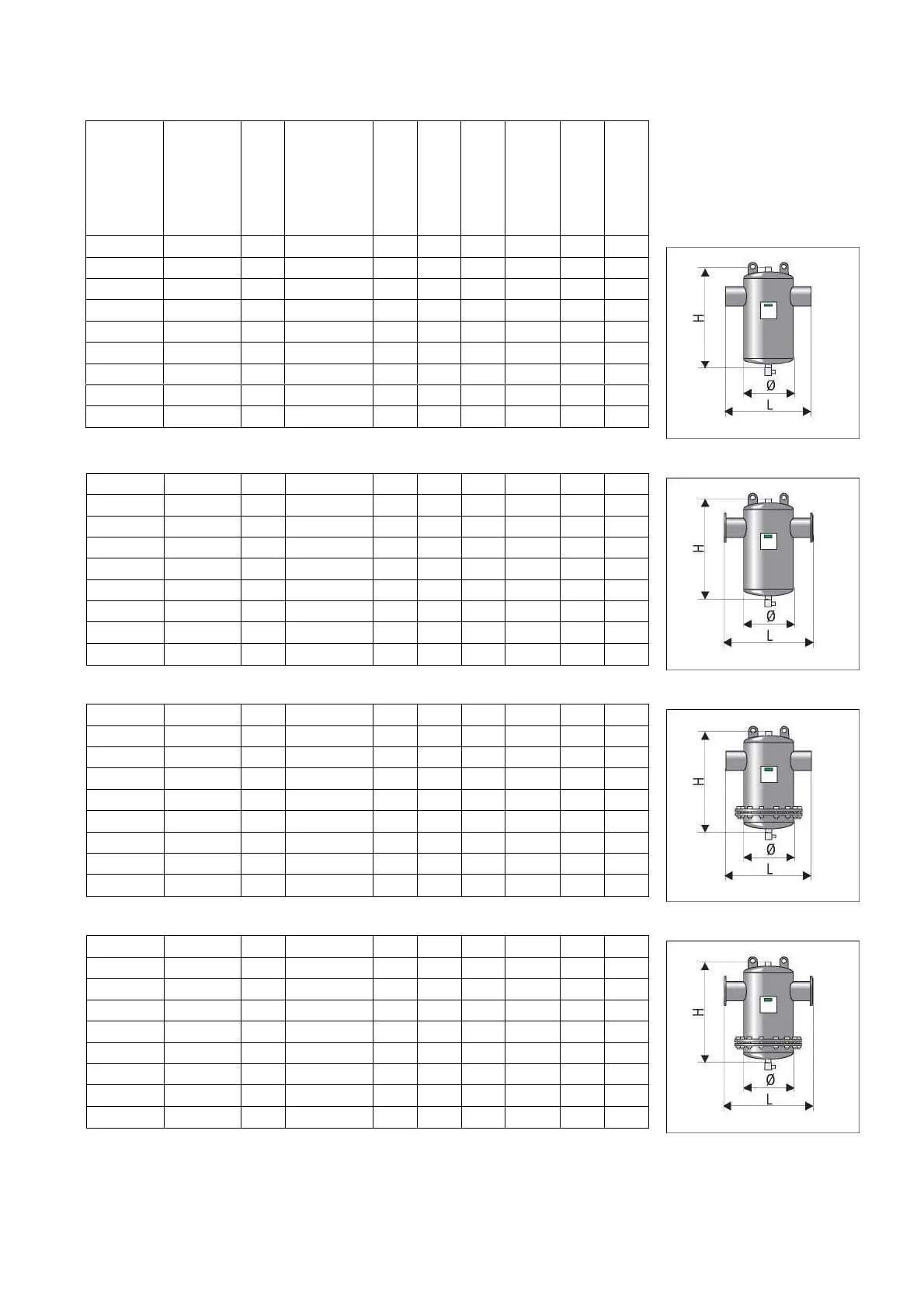

Tekniska data
8 — Svenska Reflex ex-avskiljare —
3.2 Exdirt
Stal med svetsanslutning
o.
Art.nr
Vikt (kg)
Anslutning (mm)
E,
я
>
E
L (mm)
0 (mm)
H (mm)
Max. temp.
(°C)
Max. tryck (bar)
D 60.3
8252100
9
60,3
12,5
260
132
469
110
10
D 76.1
8252110
9
76,1
20
260
132
469
110
10
D 88.9
8252120
17
88,9
27
370
206
583
110
10
D 114.3
8252130
17
114,3
47
370
206
583
110
10
D 139.7
8252140
41
139,7
72
525
354
607
110
10
D 168.3
8252150
42
168,3
108
525
354
607
110
10
D 219.1
8252160
83
219,1
180
650
409
890
110
10
D 273.0
8252170
135
273,0
288
750
480
997
110
10
D 323.9
8252180
200
323,9
405
850
634
1266
110
10
Stal med flänsanslutning
D 50
8252300
13
DN50/PN16
12,5
350
132
469
110
10
D 65
8252310
15
DN65/PN16
20
350
132
469
110
10
D 80
8252320
25
DN80/PN16
27
470
206
583
110
10
D 100
8252330
26
DN100/PN16
47
470
206
583
110
10
D 125
8252340
54
DN125/PN16
72
635
354
607
110
10
D 150
8252350
56
DN150/PN16
108
635
354
607
110
10
D 200
8252360
105
DN200/PN16
180
775
409
890
110
10
D 250
8252370
170
DN250/PN16
288
890
480
997
110
10
D 300
8252380
250
DN300/PN16
405
1005
634
1266
110
10
Stal med svetsanslutning, inspektionsfläns
D 60.3 R
8252200
23
60,3
12,5
260
132
469
110
10
D 76.1 R
8252210
23
76,1
20
260
132
469
110
10
D 88.9 R
8252220
36
88,9
27
370
206
583
110
10
D 114.3 R
8252230
37
114,3
47
370
206
583
110
10
D 139.7 R
8252240
85
139,7
72
525
354
607
110
10
D 168.3 R
8252250
86
168,3
108
525
354
607
110
10
D 219.1 R
8252260
129
219,1
180
650
409
890
110
10
D 273.0 R
8252270
230
273,0
288
750
480
997
110
10
D 323.9 R
8252280
340
323,9
405
850
634
1266
110
10
Stal med flänsanslutning, inspektionsfläns
D 50 R
8252400
28
DN50/PN16
12,5
350
132
469
110
10
D 65 R
8252410
29
DN65/PN16
20
350
132
469
110
10
D 80 R
8252420
44
DN80/PN16
27
470
206
583
110
10
D 100 R
8252430
46
DN100/PN16
47
470
206
583
110
10
D 125 R
8252440
98
DN125/PN16
72
635
354
607
110
10
D 150 R
8252450
100
DN150/PN16
108
635
354
607
110
10
D 200 R
8252460
151
DN200/PN16
180
775
409
890
110
10
D 250 R
8252470
265
DN250/PN16
288
890
480
997
110
10
D 300 R
8252480
390
DN300/PN16
405
1005
634
1266
110
10
