Register New Zeroing
Note, if a New Zeroing value is registered, the
Stored Zeroing value is replaced.
6. a) If there is a Stored Zeroing value that can be
used for this survey, continue to step 9 below.

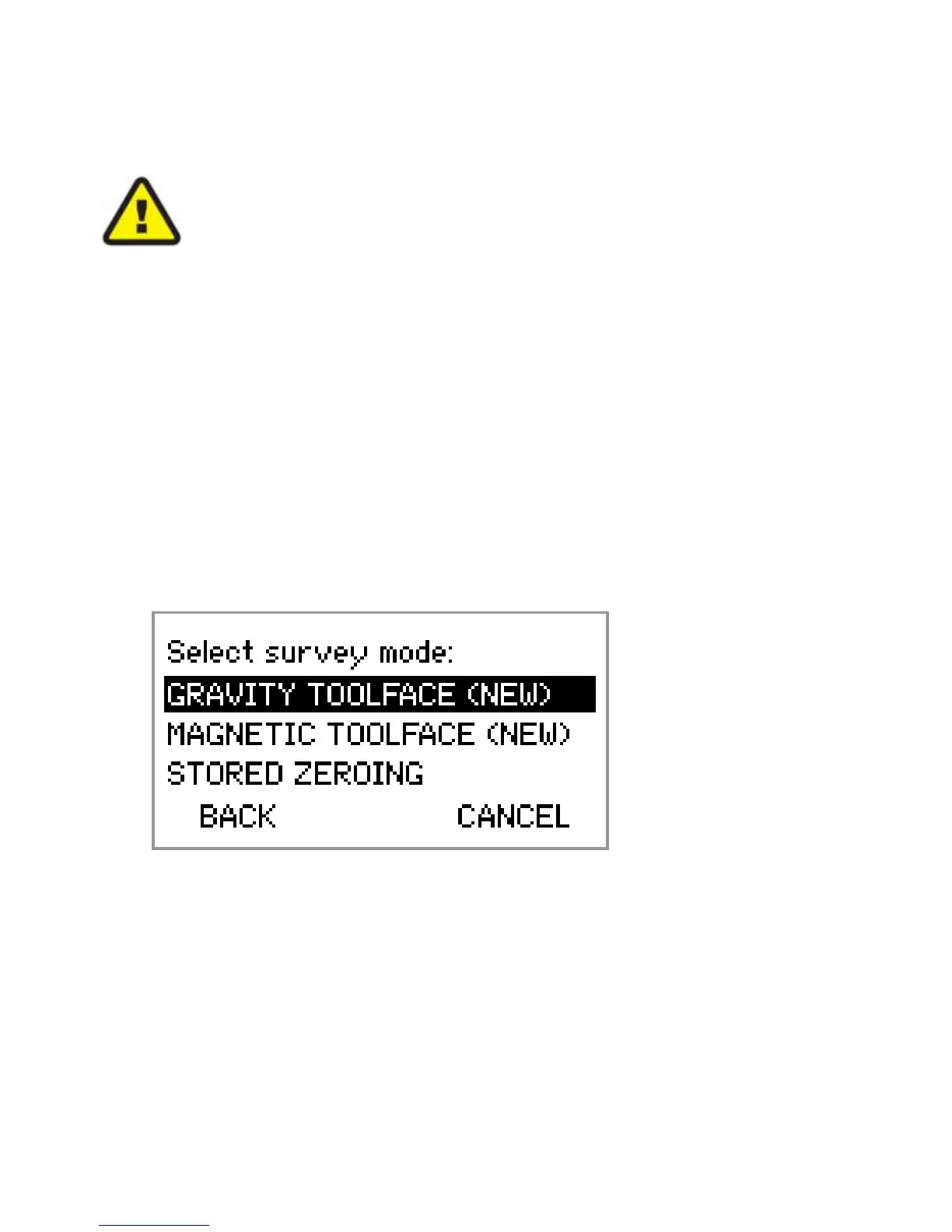

b) To register a new Zeroing value, highlight
GRAVITY TOOLFACE - if orientating angled
holes - and press OK.
Note: The Stored Zeroing value will be replaced by
a new value if GRAVITY or MAGNETIC TOOLFACE
is selected.
7. Insert the instrument that is connected to the
Muleshoe into the Orientation Sleeve and ensure that
the Muleshoe lead has contacted the orientation pin.
Note: Wedge ‘Run Off’ or ‘Bent Sub’ of Motor should
be pointing straight up to TDC (Top Dead Center)/12
o’clock high. This is the zeroing position.
13
