REFUsol 20K-2T (853P020.200)
User manual
Product Dimensions
The choice of optional parts of inverter should be made by a qualified
technician who knows the installation conditions clearly.
Dimensions Description
L
×
W
×
H=520*430*189mm

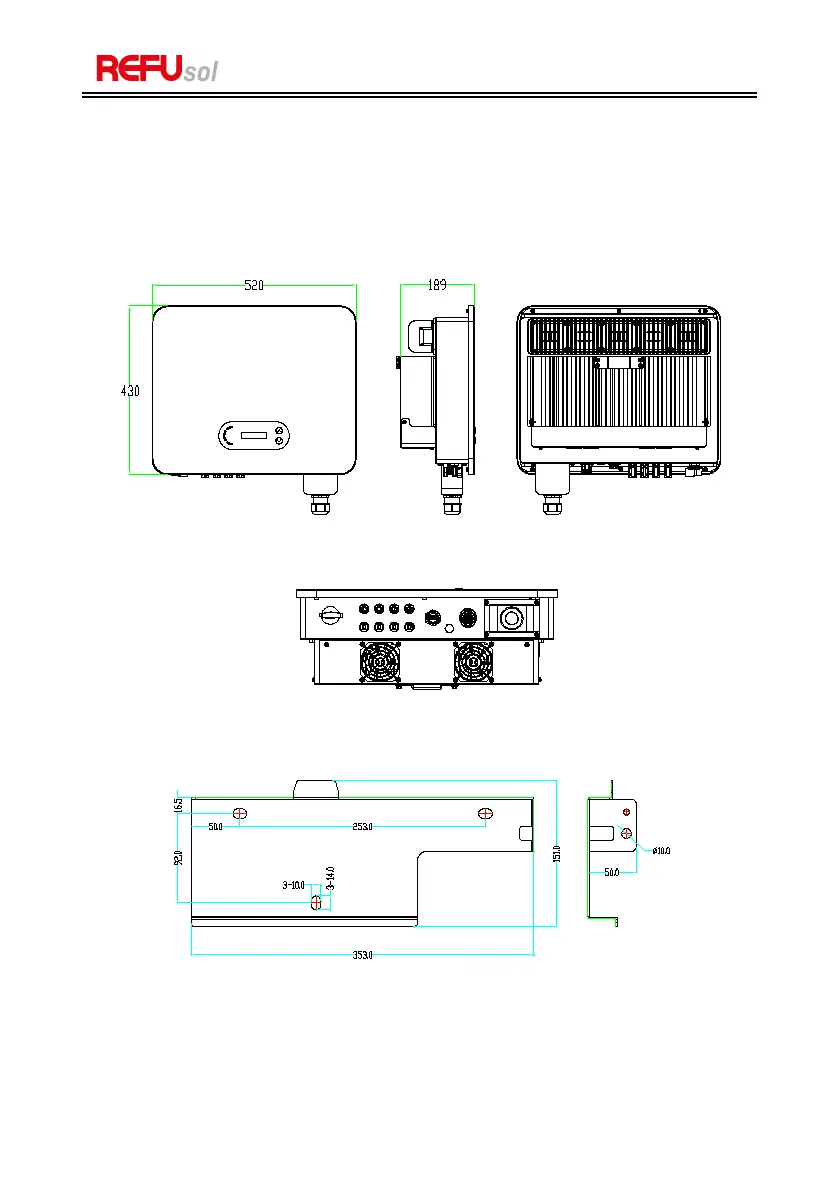

Figure 2-3 Front, side and back of the inverter
Figure 2-4a Bottom view
Note: REFUsol 20K-2T supports 4-channel PV string input.
Figure 2-5 bracket dimensions
