Inverter is heavy, attention to keep the balance when lift the
inverter. Dropped while being transported may cause injuries.
Do not put the inverter with wiring terminals contacting the floor
because the power ports and signal ports are not designed to
support the weight of the inverter.
When place inverter on the floor, put it above foam or paper to
avoid the damage of the shell of inverter.
4.6. Installation
Step 1: Placed the rear panel on the mounting wall, determine the mounting
height of the bracket and mark the mounting poles accordingly. Drilling holes by
using Hammer Drill, keep the hammer drill perpendicular to the wall and make
sure the position of the holes should be suitable for the expansion bolts.
Step 2: Insert the expansion bolt vertically into the hole.
Step 3: Align the rear panel with the hole positions, fix the rear panels on the wall
by tightening the M8*80 Hexagon screws.

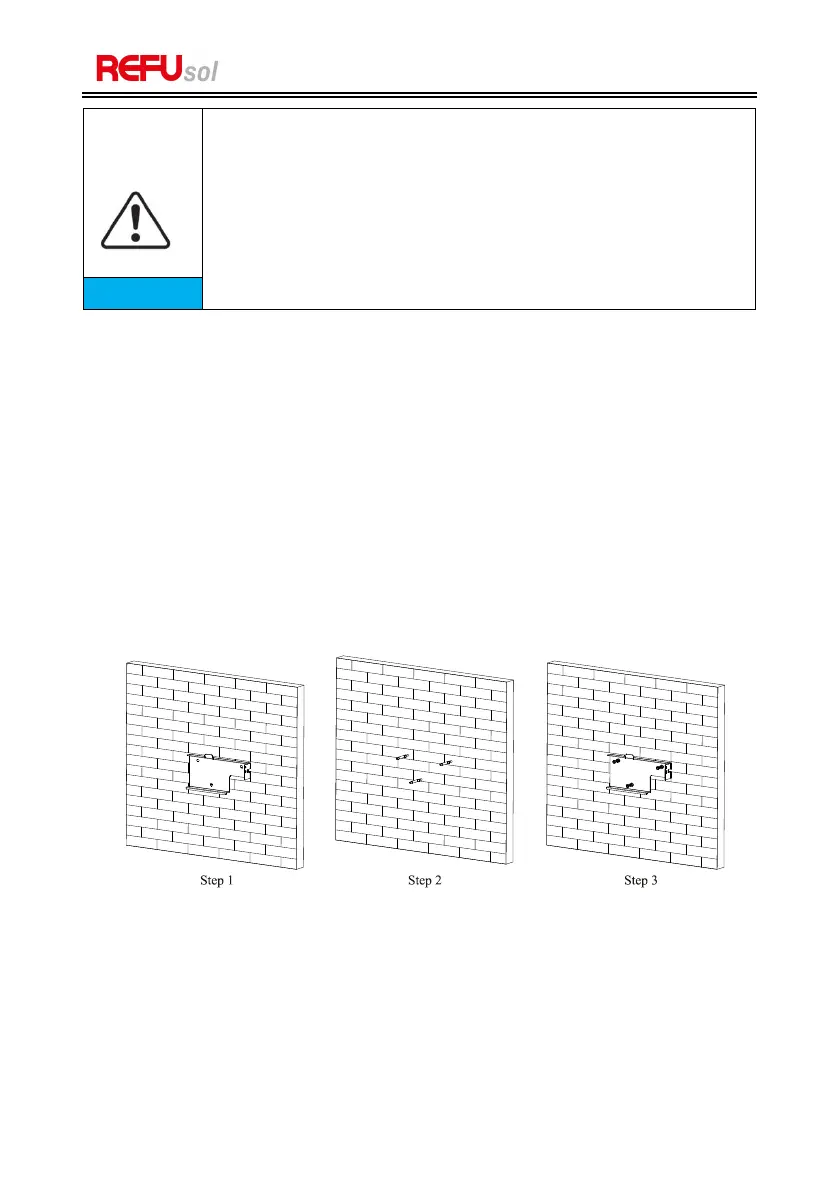

Figure 4-6 Installation instruction (1)
Step 4
：
Lift the inverter and hang it on the rear panel and fixing both side of
inverter with M6 screw (accessories).
