REFUSOL 20K-2T - Connect PV Side (DC-Input)

REFUsol 20K-2T (853P020.200)
User manual
- 30 -

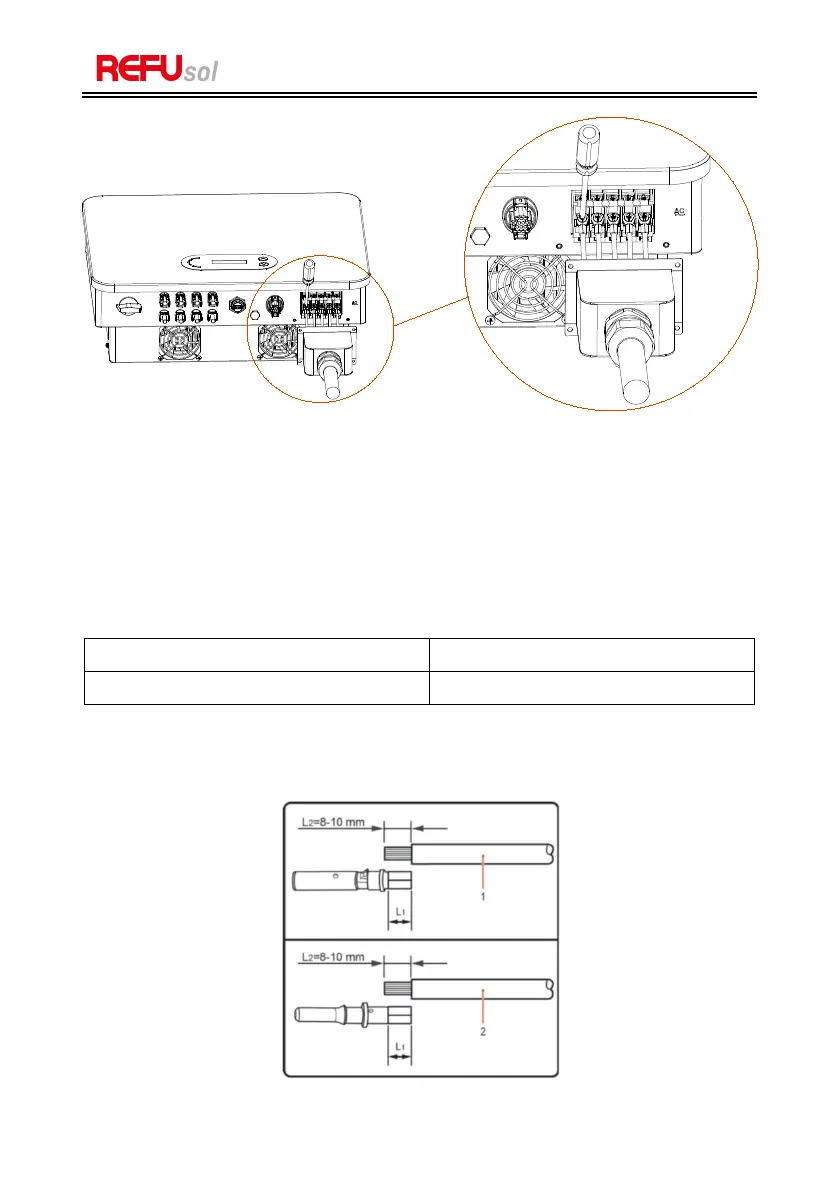

Figure 5-10 AC cable connection instruction diagram (2)
5.4. Connect PV side of inverter (DC-Input)
Table 5-2 recommend DC input cable size (maximum tolerance voltage >= 1100V
PV cable)
Copper cable cross section area
（
mm
2
）
Cable OD (mm)
2.5~6.0
6.0~9.0
Table 5-2: Recommend DC cable size.
Step1: Find the metal contact pins in the accessories bag, connect the cable
according below diagram (1. Positive cable, 2. negative cable)；
