REFUsol 20K-2T (853P020.200)
User manual
- 42 -
Inverter working status, grid voltage and frequency
Inverter working status, USB status
Inverter faulty alarm

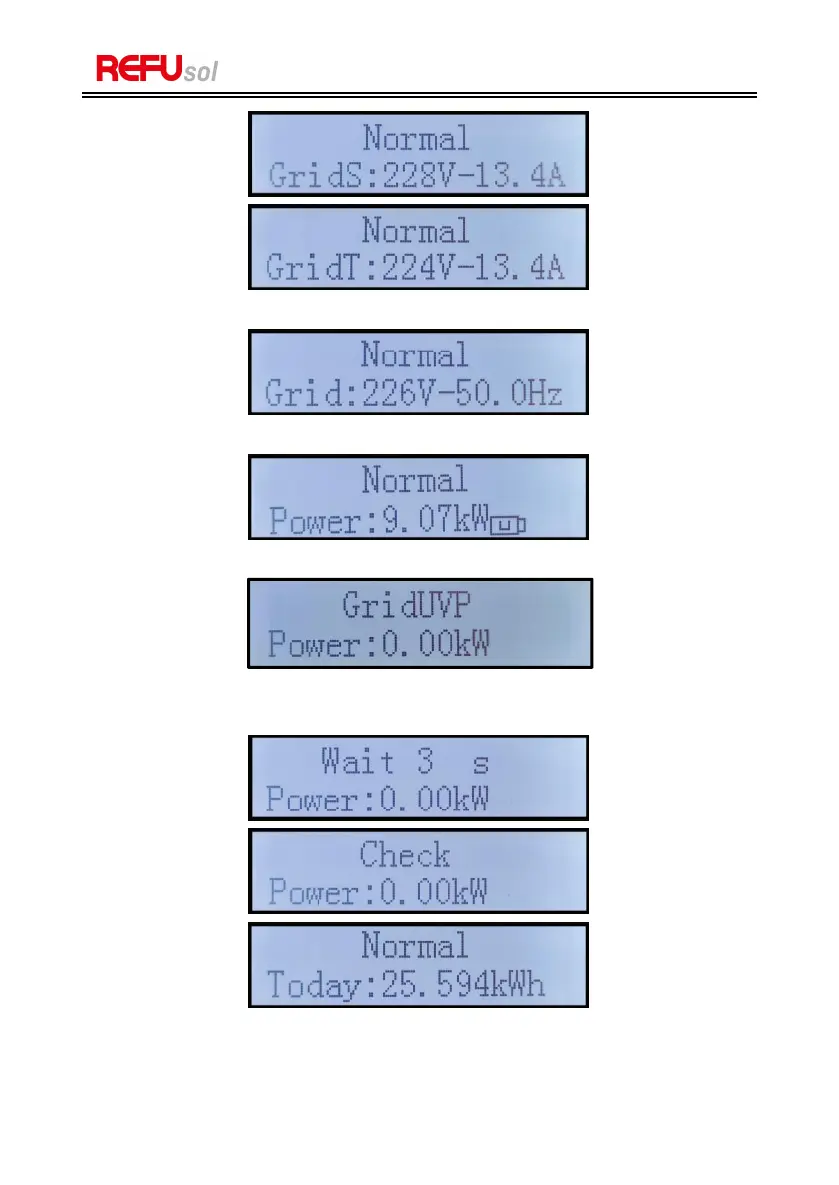

When control board successfully connected with communication board, the
LCD display the current state of the inverter
，
display as shown in the figure below.
