06

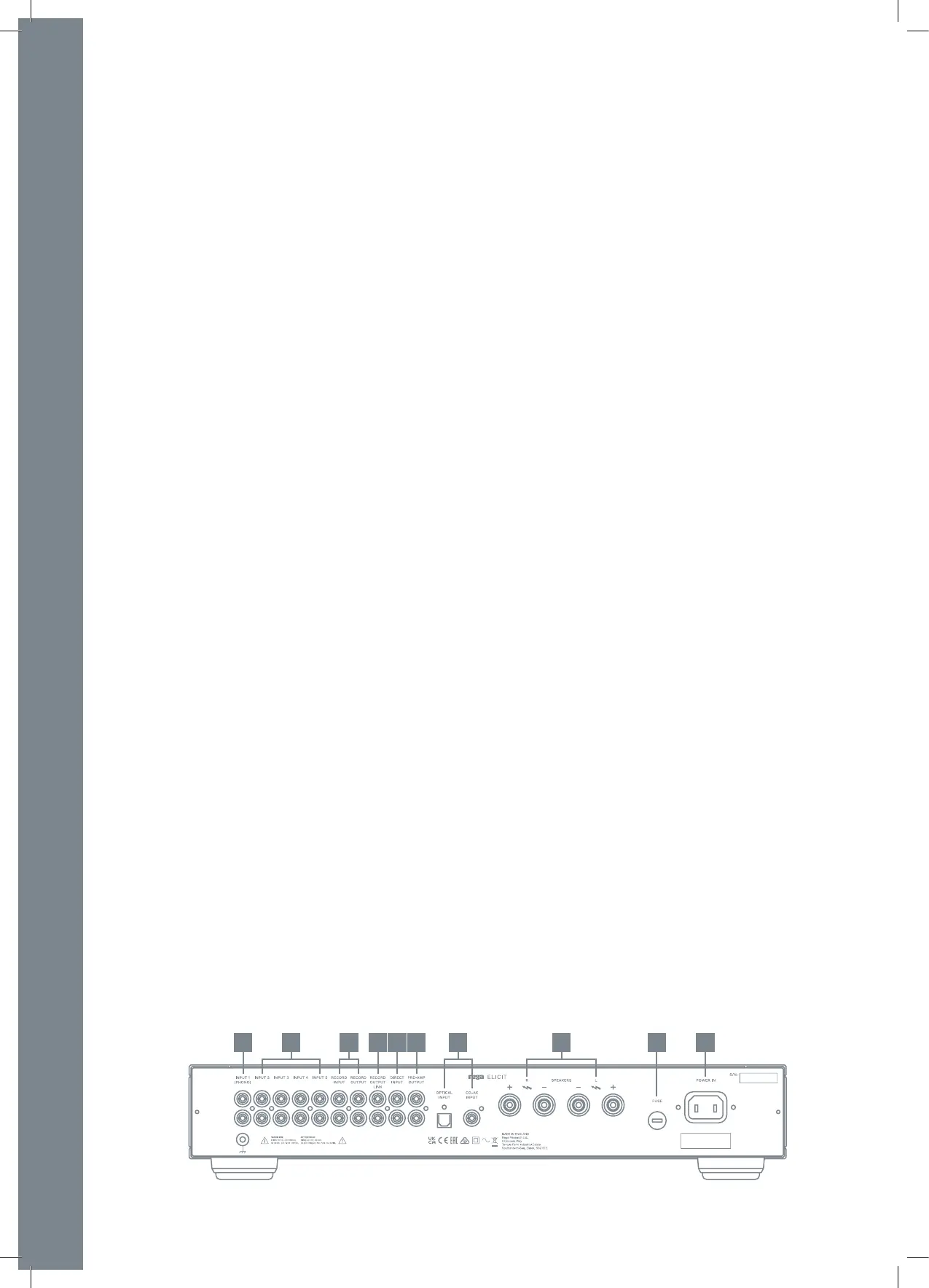

REAR PANEL CONNECTIVITY
1. Phono Input 1 - Enables connection of a turntable with a moving magnet cartridge. Loading will be suitable for most MM cartridge
designs on the market, and a dedicated grounding point is provided directly below the input sockets for tonearms with a separate ground
wire.
2. Line Inputs 2 to 5 - The line inputs enable the connection of sources, such as a streamer, CD player, DAC, tuner, DVD or Blu-ray player
for use with an Audio Visual system. These inputs are at standard line level and are suitable for any equipment with output at that level.
3. Record Input and Output - This is a line level input and output intended for use with a recording device such as a CD/DVD recorder,
MD, tape cassette machine or sound card. Record Output is the same signal as selected by the main input selector (analogue inputs 1-5
or digital inputs D1/D2) and is not aected by the volume control. Selecting the Record function on the amplier front panel/remote enables
the Record Input, directing the signal from this input to the speaker output of the amplier. This input is completely independent to inputs
1-5/D1/D2 and can be used to monitor the functionality and quality of the recording device without aecting the source being recorded.
Note: The Record Input button is located on the supplied remote only. The 'Record' LED will light on the front panel when activated.
4. Record Output Link - This output mirrors the Record Output, and can be used to drive ancillary components like headphone ampliers
etc. This signal is also unaected by the volume control.
5. Direct Input - This input is routed directly to the power amplier input, bypassing the internal preamp and volume control. This allows
the Elicit to be used with an external stereo preamplier of the user's choosing. It also enables the Elicit to be used with multi channel
systems, where the Elicit is utilised to power the front speakers during multi channel content. Input selection and volume control are
performed within an AVR or multi-channel preamp, the output of which is then passed to this input. The sensitivity is 760mV for maximum
output. Power amplier gain is 31.6dB.
Note: The Direct Input button is located on the supplied remote only. The 'Direct' LED will light on the front panel when activated.
CAUTION: As this input has no volume control, if a line level source like a CD player is connected to this input the speakers will be driven
to their maximum level, potentially causing damage.
6. Pre-Amp Output - The pre-amplier can drive at least 5 power ampliers, sub bass units etc. The pre-amplier output uses RCA type
(phono) connectors. The output level is 760mV with a line input level and is always active.
7. Digital Inputs - These are S/PDIF digital inputs. Input D1 enables the coax input and D2 enables the Toslink input. All common input bit
depths and sample rates up to 24bit/192kHz are supported.
8. Speaker Terminals - These are intended for use with 4-16Ω speakers. Sustained use into speakers of less than 8Ω could make the unit
run warmer than normal.
9. Mains Fuse - See back panel for rating.
WARNING: Replace only with same type and rating.
10. Mains Power Inlet - Connect to mains supply. See ratings label beneath inlet for country specic voltage, current and frequency
ratings.
WARNING: Only use product with a power supply that conforms to the ratings listed on the label.
CONNECTIVITY
1 2 3 4 5 6 7 8 9 10
