1.3 Warning for safety use
Product protection:
There must be included suitable protective device into the supply power (circuit breaker or fuse) which
serves at the same time as main switch.
EA STR 0PA has own short-circuit protection of motor power supply circuits and space heater.
Type of equipment from a connection point of view: The equipment is designed for permanent
connection.
1.4 Data specified on electric actuator

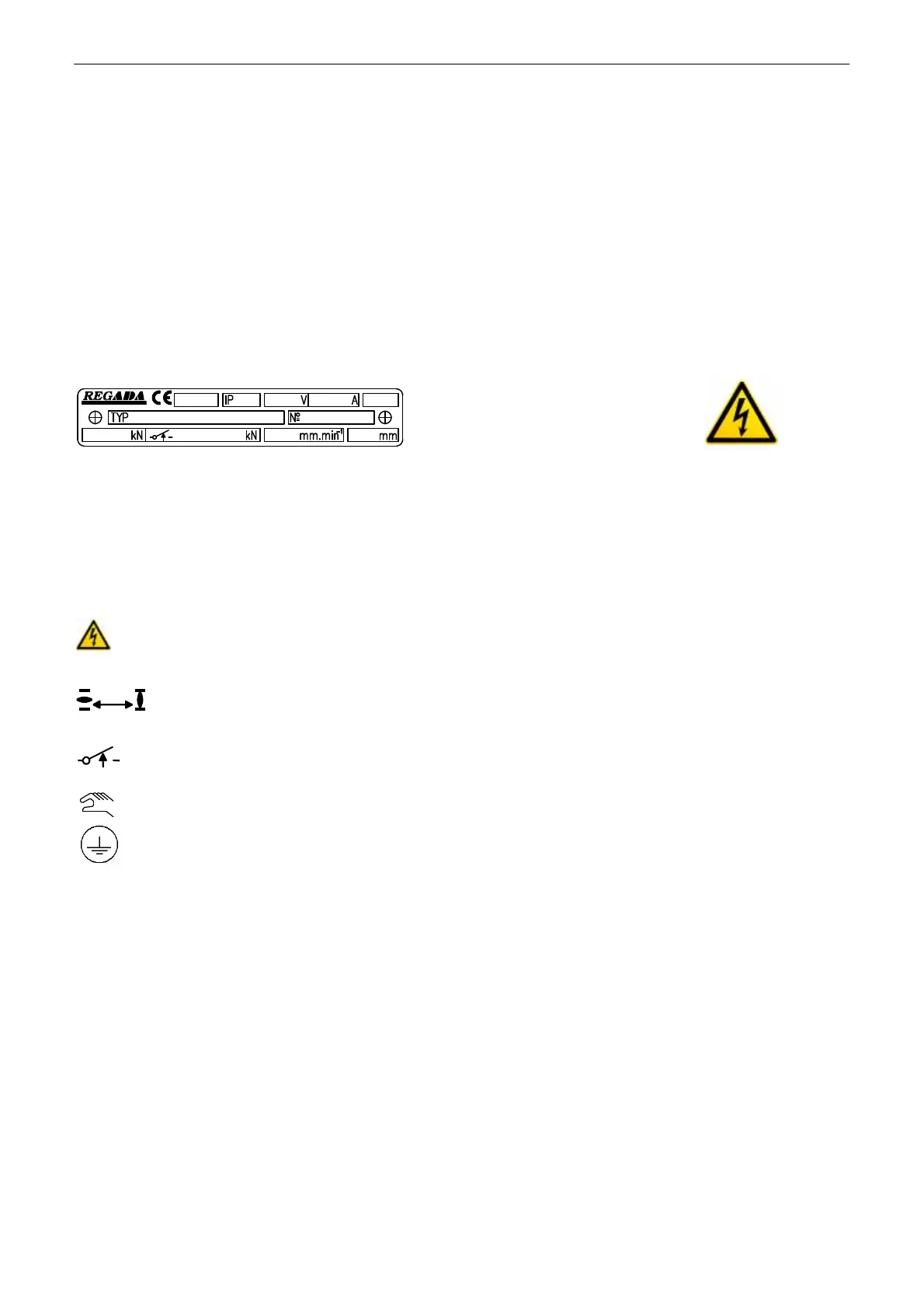

Nameplate: Warning plate:
Nameplate contains the basic data concerning identification, performance and electricity: indication of
producer, type, serial number, load thrust and switching-off thrust, operating speed, protection code,
operating stroke, supply voltage and current.
Graphic symbols on electric actuator
The graphic symbols used on electric actuator substitute the text messages. Some of them are in
accordance with EN ISO 7010, ISO 7000 and IEC 60417 within valid edition.
Dangerous voltage (EN ISO 7010-W012)
Stroke of the electric linear actuator
Switching-off thrust
Manual control (0096 ISO 7000)
Protection terminal (5019 IEC 60417)
1.5 Guaranty Conditions
The supplier is responsible for completeness of the delivery and guarantees proprieties of the
product, stated by technical conditions (TC), or proprieties agreed upon on purchase contract.
The supplier is not responsible for product deteriorated properties caused by the customer
during storing, non professional assembly, or non professional operation.
1.6 Under-guarantee and after-guarantee service
Under-guarantee service is performed by the service department of the production plant, or by a
contracted service centre according to a written claim.
In case of occurring of any fault please let us know it and state:
• basic data from nameplate: type code and serial number
• type of fault - description of claimed fault (actuator employment, ambient parameters (temperature,
humidity...), duty cycle including frequency of switching, type of switching-off (position or thrust),
set switching-off thrust, contact to the company implementing the installation and electric
connection
• it is recommended to place also Installation certificate.
