3.1 EA control set-up options (regulating)
2P CONTROL
Setting-up: 2P control + other functions, in addition to STOP on I1 terminal:
The EA moves either to the OPEN or CLOSE direction with 24V DC voltage supplied to terminals
OPEN or CLOSE. The EA stops if power supply is cut-off or the end position is reached.
2P PULSE CONTROL
Setting-up: 2P control + STOP function on I1:
The EA moves either to the OPEN direction or closes with 24V DC voltage pulse supplied on
connectors OPEN or CLOSE. The pulse may not be shorter than xx seconds.
The EA stops – shutting off - once the 24V DC voltage is supplied on I1 connector (STOP) or the set
end position is reached.

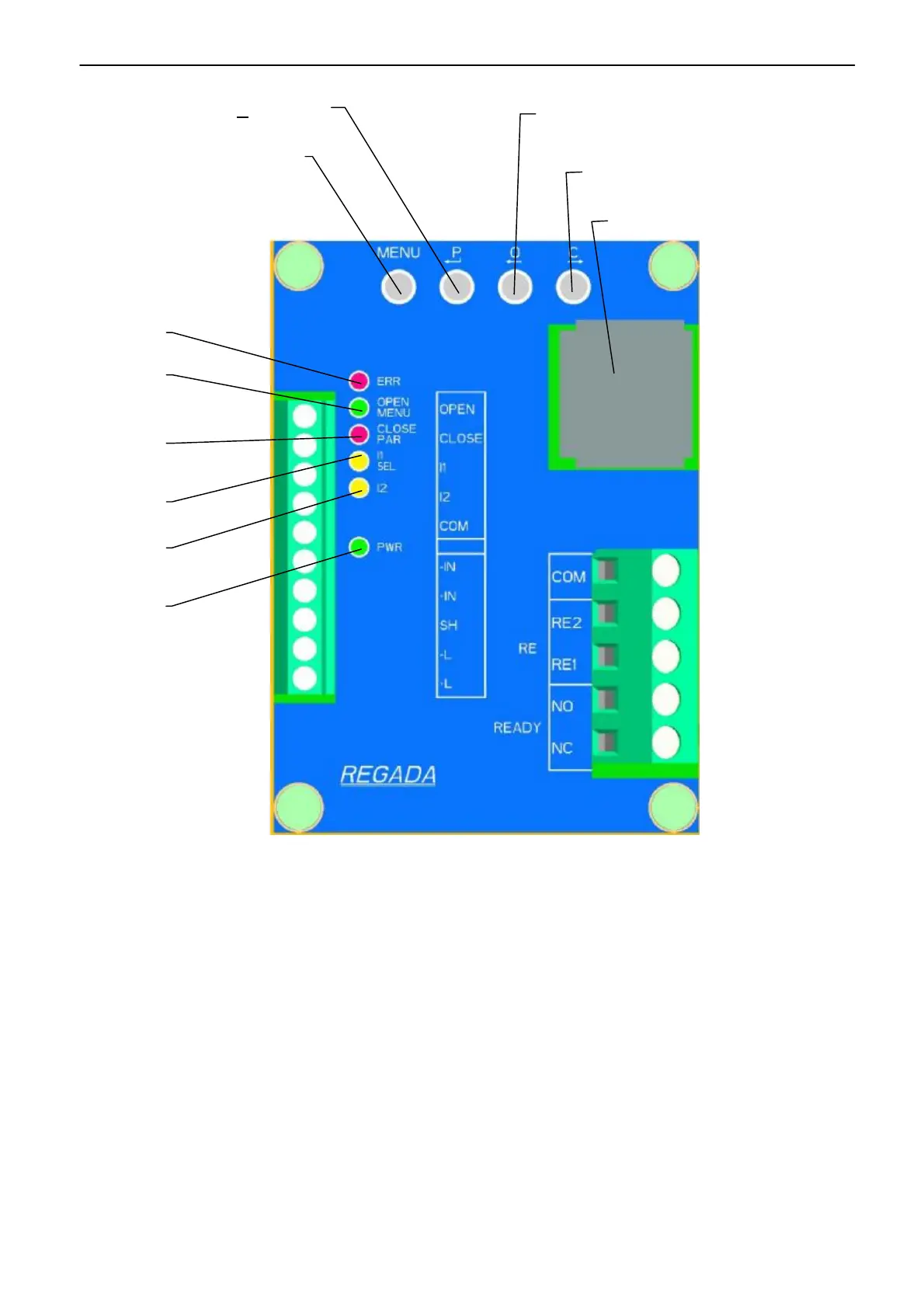

Fig. 6
BUTTON MENU
SETTING BUTTON P
SETTING BUTTON C
SETTING BUTTON O
LED ERROR
LED OPEN
LED MENU
LED CLOSE
LED PAR
LED I1
LED SEL
LED I2
LED POWER
COMMUNICATION
CONNECTOR
