Instructions for operating stuff training
Operation can be performed by skilled personel only trained by production plant, resp. by
contracting service center!
Warning for safety use
Product protection
EA ST, STR does not have own short-circuit protection, therefore there must be included
suitable protective device into the supply power ( circuit breaker, or fuse), which serves at the same
time as main switch.
Type of equipment from a connection point of view: The equipment is designed for perma-
nent connection.
1.3 Data specified on electric actuator

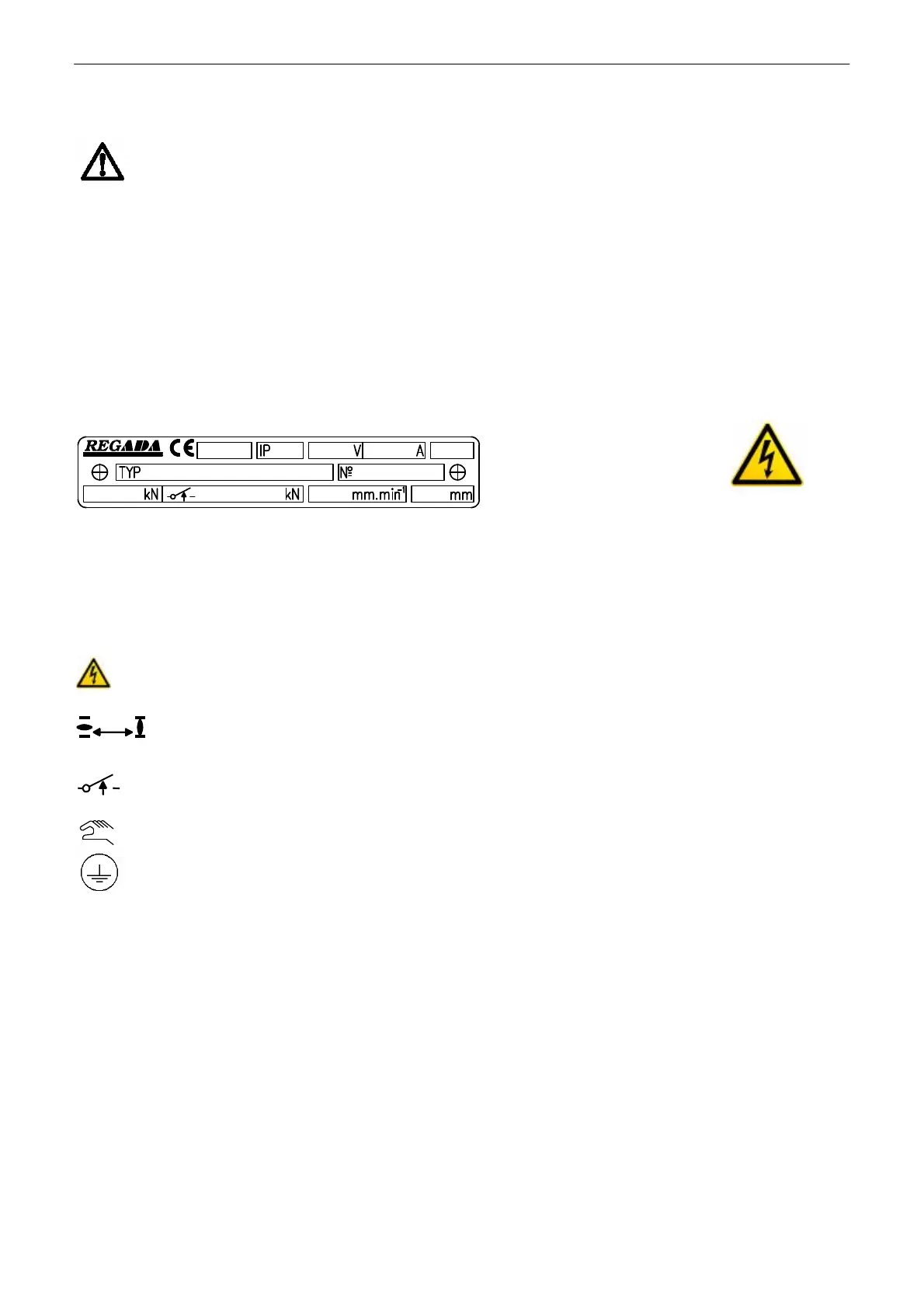

Nameplate: Warning plate:
Nameplate contains the basic data concerning identification, performance and electricity: indication of
producer, type, serial number, max. load thrust and switching-off thrust, protection code, operating
speed, supply voltage and current.
Graphic symbols on electric actuator
The graphic symbols used on electric actuator substitute the text messages. Some of them are in
accordance with EN ISO 7010, ISO 7000 and IEC 60417 within valid edition.
Dangerous voltage (EN ISO 7010-W012)
Stroke of the electric linear actuator
Switching-off thrust
Manual control (0096 ISO 7000)
Protection terminal (5019 IEC 60417)
1.4 Warranty conditions
The supplier is responsible for completeness of the delivery and guarantees these specifications
of the product which are stated in Technical conditions (TP) or specifications agreed in the Contract.
The supplier is not responsible for any deterioration of parameters caused by the customer
during storage, unauthorised installation or improper operation.
1.5 Under-guarantee and after-guarantee service
Our customers are provided with professional service of our firm in installation, operation,
service, maintenance, revision and help in troubleshooting for all our products.
Trained professionals wait for you also in our contracted service centres.
Under-guarantee service is performed by the service department of the production plant, or by a
contracted service centre according to a written claim.
In case of occurring of any fault please let us know it and state:
• basic data from nameplate: type code and serial number
