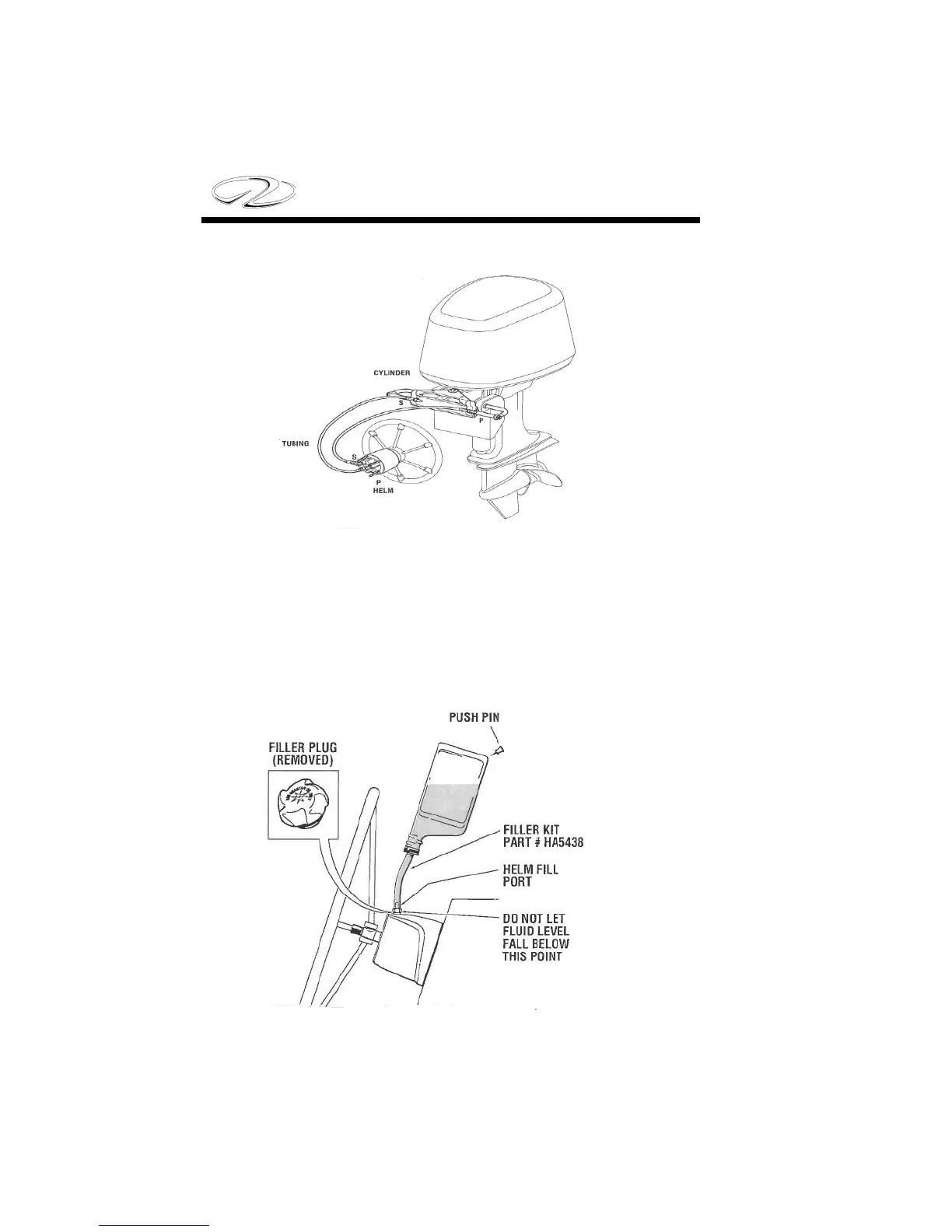

Typical Basic Hydraulic Steering System
Typical Helm Fill Kit Shown
Note the basic hydraulic steering system above uses designated
hose marked port and starboard. ese hoses can not be reversed
or the system will not operate properly. Use the above illustration
to understand the basic uid ow and parts involved in the system.
