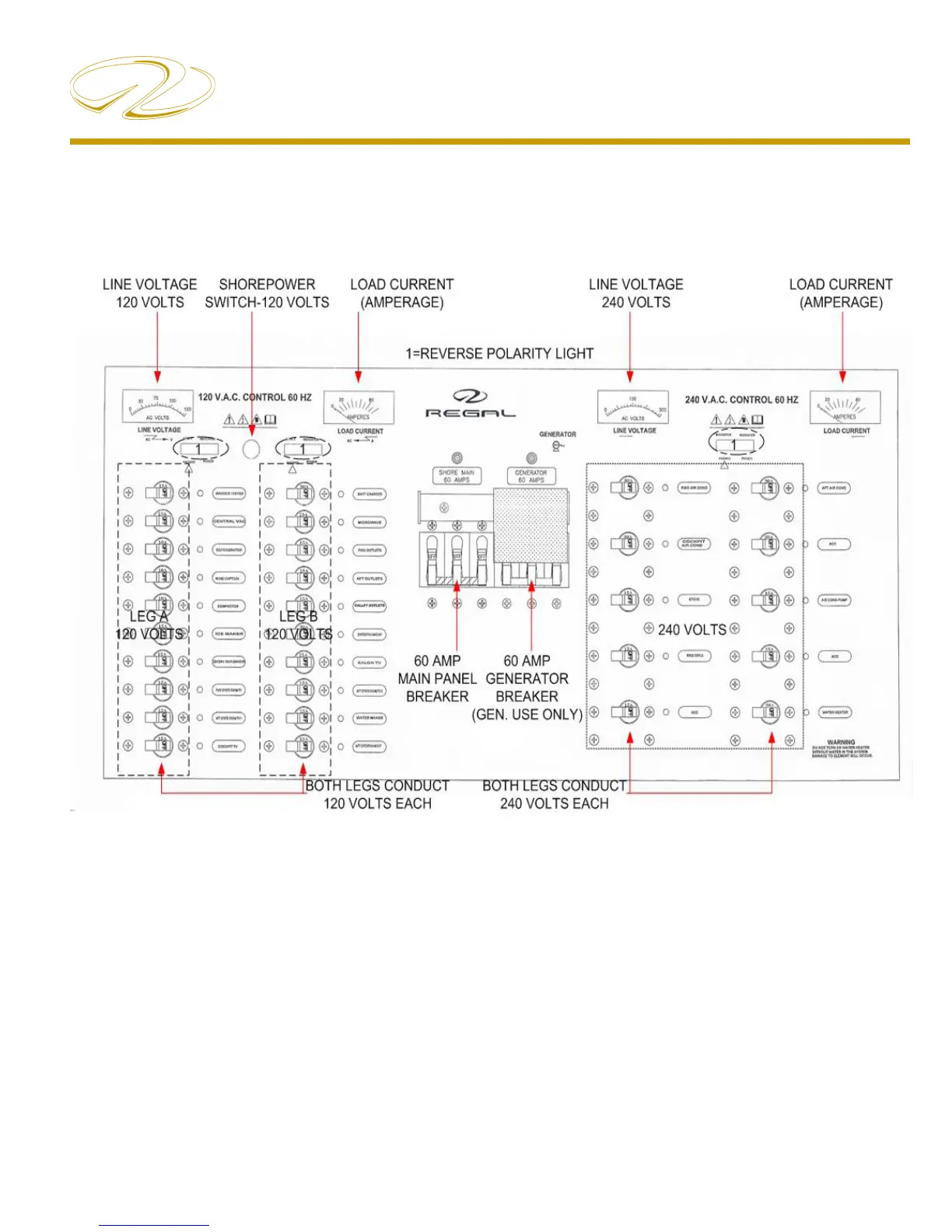

MAIN AC PANEL METER/SWITCH FUNCTIONS
The vessel’s main AC120/240 volt control panel is lo-
cated at the starboard aft salon. Lift the overhead cabinet
door to gain access to the panel. The main call outs on the
panel will be addressed. This panel serves as the main dis-
tribution for the incoming shore power from the marina
power center or from the ship’s generator when at cruise.
The ship’s main DC panel is located along side of the AC
panel. Information on the DC panel is found earlier in
this chapter.
SHOREPOWER PANEL DISTRIBUTION
As noted earlier the shore power cord delivers AC elec-
tricity through the yacht’s shore power inlet or the op-
tional cord reel system. The AC current travels through
the vessel’s electrical system to the main AC 120/240 volt
control panel. The AC electricity is now ready to be dis-
tributed to the various equipment components.
