F3500 Regency Freestanding Woodstove
installation
STAINLESS STEEL SMOKE DEFLECTOR INSTALLATION / REPLACEMENT:
The stainless smoke deflector is located in the upper front area of the firebox. The deflector is held in place with 2 bolts
Prior to the first fire, ensure deflector is seated properly and secured with 2 hand tightened bolts.
To replace the deflector, loosen off both bolts and slide defector upward and
out. Install new defector and hand tighten bolts. Ensure positive location
of the deflector prior to hand tightening.
WARNING: Operation of the unit with out proper installation of smoke
deflector will void warranty.

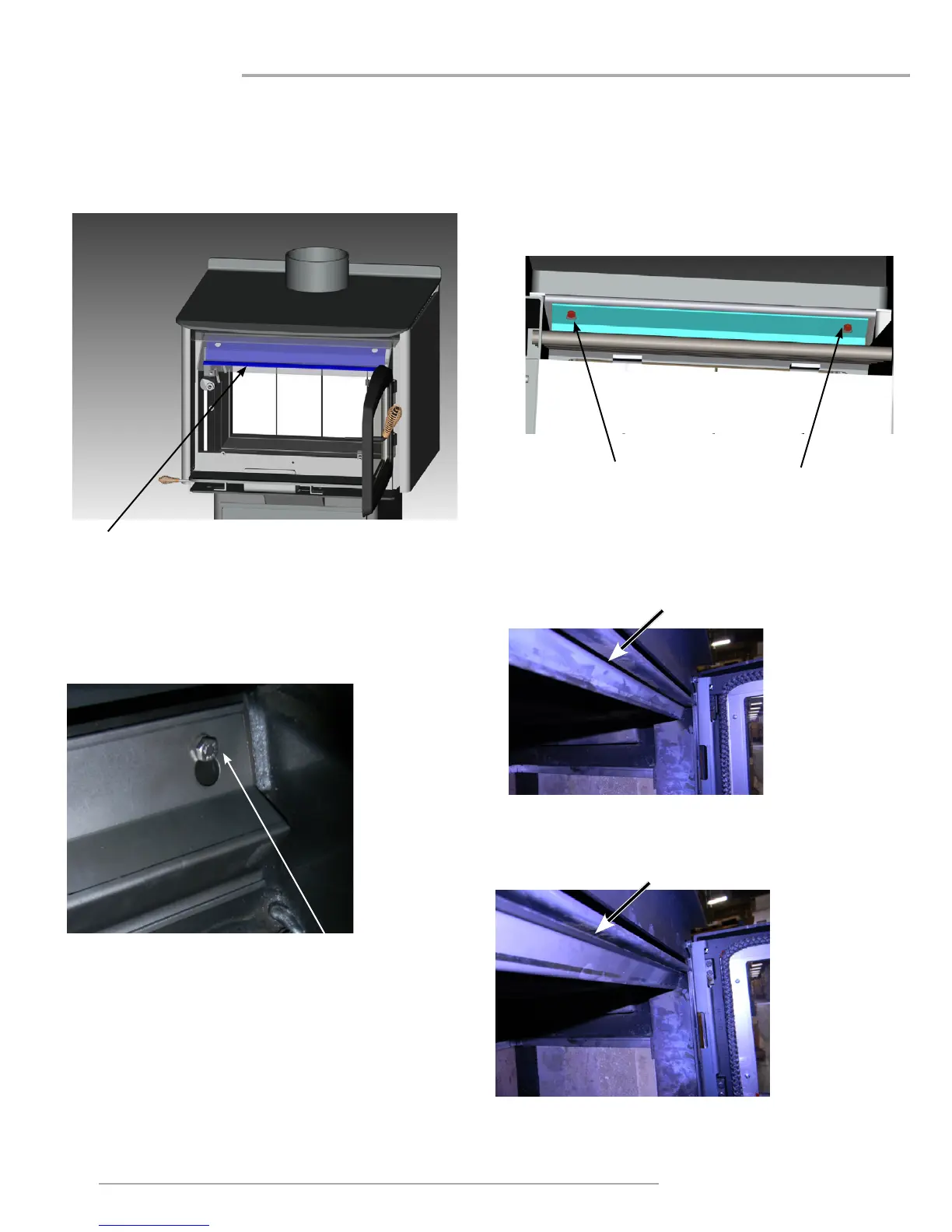

Smoke deector installed with 2 bolts.
Note: This is a view from inside the
rebox looking out.
Ensure defector is seated so bolts are situated
at the top of the keyhole before tightening.
Hand tighten bolts only.
Smoke deector
Correct Install:
Ensure return edge of smoke deflector is seated within the backside of
the glass wash.
Incorrect Install:
Return edge of smoke deflector seated under glass wash.
