F3500 Regency Freestanding Woodstove
PARTS LIST
parts list

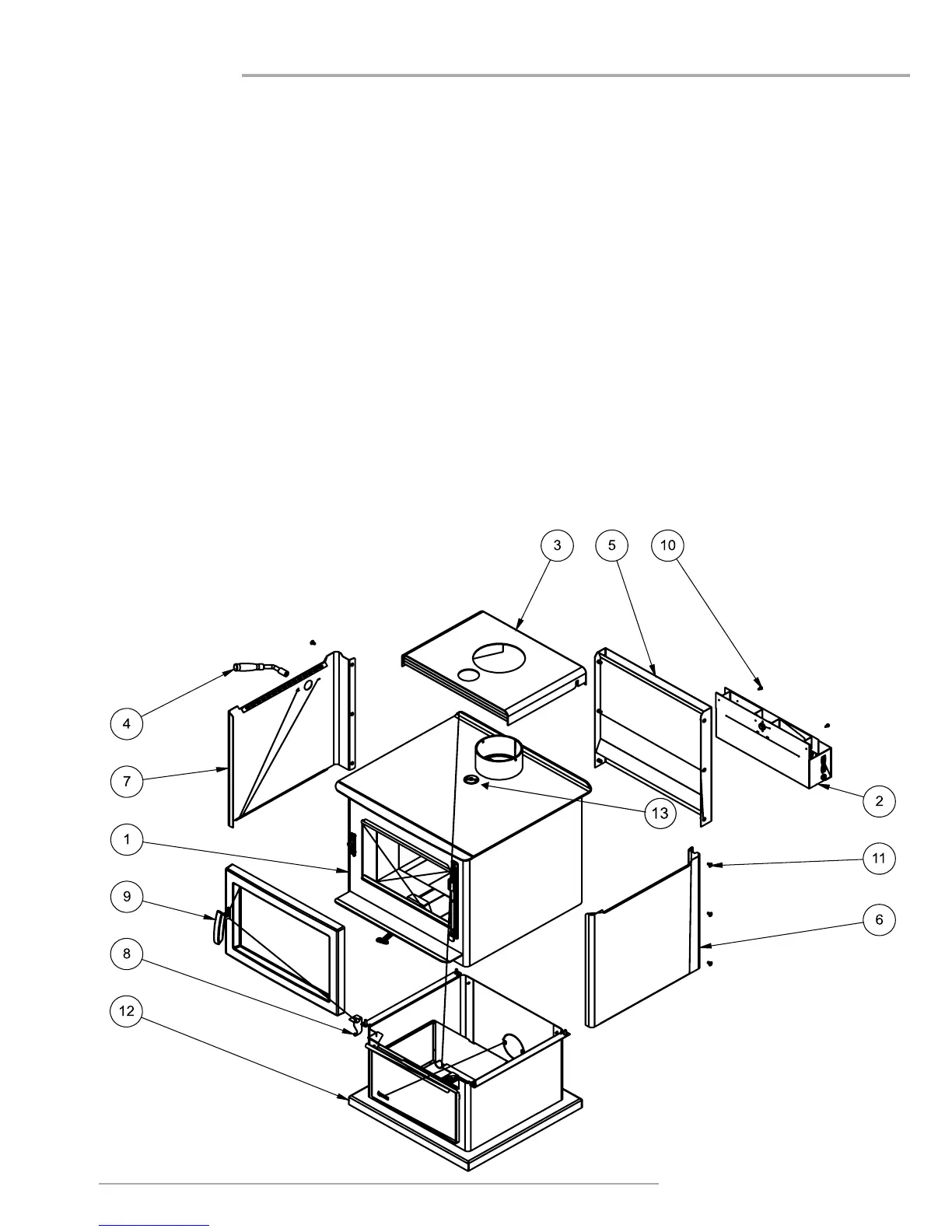

F3500 STOVE MAIN ASSEMBLY
Part # Description
1 Firebox assembly
2 846-515 Fan - free standing stove
3 042-912 Airmate - medium assembly
4 051-538 Removable arm assembly
5 042-517 Rear Heat Shield Assembly
6 042-029 Classic side heat shield - RH
7 042-028 Classic side heat shield - LH
910-157/P Replacement Motor
910-138 Auto/Manual Switch
910-140 Hi/Off/Lo switch
910-142 Fan Thermodisc
042-035 Flame shield and mixer
815-557 Rear Deflector
042-017 Gasket-Firebox Floor
948-223 Regency Logo Plate
Part # Description
8 051-018 Handle holder
9 042-520 Cast door assembly # 5
051-530 Catalytic Combustor Assembly (not shown)
033-953 Airtube 1" x 23" long
10 904-245 #10-16 x 1/2" SDS HEX HD
11 904-530 Screw 1/4-20 x 1/2 LG
12 042-532 Pedestal assembly
13 051-067 Thermometer
936-232 Gasket Bypass Door (per foot)
042-007 Stainless Steel Smoke Deflector
042-005 Door Hinge Assembly
156-514 Door Catch assembly
156-241 Removable Cast Handle
042-016 L/R stainless steel firebox filler
919-552 Manual
