F3500 Regency Freestanding Woodstove

installation

[152mm]

[127mm]

Max. 36"

Horizontal

Min. 36"

Vertical

Rise

18"

[457mm]

Listed Double Wall

Single Wall

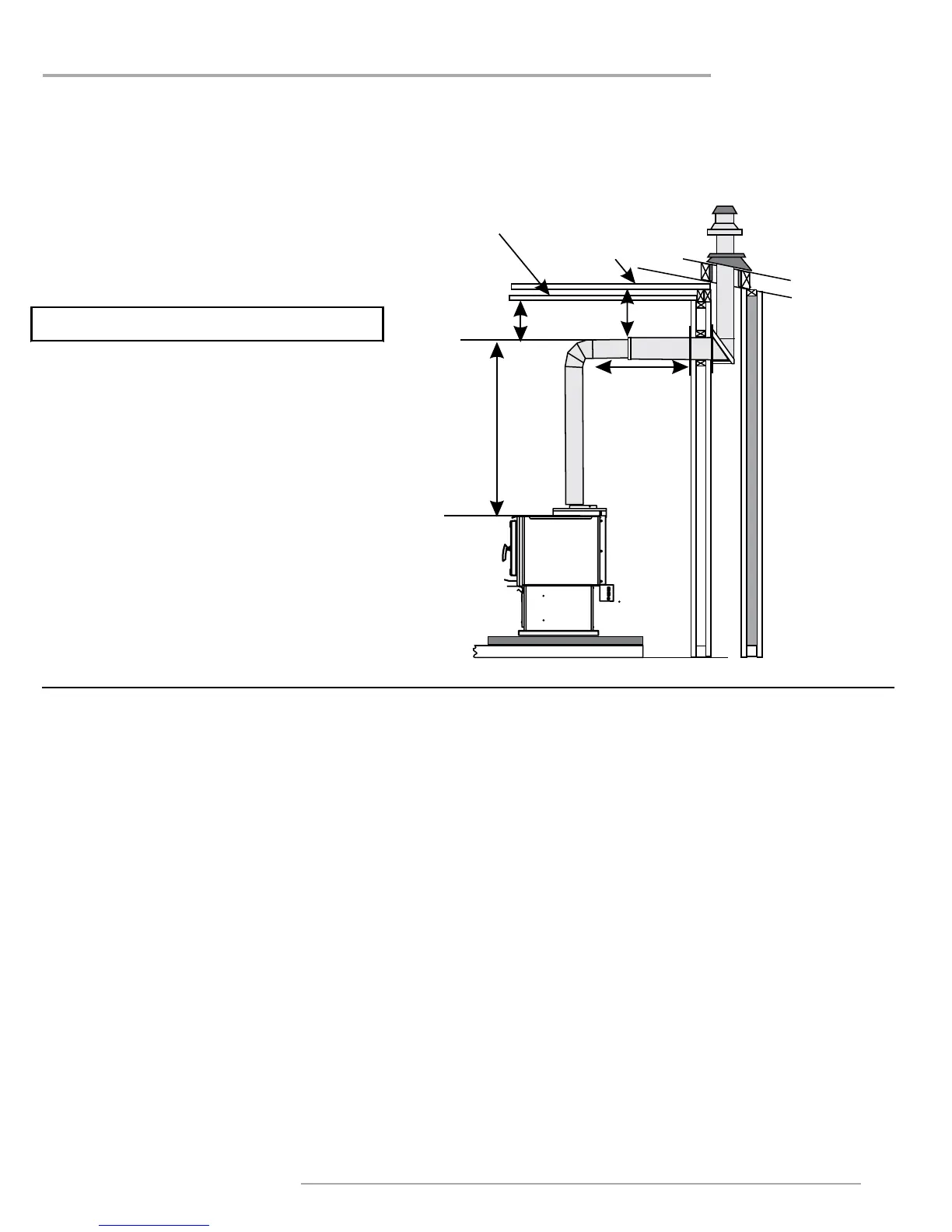

WALL EXIT CLEARANCE FACTORY BUILT CHIMNEY

When a metal prefabricated chimney is used, the manufacturer's installation instructions must be followed. You must also purchase and install the ceiling

support package or wall pass-through and "T" section package, ﬁrestops (where needed), insulation shield, roof ﬂashing, chimney cap, etc. Maintain proper

clearance to the structure as recommended by the manufacturer. The chimney must be the required height above the roof or other obstructions for safety and

proper draft operation.

Minimum vertical of 36" before any offset.

Horizontal Maximum of 36" with 1/4" rise per foot.

NOTE: Recommend using 2-45º instead of 90º to improve draft

and performance.

Note: Minimum ceiling height roof - 83" (2108 mm)
