F3500 Regency Freestanding Woodstove
PARTS LIST
parts list

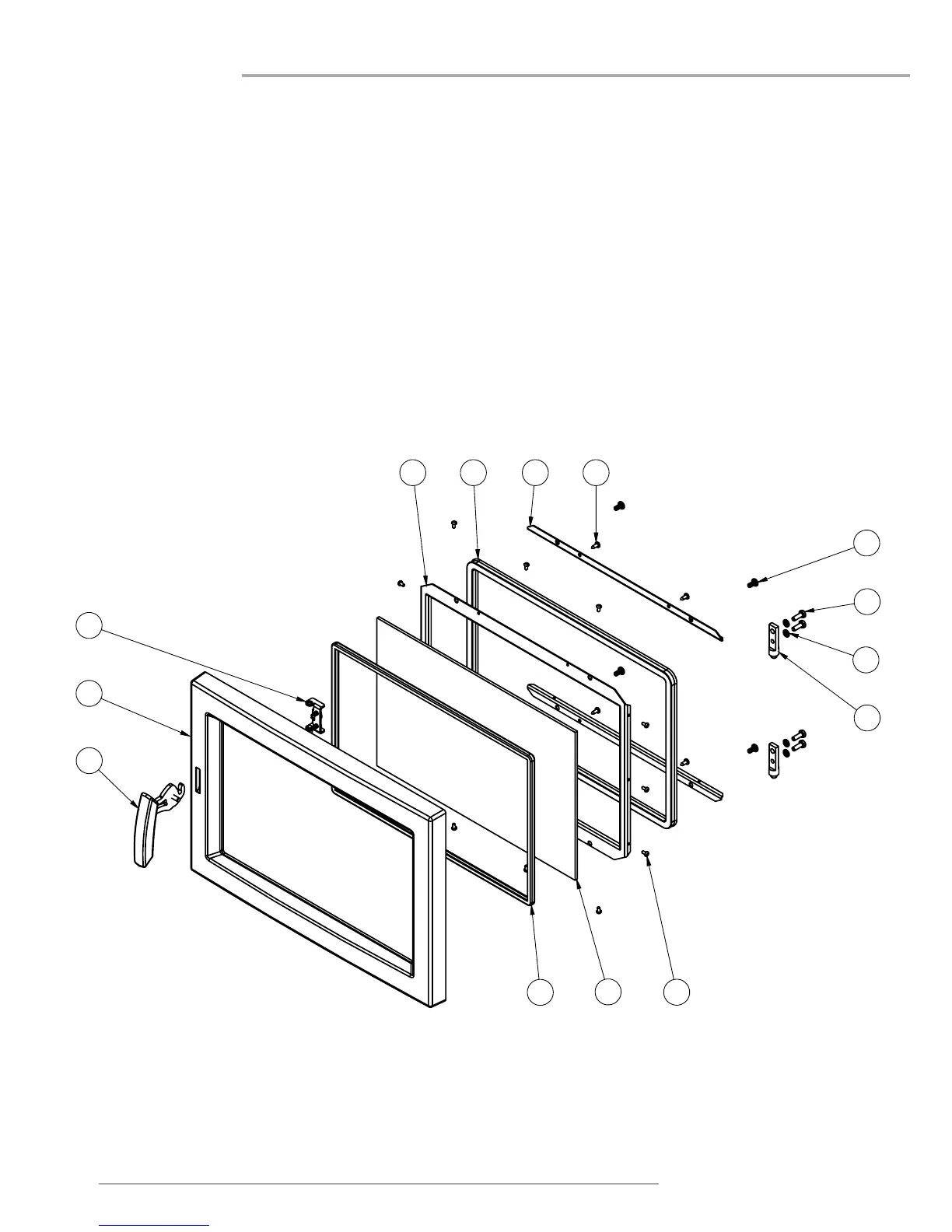

DOOR ASSEMBLY
13
8
14
4
9
10
76
1
5
3
2
12
11
14 948-155 2 HINGE PIN
13 904-015 4
1/4-20 x 1/2 PAN HD PHIL
12 904-146 4 SCREW #10 x 1/2 SELF TAP PAN HD PHILIPS
11 904-149 12 SMS #8-18 x 3/8 LG
10 904-525 4 WASHER 1/4 SPLIT LOCK
9 904-513 4 HEX BOLT 1/4-20 x 3/4 LG.
8 042-021 2 GASKET BRACKET
7 RD-11056 1 936-060 GASKET MED DENSITY
6 042-020 1 5/8" GASKET RETAINER
5 042-022 1 TAPE 7/8 WINDOW ADHESIVE
4 940-416 1 DOOR GLASS
3 156-514 1 REMOVABLE CAST HANDLE ASSEMBLY
2 106-541 1 ALIGNER ASSEMBLY
1 042-201 1 DOOR CAST BLACK (F3500)
ITEM
Part # Description
1 042-201 Door cast black (F3500)
2 106-541/P Aligner assembly
3 156-514 Removable cast handle assembly
4 940-416/P Door glass
5 943-243 7/8" flat window gasket (per 5ft. - required)
6 042-020 5/8" Gasket Retainer
Part # Description
7 846-530 5/8" Medium Door gasket kit
8 042-021 Gasket bracket
9 904-513 Hex bolt 1/4-20 x 3/4 LG.
10 904-525 Washer 1/4" split lock
11 904-149 SMS #8-18 x 3/8 LG
12 904-146 Screw #10 x 1/2" self tap pan hd philips
13 904-015 1/4-20 x 1/2 pan hd phil
14 948-155 Hinge pin
