F3500 Regency Freestanding Woodstove
33
PARTS LIST
parts list

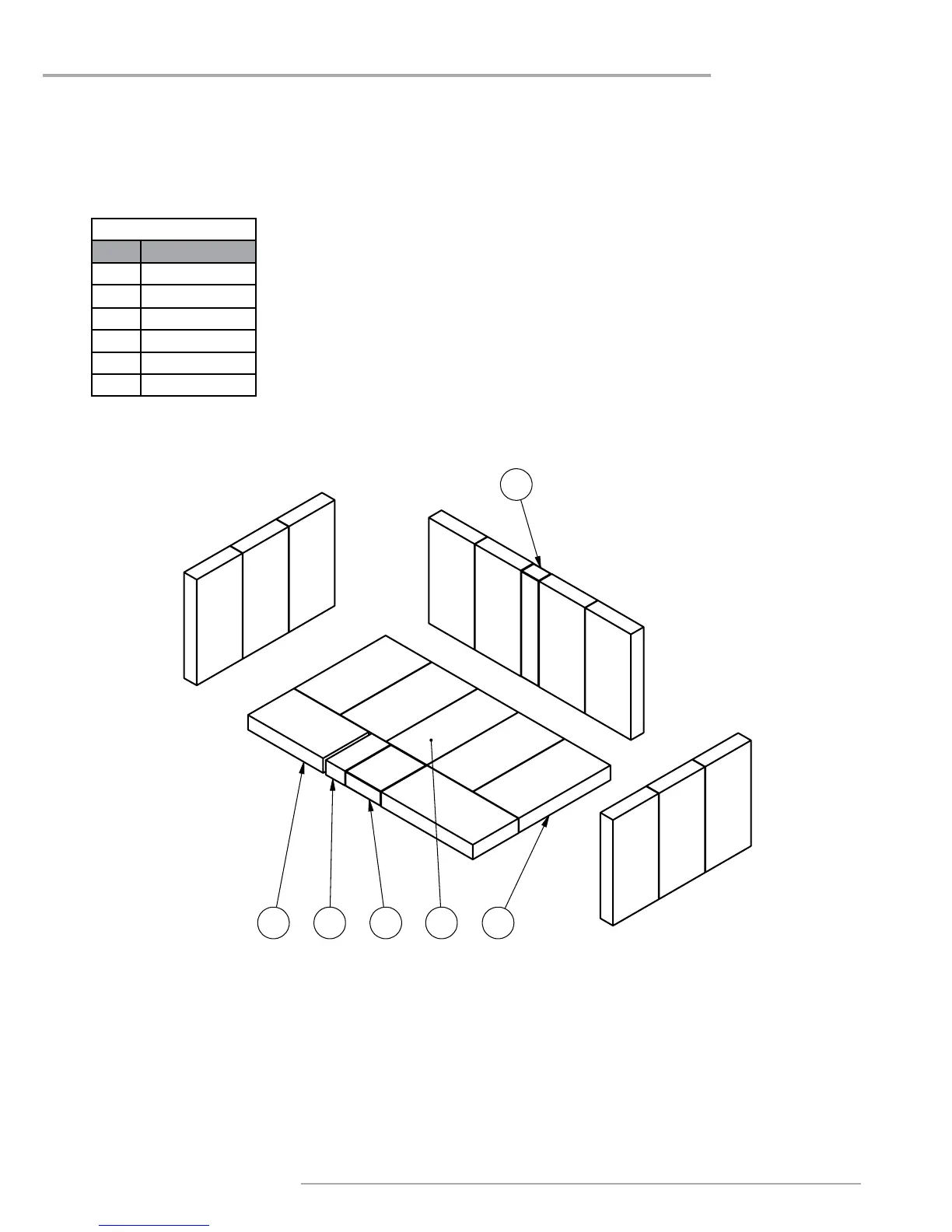

F3500 STOVE BRICK LAYOUT
Fire bricks
# Size
1 4-1/2" x 9"
2 4" x 9"
3 3-1/2" x 4-1/2"
4 1-3/4" x 4-1/2"
5 4-1/2" x 7-5/8"
6 1-3/4" x 9"
042-960 Brick Set Complete
CHK
PROCESS :
SCALE:
DWN
BLANK SIZE :
SIGN
C.N.
DATE
THIS DRAWING IS THE PROPERTY OF FPI LTD., IT MAY NOT BE COPIED IN WHOLE OR IN PART, OR DISCLOSED TO A THIRD PARTY WITHOUT OUR PRIOR WRITTEN CONSENT.
CURRENT REVISION
PREVIOUS REVISION
PART :
MAT'L :
ANGULAR =
INSIDE BEND RADII =
UNITS IN INCHES
DIMENSIONS =
TOLERANCES UNLESS
OTHERWISE STATED
SCALE
DO NOT
PROJECTION
3RD ANGLE
MODEL #
QTY.
REV.
±1°
±0.031
PART
NO.
FIREPLACE PRODUCTS INTERNATIONAL
06 MAY 2013
N/A
ASSEMBLY
-
042-960
WAYNE THURBER
042-960
FIRE BRICK ASSEMBLY
-
F3500
1
1:8
10.281
22.855
17.935
6
345 12
Mass = 32.361 pounds
6 802-146 1 1.750 x 9.000 BRICK
5 802-165 1 7.375 x 4.500 CUT BRICK
4 802-128 1 1.875 x 4.500 BRICK
3 802-147 1 3.500 x 4.500 BRICK
2 802-104 1 4.000 x 9.000 BRICK
1 902-111 15 9.000 x 4.500 STANDARD BRICK
ITEM
NO.
PART NUMBER QTY. DESCRIPTION
