Regency
®
P121-2/P121LC-2/P121RC-2/P131-2 Zero Clearance Direct Vent Gas Fireplace 15
Description
Simpson
Direct Vent Pro
®
Simpson
Direct Vent GS
®
Discontinued
Selkirk
Direct-Temp™
American Metal
Products
®
Amerivent Direct
Metal-Fab
®
Sure Seal
Security
Secure Vent
®
Attic Insulation Shield 12”
46DVA-IS - N/A from FPI
N/A N/A 4DAIS12 N/A SV4RSA
Attic Insulation Shield - Cold Climates 36”
N/A N/A N/A 4DAIS36 N/A N/A
Basic Horizontal Termination Kit (A)
DISC. 970 4DT-HKA 4DHTK2 4DHTKA SV - SHK
Horizontal Termination Kit (B)
46DVA-KHA
(Changed Components)
971 4DT-HKB 4DHTK1 4DHTKB SV - HK
Vertical Termination Kit
DISC. 978 4DT-VKC 4DVTK 4DVTK SV - FK
High Wind Vertical Cap
46DVA-VCH 991 N/A N/A N/A N/A
High Wind Horizontal Cap
46DVA-HC 985 N/A N/A N/A N/A
Horizontal Square Termination Cap
Disc - See 46DVA-HC 984 4DT-HHC 4DHC 4DHT SV4CHC-1
Vertical Termination Cap
46DVA-VC 980 4DT-HVC 4DVC 4DVT SV4CGV-1
Storm Collar
46DVA-SC 953 4DT-SC 4DSC 4DSC SV4FC
Adjustable Flashing, 0/12-6/12
46DVA-F6 943 4DT-AF6 4DF 4DF SV4FA
Adjustable Flashing, 6/12-12/12
46DVA-F12 943S 4DT-AF12 4DF12 4DF-12 SV4FB
Vinyl Siding Standoff
46DVA-VSS 950 4DT-VS N/A 4DVS SV4VS
Vinyl Siding Shield Plate
N/A N/A 4DT-VSP N/A N/A SV4VS
Snorkel Termination 14”
46DVA-SNK14 982 4DT-ST14 4D12S 4DST14 SV4STC14
Snorkel Termination 36”
N/A 981 4DT-ST36 4D36S 4DST36 SV4STC36
Restrictor Disk
46DVA-RD 929 N/A N/A N/A N/A
Extended Vertical Termination Cap
46DVA-VCE 930 N/A N/A N/A N/A
Chimney Conversion Kit A
46DVA-KCA 931 N/A N/A N/A N/A
Chimney Conversion Kit B
46DVA-KCB 932 N/A N/A N/A N/A
Chimney Conversion Kit C
46DVA-KCC 933 N/A N/A N/A N/A
Chimney Conversion Kit Masonry
46DVA-KMC 934 N/A N/A N/A N/A
Mansonry Chimney Conversion Kit
(includes: Cap Adapter 18”x18” Flashing)
46DVA-KCT 935 N/A N/A N/A N/A
Wall Firestop
46DVA-WFS 947 N/A N/A N/A N/A
Colinear Flex Connectors
46DVA-ADF 923F N/A N/A N/A N/A
FPI
946-506/P Vent Guard (Optional) for AstropCap 946-205 Vinyl Siding Shield for Riser Vent Terminal
510-994 Rigid Pipe Adapter (Must use with all Rigid Piping) 946-208/P Vent Guard (Optional) for Riser Vent Terminal
640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap
946-206 Vinyl Siding Standoff for AstroCap

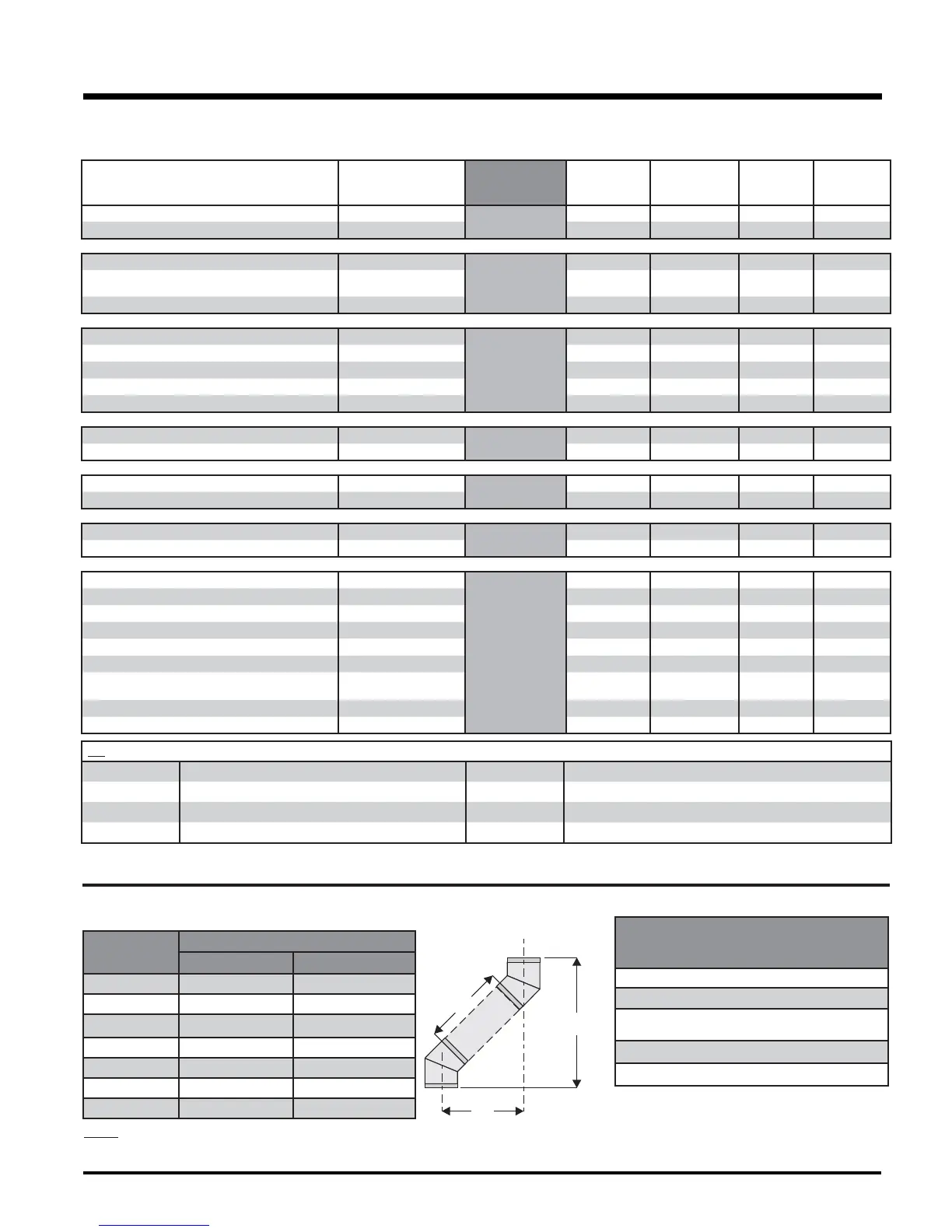

4” x 6-5/8” Rigid Pipe Cross Reference Chart (Cont.)
Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.
*NOTE: When using Metal-Fab Sure Seal Rigid Piping please note that either the Adaptor (4DDA) or 90º Starter Elbow (4D90A)
must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).
Offset Pipe Selection:
Use this table to determine offset pipe lengths.
Pipe Length
4” x 6-5/8” Venting
Run (X) Rise (Y)
0”(0mm) 4-7/8”(124mm) 13-3/8”(340mm)
6”(152mm) 8”(203mm) 16-1/2”(419mm)
9”(229mm) 10-1/8”(257mm) 18-5/8”(473mm)
12”(305mm) 12-1/4”(311mm) 20-3/4”(527mm)
24”(610mm) 20-5/8”(524mm) 29-1/8”(740mm)
36”(914mm) 29”(737mm) 37-1/2”(953mm)
48”(1219mm) 37-7/16”(951mm) 45-15/16”(1167mm)
L
Y
X
NOTE: Horizontal runs of vent must be level, or have a 1/4 inch rise for every 1 foot of run towards
the termination. Never allow the vent to run downward. This could cause high temperatures and
may present a possible fi re hazard.
For specifi c instructions or details on particular
venting components please visit the following
websites:
Simpson Direct Vent Pro: www.duravent.com
Selkirk Direct-Temp: www.selkirkcorp.com
American Metal Products Amerivent Direct:
www.americanmetalproducts.com
Metal-Fab Sure Seal: www.mtlfab.com
Security Secure Vent: www.securitychimneys.com
