Regency P121 - Page 19

Regency
®
P121-2/P121LC-2/P121RC-2/P131-2 Zero Clearance Direct Vent Gas Fireplace 19
INSTALLATION

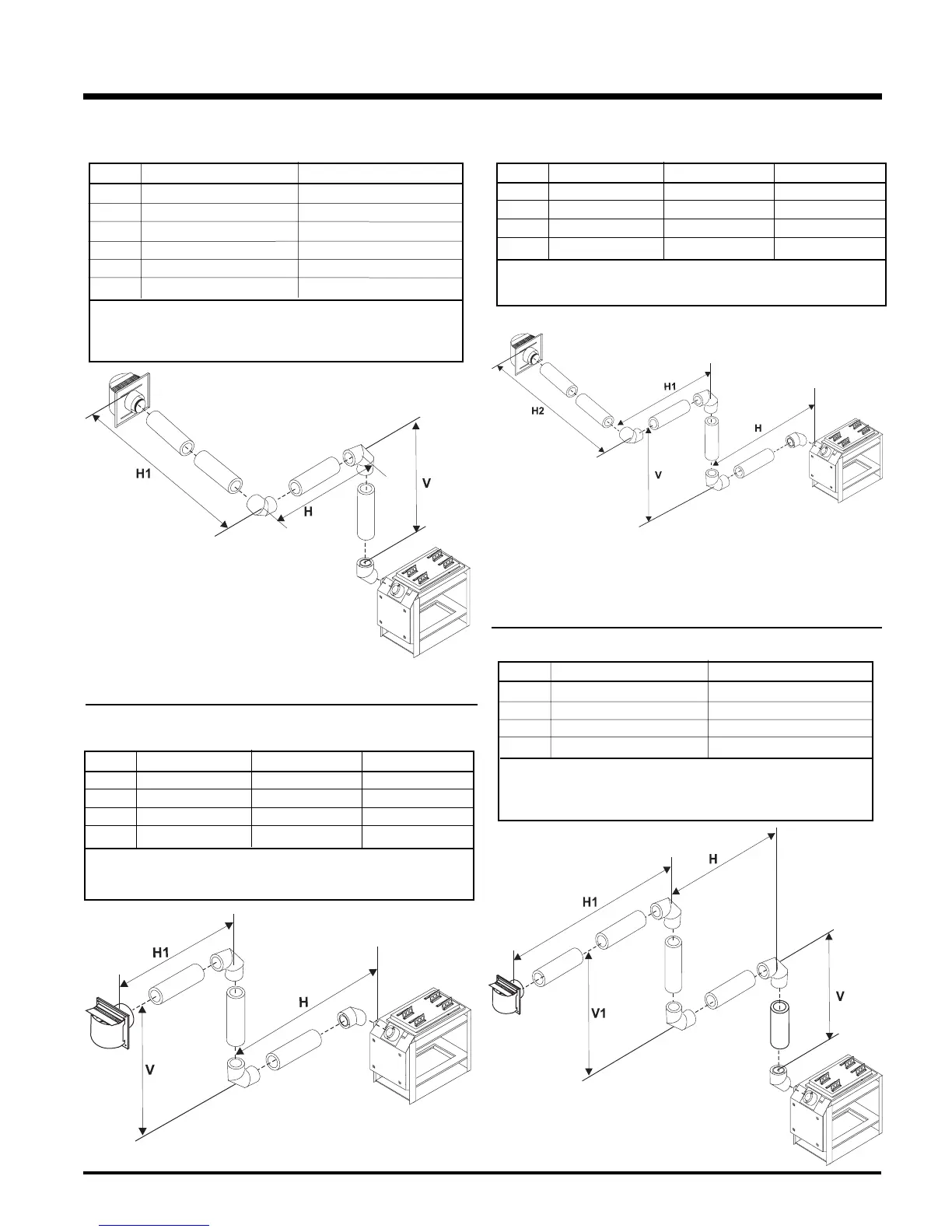

Diagram 3
Horizontal Venting with Two (2) 90
o
Elbows
Horizontal Venting with Two (2) 90
o
Elbows
Horizontal Venting with Three (3) 90
o
Elbows
Horizontal Venting with Three (3) 90
o
Elbows
Diagram 5
Diagram 4 Diagram 6
Option V H + H1
A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 5' (1.5m) Maximum
C) 3' (914mm) Minimum 8' (2.4m) Maximum
D) 4' (1.22m) Minimum 11' (3.35m) Maximum
E) 5' (1.5m) Minimum 14' (4.27m) Maximum
F) 6' (1.86m) Minimum 15' (4.5m) Maximum
With the above options, maximum total pipe length if 37 feet
with minimum of 6 feet total vertical and maximum 15 feet total
horizontal.
Please note minimum 1 foot between 90
o
elbows is required.
Option V H H + H1 + H2
A) 2' (610mm) Min. 1' (305mm) Max. 3'(914mm) Max.
B) 3' (914mm) Min. 3' (914mm) Max. 6' (1.86m) Max.
C) 4' (1.22mm) Min. 5' (1.5m) Max. 9' (2.7m) Max.
D) 5' (1.5m) Min. 7' (2.13m) Max. 12' (3.6m) Max.
With the above options, maximum total pipe length if 37 feet with minimum
of 5 feet total vertical and maximum 12 feet total horizontal.
Please note minimum 1 foot between 90
o
elbows is required.
Option V H H + H1
A) 1' (305mm) Min. 1' (305mm) Max. 3'(914mm) Max.
B) 2' (610mm) Min. 3' (0.91m) Max. 6' (1.86m) Max.
C) 3' (914mm) Min. 5' (1.5m) Max. 9' (2.7m) Max.
D) 5' (1.5m) Min. 8' (2.4m) Max. 12' (3.6m) Max.
With the above options, maximum total pipe length if 37 feet with minimum
of 5 feet total vertical and maximum 12 feet total horizontal.
Please note minimum 1 foot between 90
o
elbows is required.
Option V + V1 H + H1
A) 2' (610mm) Minimum 3' (914mm) Maximum
B) 3' (914mm) Minimum 6' (1.86m) Maximum
C) 4' (1.22m) Minimum 9' (2.7m) Maximum
D) 5' (1.5m) Minimum 12' (3.6m) Maximum
With the above options, maximum total pipe length if 37 feet
with minimum of 5 feet total vertical and maximum 12 feet total
horizontal.
Please note minimum 1 foot between 90
o
elbows is required.
