P121-2/P121LC-2/P121RC-2/P131-2 Zero Clearance Direct Vent Gas Fireplace
30
INSTALLATION
327
327
Repeat step 4 on the opposite side of the burner.
Pin
329
329
328
328
328
326
329
Grate Post

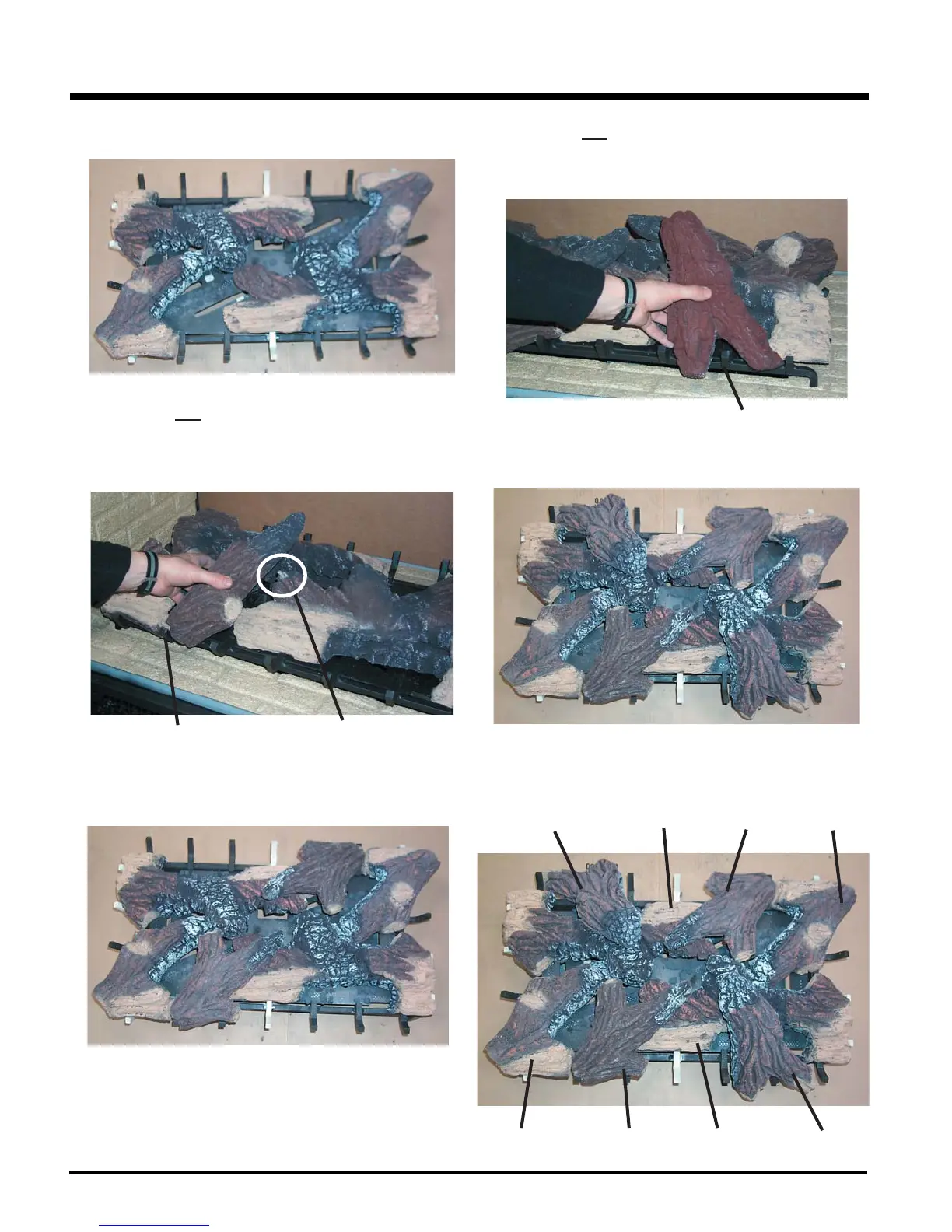

5) Place Log 329 on the middle left side of the burner.
Rest the bottom of the Log onto the second grate post
from the left. Ensure that the log fi ts into a pin that is
on Log 326.
Repeat step 5 on the opposite side of the burner.
6) Place Log 328 on the middle right side of the burner.
Ensure that the log fi ts over the 2nd grate post from
the right.
Repeat step 6 on the opposite side of the burner.
Grate Post
328327 329 326
Completed Log Set Installation:
326 329328
327
