Regency P121 - Page 34

Regency
®
P121-2/P121LC-2/P121RC-2/P131-2 Zero Clearance Direct Vent Gas Fireplace
34

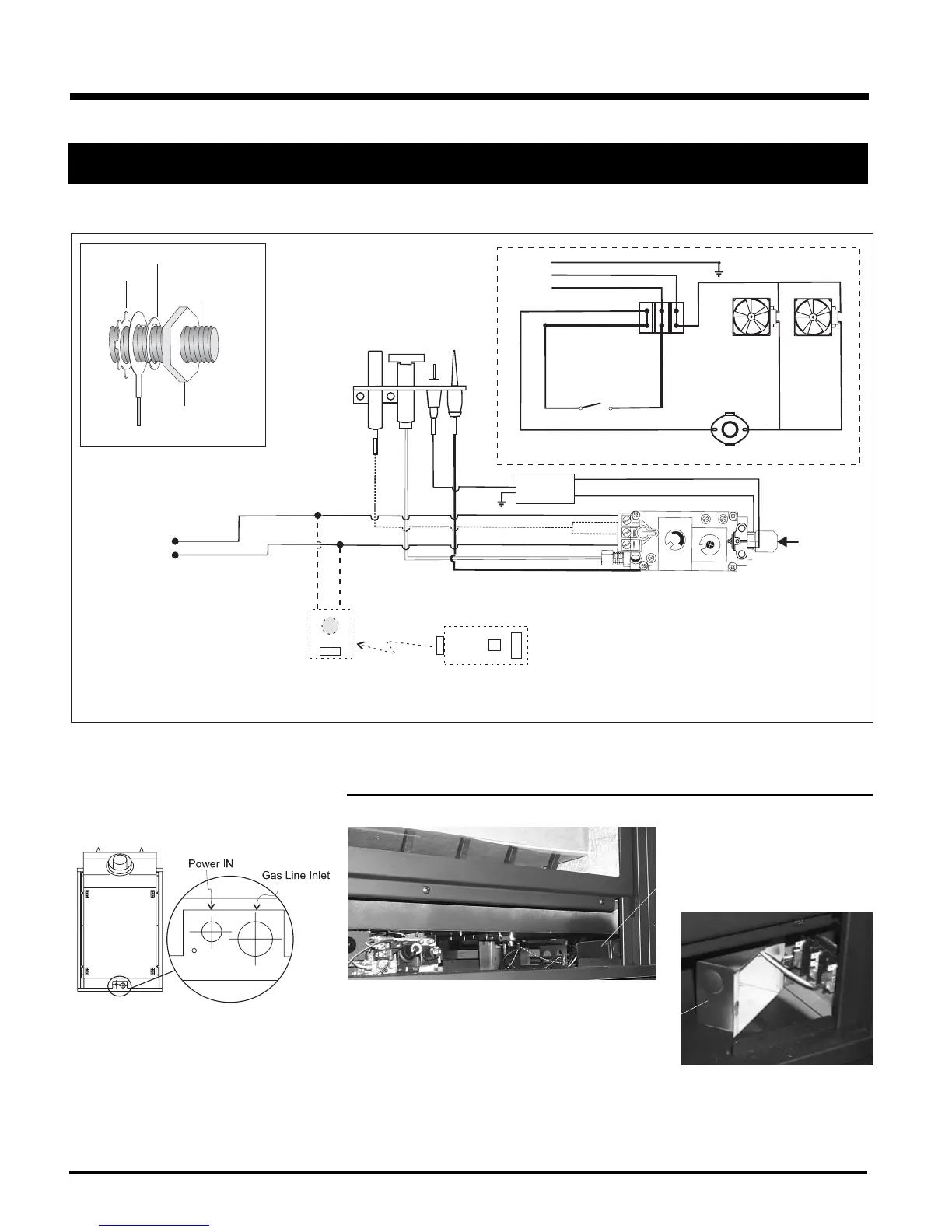

Terminal Block Location
Terminal Block
Remove cover to
access Terminal
Block
Lockwasher
Ground Wire
Nut
#8 Ground Lug
(for mobile home)
Grounding Lug Detail
Star washer
Thermodisc
Green (Ground)
White (Neutral)
Black (Live)
Black
White
Black
White
(*by others)
(*by others)
Black
120 VAC
60HZ
(*by others)
ON
OFF
(*Supplied by others - install
according to local code)
FAN 2
FAN 1
To Thermocouple IN
Pilot
Assembly
H
I
L
O
O
F
F
O
N
P
I
L
O
T
Gas Pilot
Thermopile
Thermocouple
Electrode
Remote Transmitter
(Optional)
ON OFF
Regency
Remote Receiver
or Thermostat
(Millivolt) (Optional)
Brown
Red
Black
White
"S.I.T" Valve
To Burner
ON / OFF
Switch
(To THTP)
(To TH)
Gas
In
DC Spark
Box
Ground
INSTALLATION
For PROPANE Units and Units Equipped with DC Spark Boxes*
*For installation of the DC Spark Box refer to the LP Conversion instructions in this manual.
