INSTALLATION
• Vent must be supported at offsets
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain a 1-1/4" clearance to combustibles
Note: Must use optional flue adapter when using Simpson Dura-Vent pipe (Part # 510-994).
VENTING ARRANGEMENTS - VERTICAL TERMINATIONS
SIMPSON DURA-VENT DIRECT VENT GS SYSTEM
(Propane & Natural Gas)

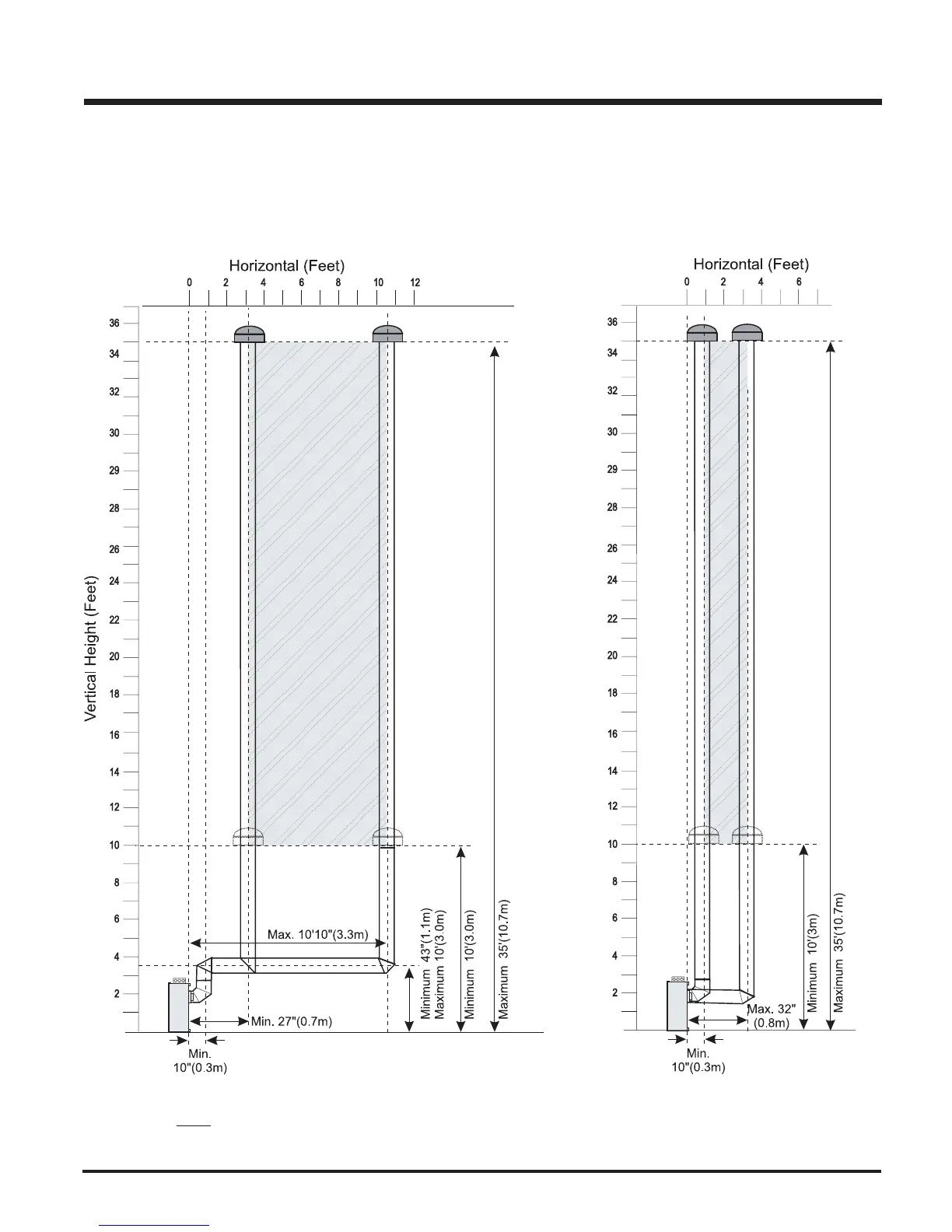

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations , using three 90
o
elbows
(two 45
o
elbows equal one 90
o
elbow), with Simpson Dura-Vent Direct Vent GS vent systems for Propane and Natural Gas.
