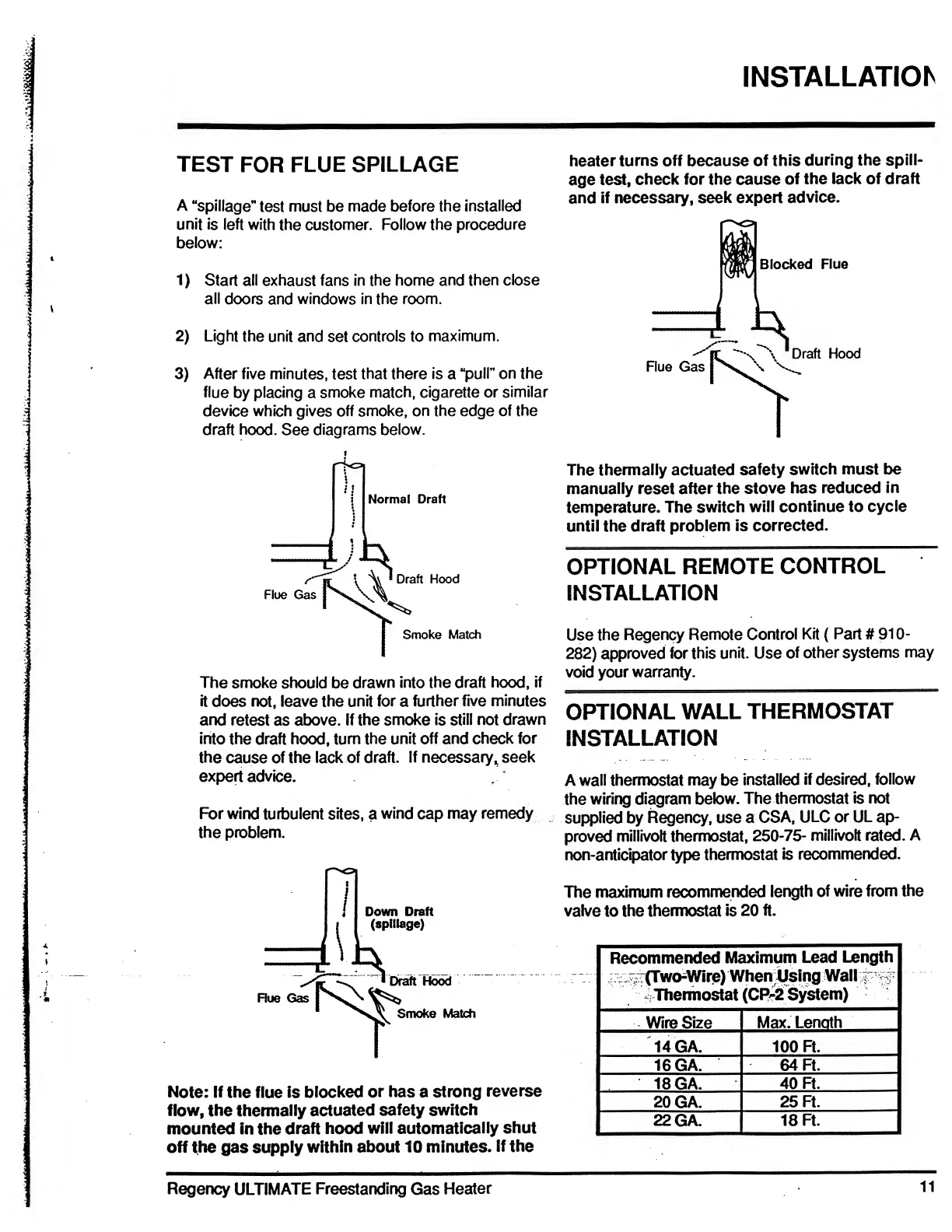

TEST FOR FLUE SPILLAGE
A “spillage” test must be made before the installed
unit is left with the customer. Follow the procedure
below:
1) Start all exhaust fans in the home and then close
all doors and windows in the room.
2) Light the unit and set controls to maximum.
3) After five minutes, test that there is a “pull” on the
flue by placing a smoke match, cigarette or similar
device which gives off smoke, on the edge of the
draft hood. See diagrams below.
The smoke should be drawn into the draft hood, if
it does not, leave the unit for a further five minutes
and retest as above. If the smoke is still not drawn
into the draft hood, turn the unit off and check for
the cause of the lack of draft. If necessary, seek
expert advice.
For wind turbulent sites, a wind cap may remedy
the problem.
Note: If the flue is blocked or has a strong reverse
flow, the thermally actuated safety switch
mounted in the draft hood will automatically shut
off the gas supply within about 10 minutes. If the
heater turns off because of this during the spill¬
age test, check for the cause of the lack of draft
and if necessary, seek expert advice.
The thermally actuated safety switch must be
manually reset after the stove has reduced in
temperature. The switch will continue to cycle
until the draft problem is corrected.
OPTIONAL REMOTE CONTROL
INSTALLATION
Use the Regency Remote Control Kit ( Part # 910-
282) approved for this unit. Use of other systems may
void your warranty.
OPTIONAL WALL THERMOSTAT
INSTALLATION
A wall thermostat may be installed if desired, follow
the wiring diagram below. The thermostat is not
supplied by Regency, use a CSA, ULC or UL ap¬
proved millivolt thermostat, 250-75- millivolt rated. A
non-anticipator type thermostat is recommended.
The maximum recommended length of wire from the
valve to the thermostat is 20 ft.
Recommended Maximum Lead Length
(Two-Wire) When Using Wall
Thermostat (CP"2 System)
Wire Size
Max. Lenath
14 GA.
100 Ft.
16 GA. 64 Ft.
18 GA.
40 Ft. 1
20 GA.
25 Ft.
22 GA. 18 Ft. j
Regency ULTIMATE Freestanding Gas Heater
11
