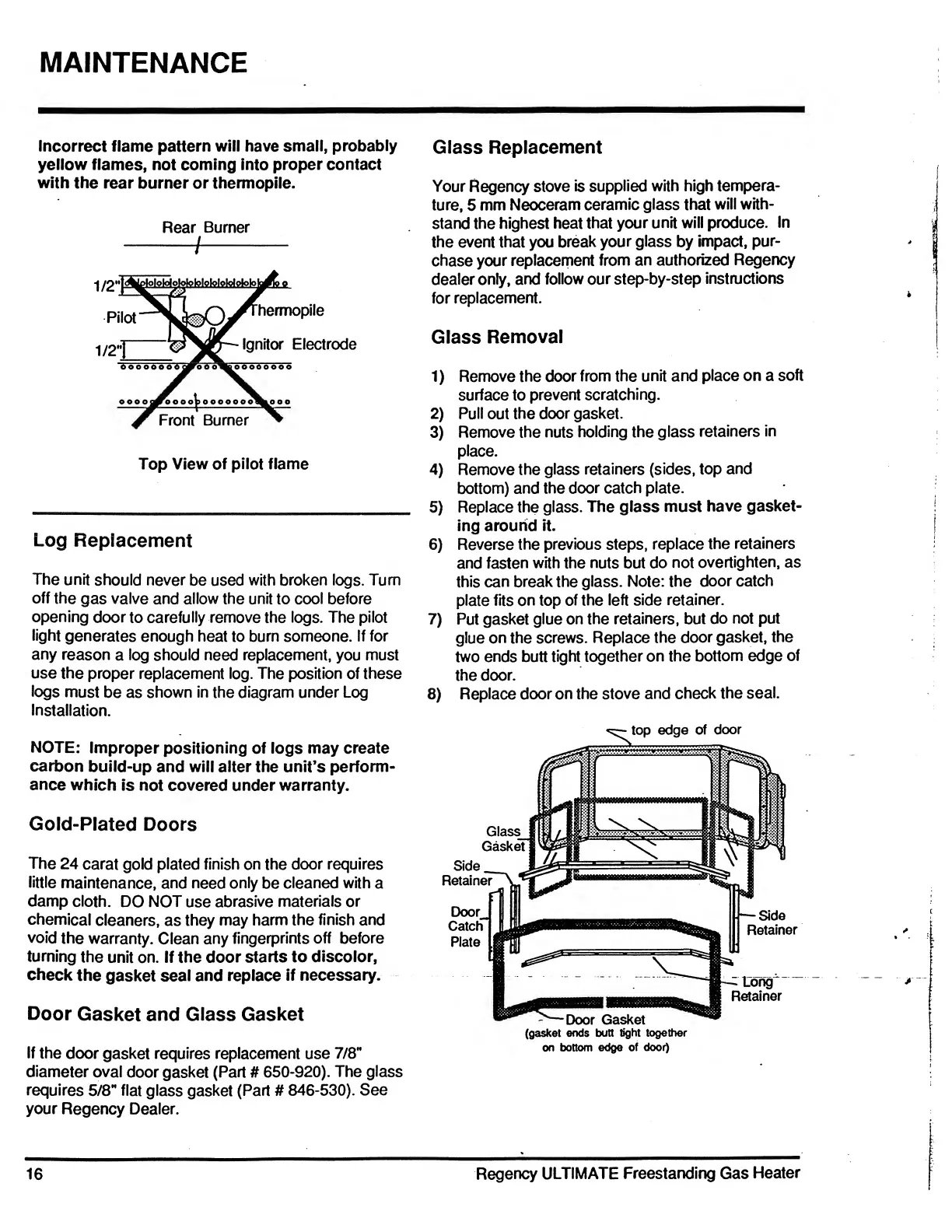

Regency ULTIMATE U41FS-LP - Log Replacement; Gold Plated Doors; Door and Glass Gasket; Glass Replacement

MAINTENANCE
Incorrect flame pattern will have small, probably
yellow flames, not coming into proper contact
with the rear burner or thermopile.
Rear Burner
-/-
hermopile
Ignitor Electrode
Top View of pilot flame
Log Replacement
The unit should never be used with broken logs. Turn
off the gas valve and allow the unit to cool before
opening door to carefully remove the logs. The pilot
light generates enough heat to burn someone. If for
any reason a log should need replacement, you must
use the proper replacement log. The position of these
logs must be as shown in the diagram under Log
Installation.
NOTE: Improper positioning of logs may create
carbon build-up and will alter the unit’s perform¬
ance which is not covered under warranty.
Gold-Plated Doors
The 24 carat gold plated finish on the door requires
little maintenance, and need only be cleaned with a
damp cloth. DO NOT use abrasive materials or
chemical cleaners, as they may harm the finish and
void the warranty. Clean any fingerprints off before
turning the unit on. If the door starts to discolor,
check the gasket seal and replace if necessary.
Door Gasket and Glass Gasket
If the door gasket requires replacement use 7/8"
diameter oval door gasket (Part # 650-920). The glass
requires 5/8" flat glass gasket (Part # 846-530). See
your Regency Dealer.
Glass Replacement
Your Regency stove is supplied with high tempera¬
ture, 5 mm Neoceram ceramic glass that will with¬
stand the highest heat that your unit will produce. In
the event that you break your glass by impact, pur¬
chase your replacement from an authorized Regency
dealer only, and follow our step-by-step instructions
for replacement.
Glass Removal
1) Remove the door from the unit and place on a soft
surface to prevent scratching.
2) Pull out the door gasket.
3) Remove the nuts holding the glass retainers in
place.
4) Remove the glass retainers (sides, top and
bottom) and the door catch plate.
5) Replace the glass. The glass must have gasket¬
ing around it.
6) Reverse the previous steps, replace the retainers
and fasten with the nuts but do not overtighten, as
this can break the glass. Note: the door catch
plate fits on top of the left side retainer.
7) Put gasket glue on the retainers, but do not put
glue on the screws. Replace the door gasket, the
two ends butt tight together on the bottom edge of
the door.
8) Replace door on the stove and check the seal.
top edge of door
Glass_
Gasket
Side
Retainer
Door,
Catch
Plate
J—Side
Retainer
Long
Retainer
■ D oor Gasket
(gasket ends butt tight together
on bottom edge of door)
