Regency ULTIMATE U41FS-LP - Fan Maintenance; Latch Adjustment; Parts List

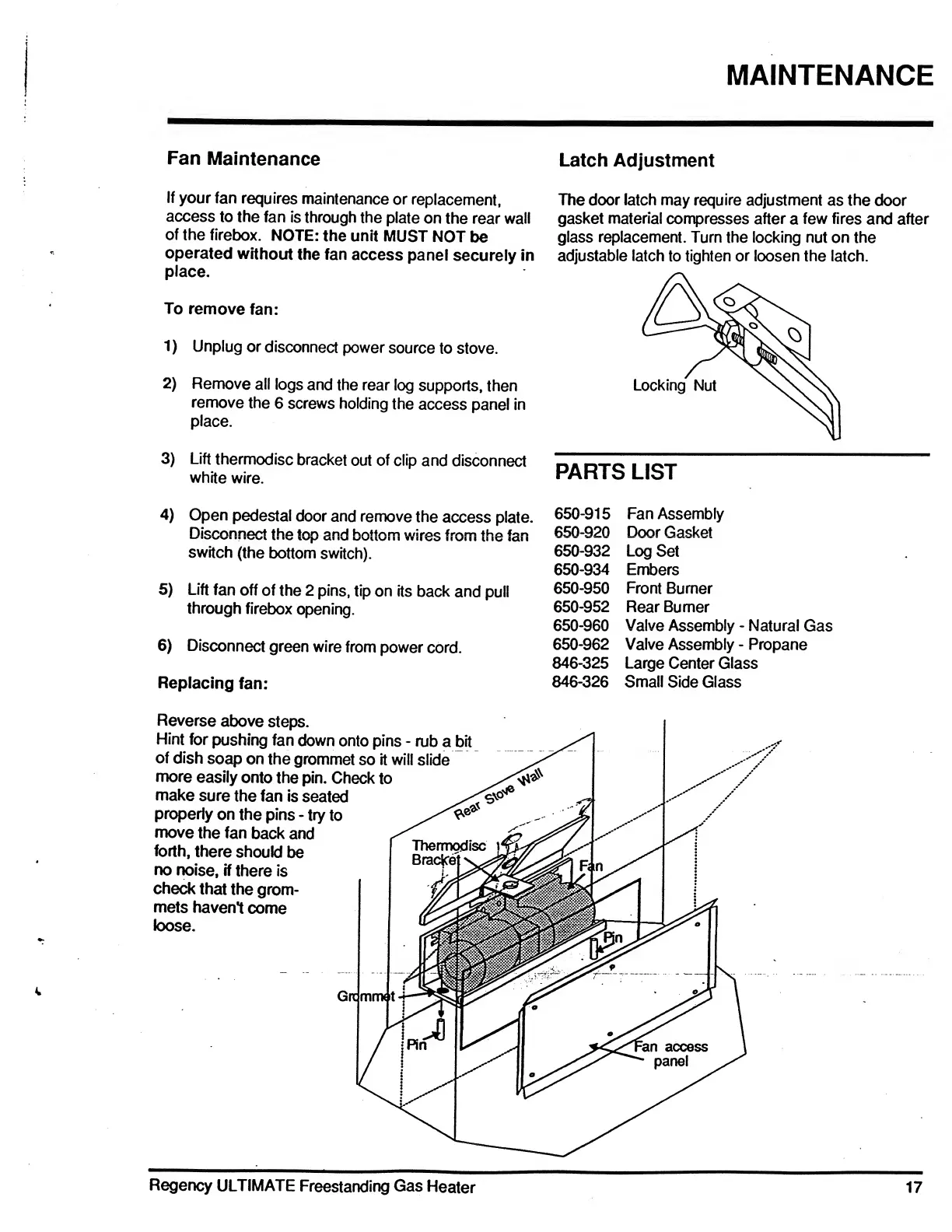

MAINTENANCE
Fan Maintenance
If your fan requires maintenance or replacement,
access to the fan is through the plate on the rear wall
of the firebox. NOTE: the unit MUST NOT be
operated without the fan access panel securely in
place.
To remove fan:
1) Unplug or disconnect power source to stove.
2) Remove all logs and the rear log supports, then
remove the 6 screws holding the access panel in
place.
3) Lift thermodisc bracket out of clip and disconnect
white wire.
Latch Adjustment
The door latch may require adjustment as the door
gasket material compresses after a few fires and after
glass replacement. Turn the locking nut on the
adjustable latch to tighten or loosen the latch.
Locking Nut
PARTS LIST
4) Open pedestal door and remove the access plate.
Disconnect the top and bottom wires from the fan
switch (the bottom switch).
5) Lift fan off of the 2 pins, tip on its back and pull
through firebox opening.
6) Disconnect green wire from power cord.
Replacing fan:
Reverse above steps.
Hint for pushing fan down onto pins - rub a bit
of dish soap on the grommet so it will slide
more easily onto the pin. Check to
make sure the fan is seated
properly on the pins - try to
move the fan back and
forth, there should be
no noise, if there is
check that the grom¬
mets haven't come
loose.
650-915 Fan Assembly
650-920 Door Gasket
650-932 Log Set
650-934 Embers
650-950 Front Burner
650-952 Rear Burner
650-960 Valve Assembly - Natural Gas
650-962 Valve Assembly - Propane
846-325 Large Center Glass
846-326 Small Side Glass
an access
- panel
Regency ULTIMATE Freestanding Gas Heater
