Manual CORRIGO L10 2002-11
Analogue outputs - 0...10 V
AO1 Y1 - Heat or cooling
AO2 Y2 - Plate-exchg. or rotating,
damper, cooling or not
used
AO3 Y3 - Cooling or not used
Digital outputs
DO1 DX-cooling stage 1
DO2 DX-cooling stage 2 or
Frostprotection interlock
DO3 Control fans
DO4 Control pump or electric heater
interlock
DO5 Alarm output

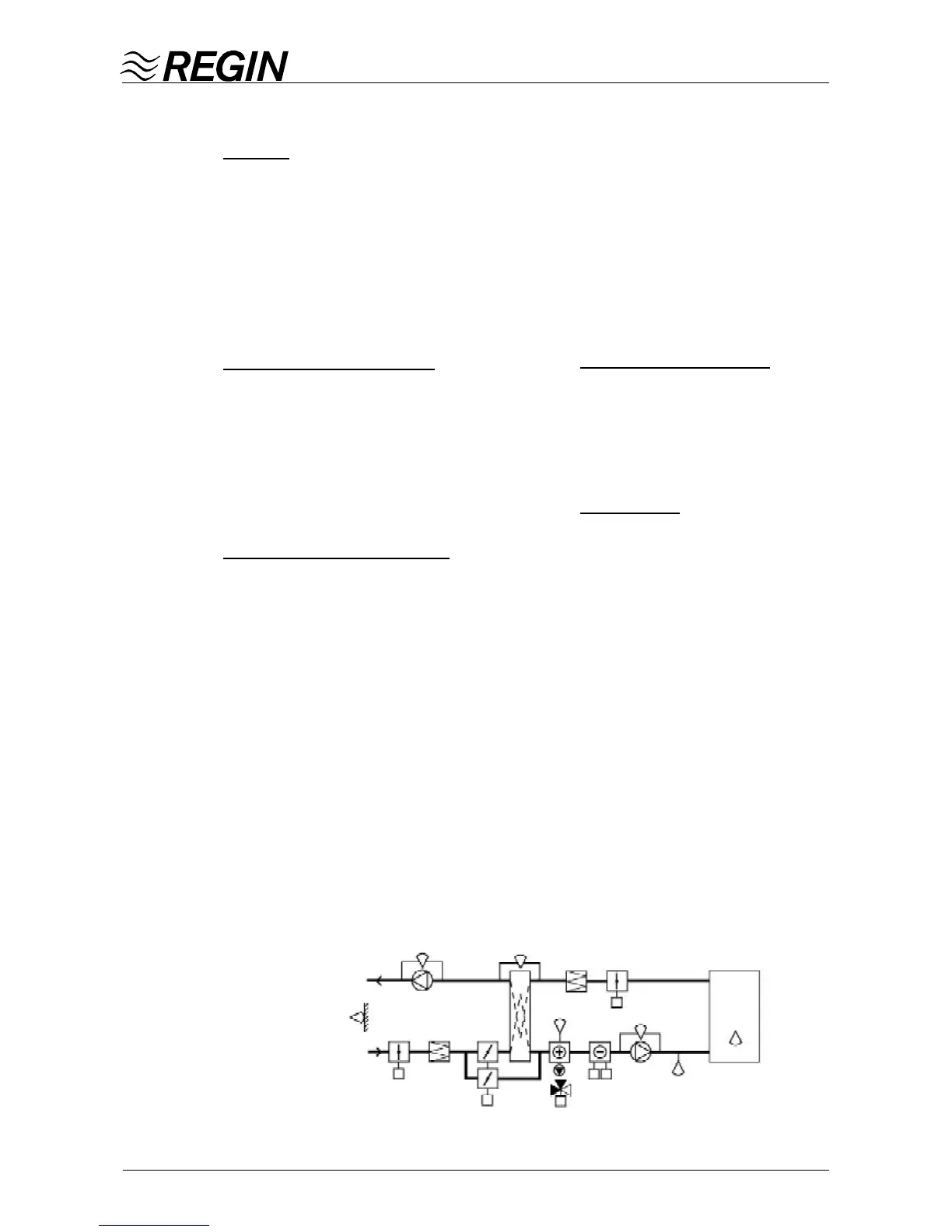

Application example. A typical
airhandling unit that the
CORRIGO L10 can manage and
control.
Overview
4 analogue sensor inputs for Pt1000 type sensor
4 digital inputs
3 analogue outputs 0...10 V
5 digital outputs
L10 has temperature control with up to 3 sequences, optional DX cooling
CORRIGO - L10
Analogue inputs - temperature
AI1 Outdoor temp. Alt. external setpoint
AI2 Room temp.
AI3 Supply air temp.
AI4 Frostguard temp. When heater is water
type or
Overheat sensor When electric heater
is used
Digital inputs - status and alarms
DI1 Fan alarm or Fan status
DI2 Water heater pump status
DI3 Extended runtime (timer/pushbutton),
(presence det.), smokealarm or external alarm
DI4 Cooler alarm, Exchg. alarm or external alarm
