Manual CORRIGO L10 2002-11
Technical data
Supply voltage 24 V AC +/- 15%
Power consumption 3 VA
Ambient temperature 0...50°C
Storage temperature -40...+50°C
Ambient humidity Max 90%RH
Size (l x h x d) 105 x 110 (incl terminals) x 59 mm
Protection class IP20, panel mount IP40
Mounting On DIN-rail in cabinet
On panel front with assembly kit FMC or FMK
Terminals Detachable screw terminal blocks, 2,5 mm
2
Sensor inputs PT1000.
Digital inputs Potential free, closing to common feedpoint
Analogue outputs 0...10 V DC, 5mA, short circuit protected
Digital outputs 2 Triac controlled 24 V AC 0,5 A (max 1A pulse)
3 Relay controlled 230V AC 5A
Memory Flash (all settings are saved in case of power
failiure).
Real-Time Clock has 24H backup power.
Display Backlit, LCD, 2 rows of 16 characters
Alarm output Flashing/Constant lit light emitting diode (LED) and
relay output capable of switching 230V AC / 5A.
The alarm output can be set to filter low priority
alarms at certain times of the week.
This product conforms with the requirements of
European EMC standards CENELEC EN50081-1
and EN50082-1 and carries the CE mark.

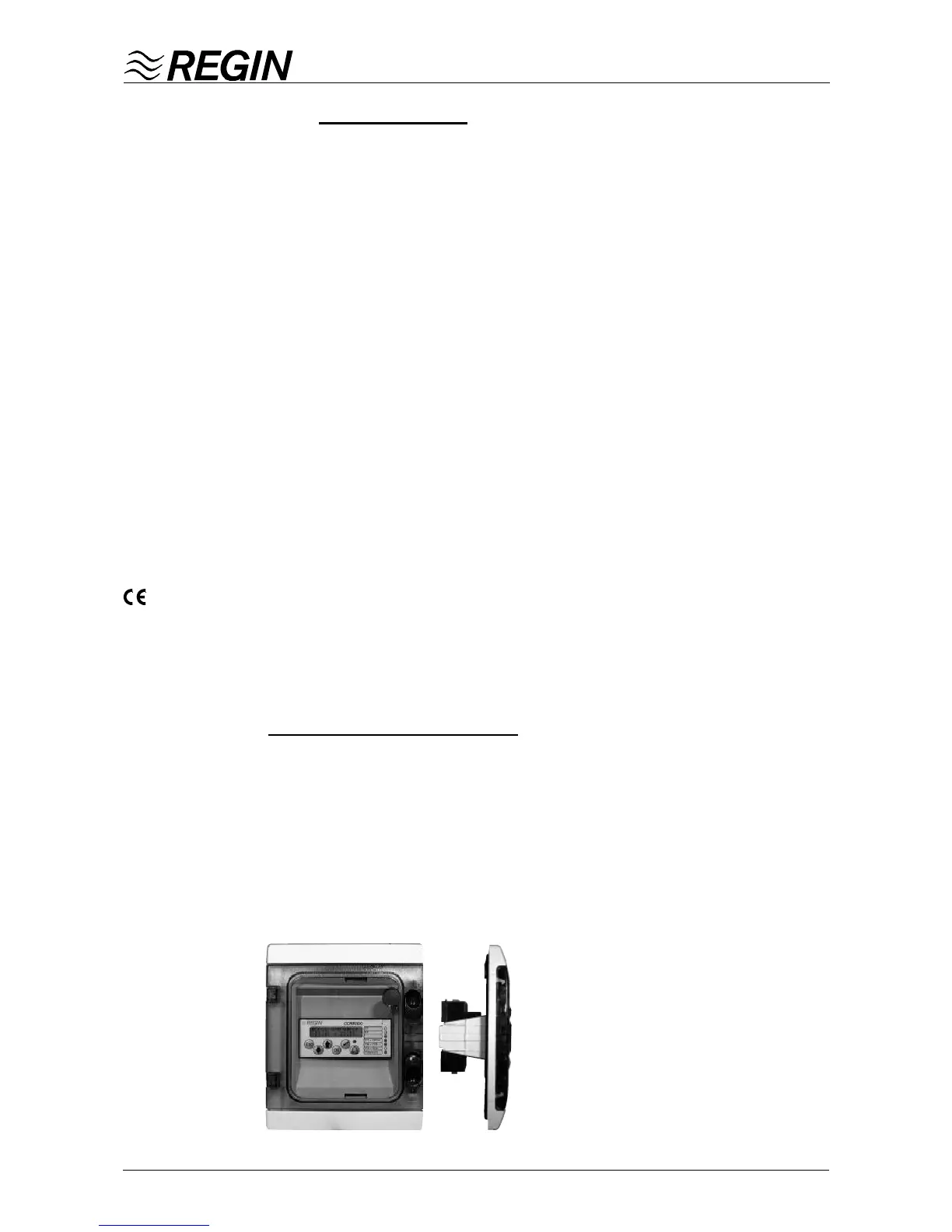

Front panel assembly kit
When mounting CORRIGO L10 in a cabinet front use the FMK1 kit for easier mounting.
The kit contains a front frame with see-through lid and an integrated mounting-rail.
Protection class IP65.
Reversable screw terminals can be ordered (article id: PLTL).
When mounting 2 CORRIGOs or one CORRIGO plus a relay unit next to each other in
the cabinet front use the FMK2 mounting kit. It contains the same items as FMK1
above but in different dimensions.
