96
Upper measuring range value of recorder output “2”, e.g.
300 °C/572 °F.
“S1” Recorder output “2” corresponds to actual value S1
(fluid temperature).
“SP1” Recorder output “2” corresponds to set value SP1.
“S2” Recorder output “2“ corresponds to actual value S2
(consumer temperature).
“SP2” Recorder output “2” corresponds to set value SP2.
“S3” Recorder output “2” corresponds to actual value S3
(generally inlet temperature).
“FLC” Flow rate.
“oFF” Analog set value input is switched off (inactive).
“0.10” Analog set value input signal in V. Range 0 to 10 V.
“0.20” Analog set value input signal in mA. Range 0 to
20 mA.
“4.20” Analog set value input signal in mA. Range 4 to
20 mA.
Lower measuring range value of analog set value input
signal, e.g. 0 °C/32°F.
Upper measuring range value of analog set value input
signal, e.g. 300 °C/572°F.
Switching on and off via external contact:
“0” When the external contact is closed, the unit is
switched off and the “On/Off” key blocked.
“1” When the external contact is opened, the unit is
switched off and the “On/Off” key blocked.
“2” The unit can be switched on and off via the external
contact as follows:
a) External contact closed: unit switches off.
b) External contact opened: unit switches on.
“3” The unit can be switched on and off via the external
contact as follows:
a) External contact closed: unit switches on.
b) External contact opened: unit switches off.
For “2” and “3”, the unit can always be switched
on and off via the “On/Off” key.

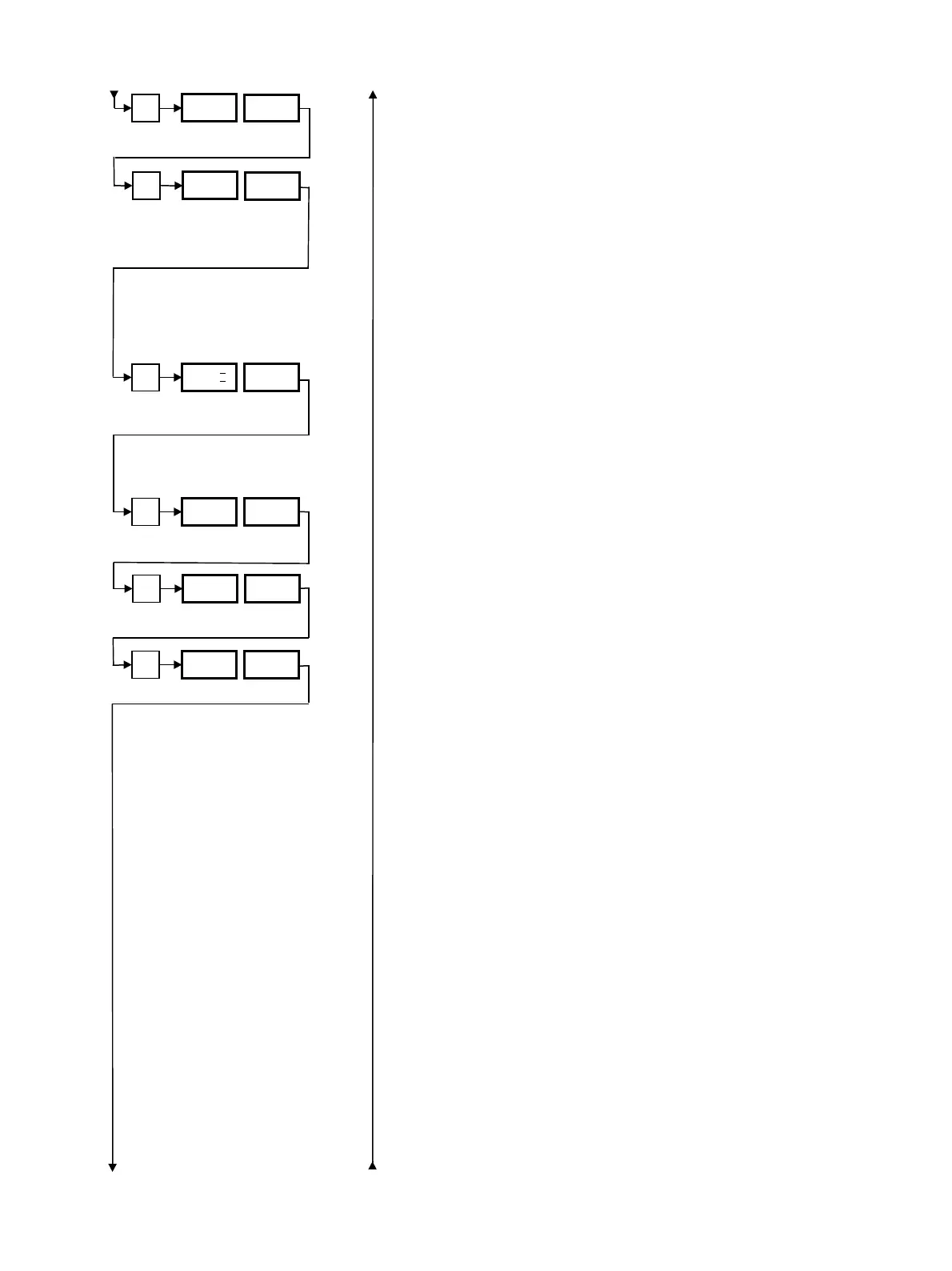

P
o2
–
300
P
SEL S1
S1/SP1
S2/SP2
S3
FLC
P
In oFF
oFF/0.10
0.20/4.20
P
In
–
0
P
In
–
300
P
ESS 0
0 to 3
0 to 500 (°C)
32 to 932 (°F)
0 to 420 (°C)
32 to 788 (°F)
0 to 420 (°C)
32 to 788 (°F)
