REITER AGR-08-E - Maintenance; Dismantling of the automatic gun

S-AGR08-Egb08 05/15-3 Page2of15

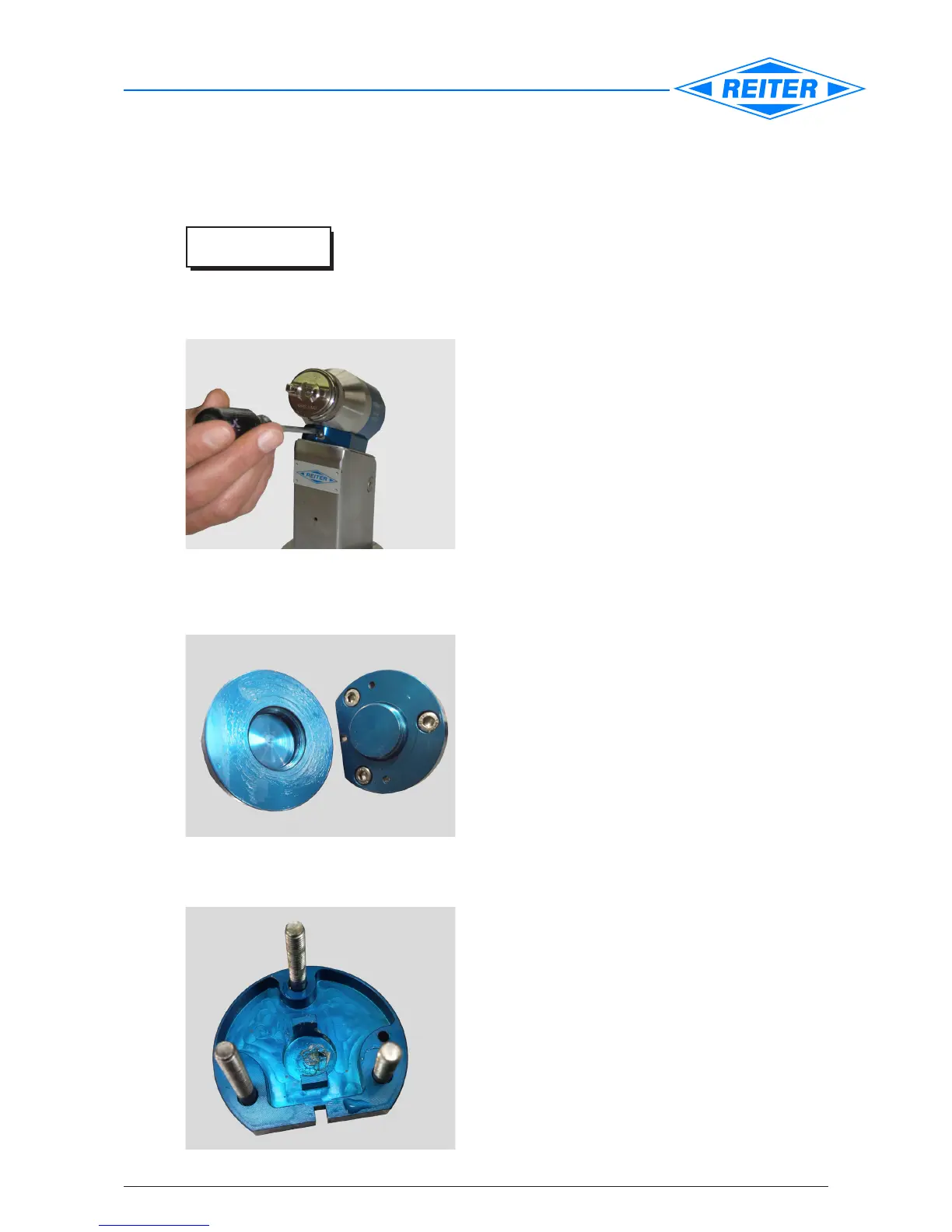

8 Maintenance
8.3 Dismantling of the automatic gun
•Rinsetheautomaticgun
•Securethegunagainstrestarting
•Wearprotectionclothes(glasesandgloves)
•Noticethegenerallyapplicableaccidentpreventionregulations
1. Loosen and remove the gun with a hexagon
socketheadwrench,size4fromtheinterme-
diate plate or the adapter.
 2. Loosenandremovethecover(19).
 3. Loosenandremovethethreescrews(18)and
removetheendplate(17).
Attention!
