3.2 Technical data
3.2.1 Automatic gun AGR-08-E
Spray system:
AGR-08-E Conventional air atomization
AGR-08-EN Low pressure air atomization
Max. pressures: 0 to 14 bar material (MAT)
6 bar control air (CYL)
9 bar atomiser air (ATOM) and fan air (FAN)
Switching times: < 60 msec. at 5,8 bar control air
Weight: 610 g
Materials:
Gun head: Stainless steel 1.4305
Paint needle (standard): Stainless steel 1.4305
Nozzle (standard): Stainless steel 1.4305
incl. plastic insert (POM)
Needle pack: UHMPE
Piston: POM
Head holder: AlZnMgCu1,5 blue anodized
End plate: AlZnMgCu1,5 blue anodized
Cover: AlZnMgCu1,5 blue anodized
Air distribution ring: Brass, chemically nickel-plated
Air cap: Brass, chemically nickel-plated
Air cap retaining ring: Brass, chemically nickel-plated
Material-contacting seals: VITON for water-based coatings (on request)
VITON EX for solvent-based coatings (standard)
Perourelastomer for highest resistance (on request)

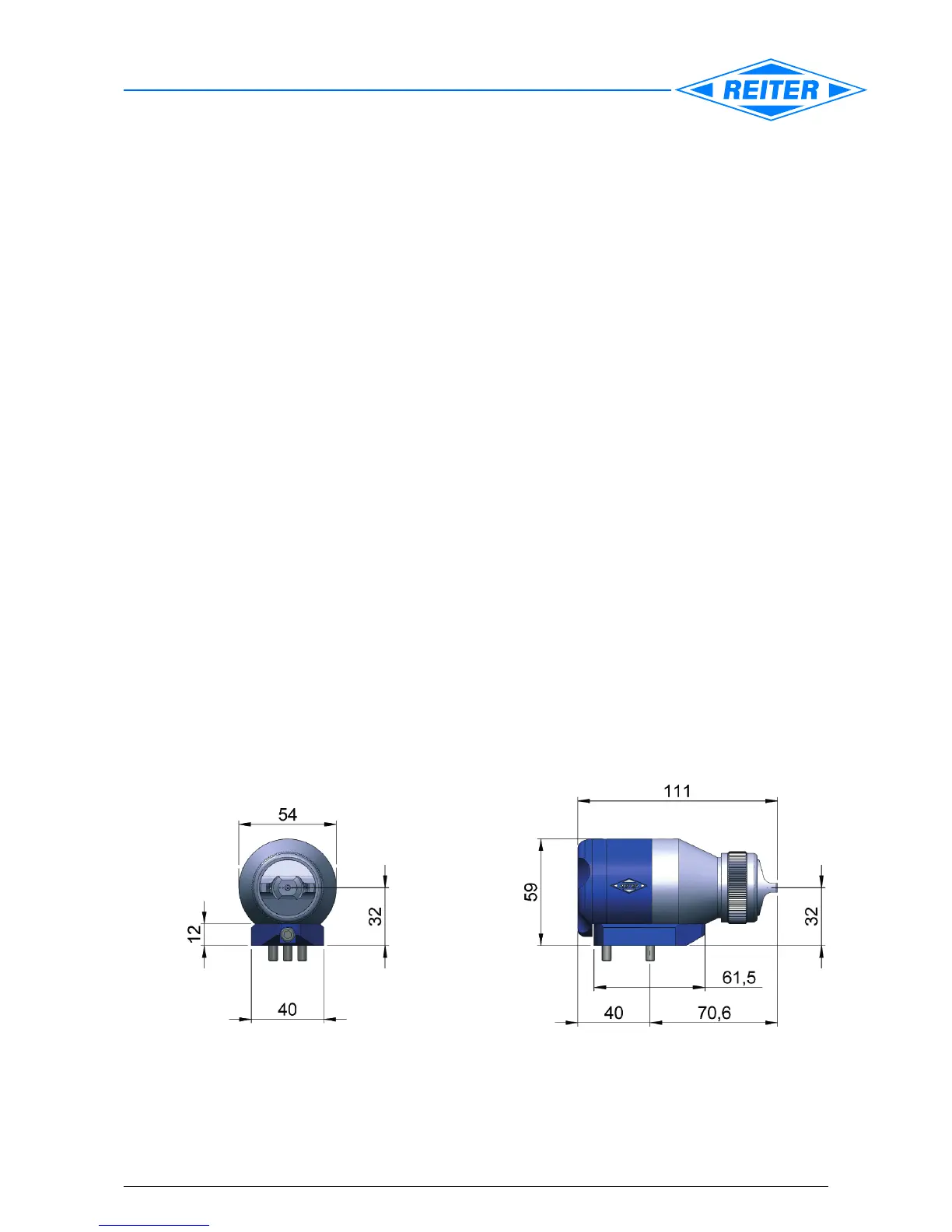

Dimensions:
AGR-08-E with intermediate plate
