REITER AGR-08-E - Maintenance; Maintenance of needle set

S-AGR08-Egb08 05/15 - 3 Page 11 of 15
8 Maintenance
8.5 Maintenance of needle set

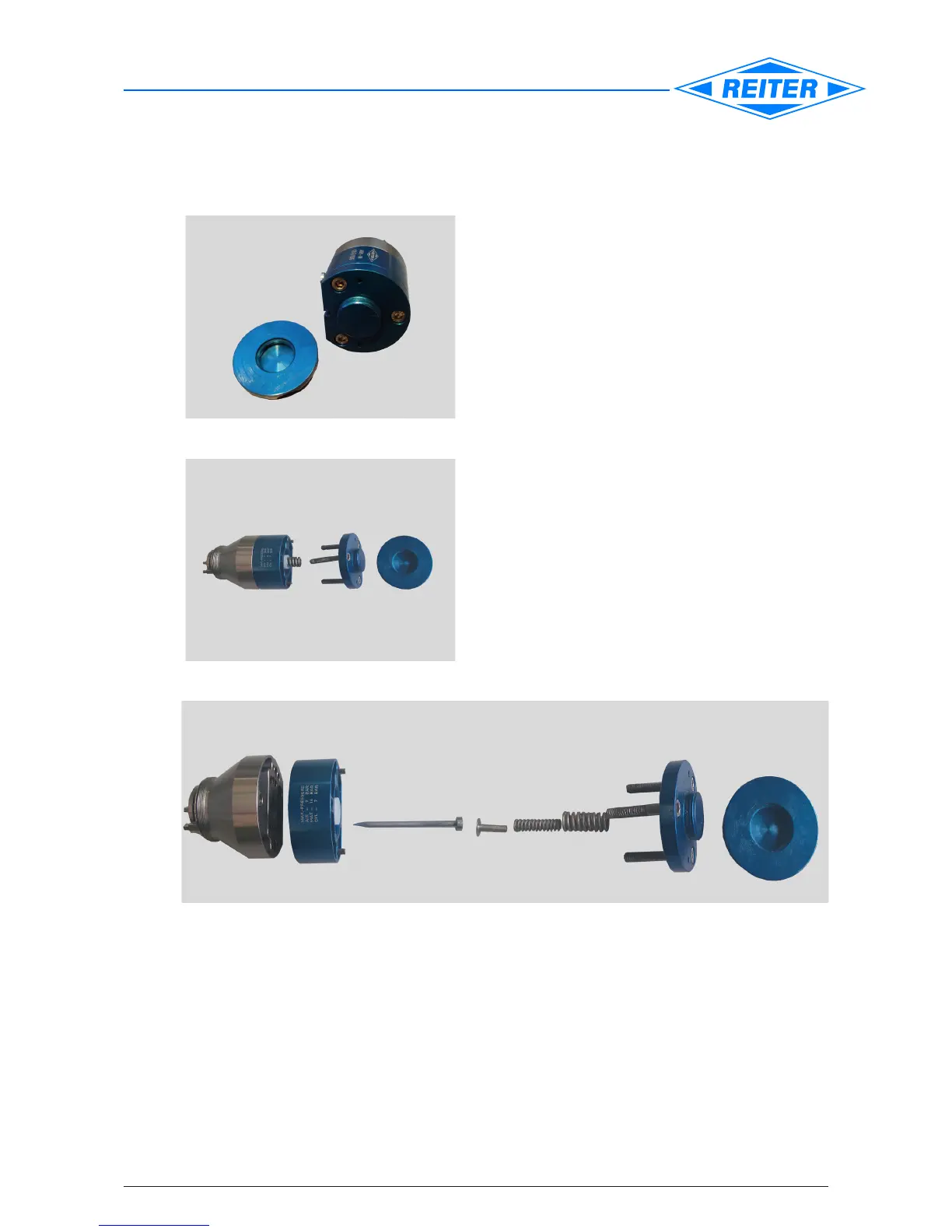

 1. Unscrewthecoverontheback.Loosenand
remove the three Allen screws with an Allen
key4mm.Atreassemblypleaselubricatewith
grease(partno.65026530).
 2. Removebackguncover.
3. Remove the two springs and the spring pin
and separate the spay head from the head
holderbyaxial,manuallycarefullypulling.
Attention: Risk of injury!
Needle can be very sharp.
