8 Maintenance

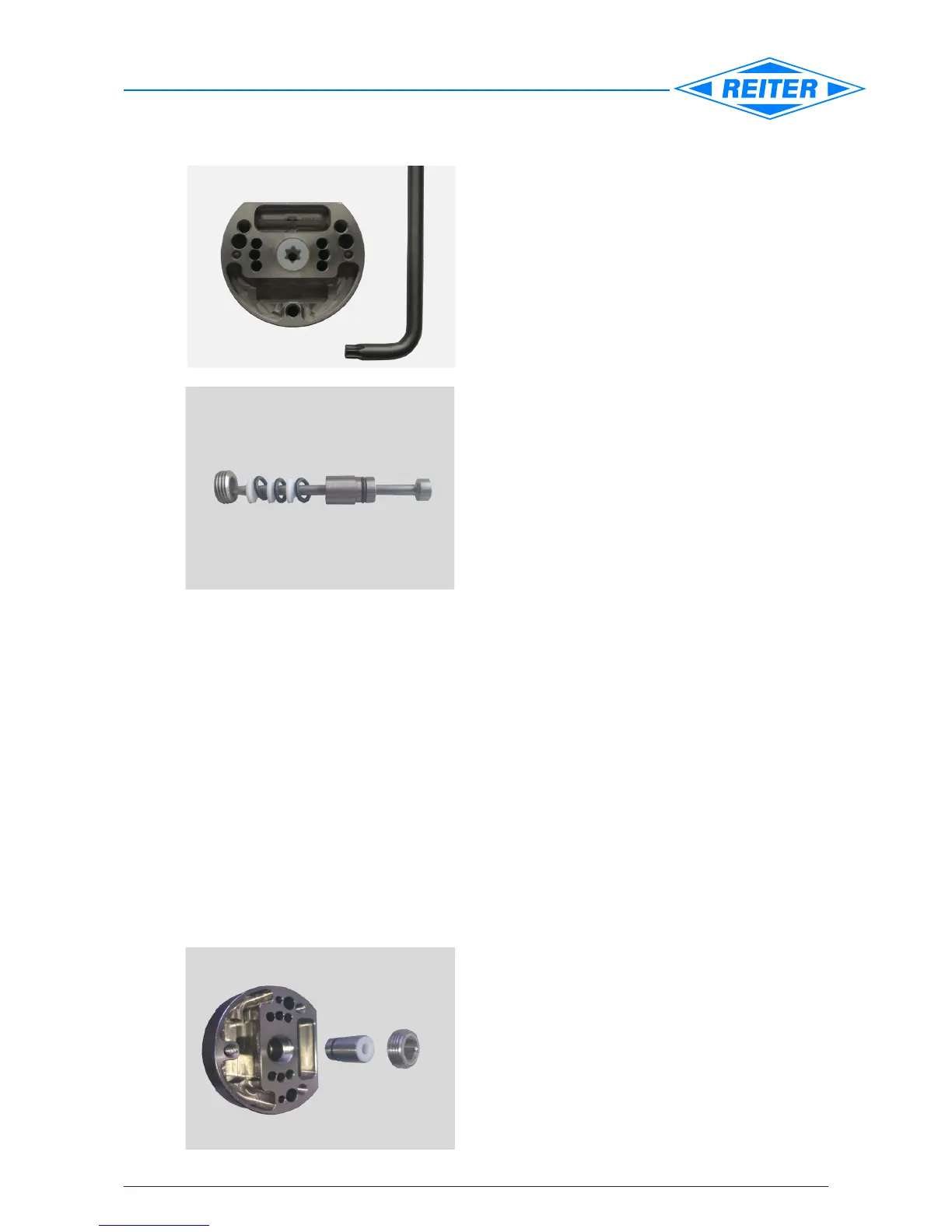

 4. Unscrewthewornstandardneedlesetwitha
Torx40withlight,axialpressure.
Clean the spray head carefully before the new
set is used.
  Lubricatethestandardset(partno.65077600,
seeimage)withgrease(partno.65026530)
andscrewwithaTorx40with0,8Nm.
  PushoutthespecialneedlesetKalrezcpl.
(partno.63319030)fromthenozzlesidewith
aplasticpin(partno.64004080)afterthere-
tainingscrewM12x1andthepaintnozzlewas
turnedbyusingaAllenkey6mm(thepaint
needle in the photo used here only for clarity.
Thisisnottobeusedforinstallation).
Clean the spray head carefully before the new
set is used.
  Pleasemakesurethatallpartsduringinitial
installation and after cleaning wet with grease
(partno.65026530).
  AreplacementoftheO-ringsincaseofmain-
tenance is needed only as required, but rec-
ommended.
Special needle set Kalrez cpl.
(part no. 63319030) consisting of:
 1off Sethousing(64052640)
 3off Cap-typegasket3,3x9x3,1(64052600)
 1off HoldingscrewM12x1(64052630)
 4off O-ringKalrez(65010620)
  5. Theassemblyofthepackageintheprevi-
ously greased spray head is done manually,
sincethepackformsacircumferentialgapto
the housing and is sealed by the front, each
O-ring.Theythereforeneednotbepressedor
hammered. A facilitate insertion provides the
plasticmandrel(partno.64004080).Tighten
the previously greased screw plug with an Al-
lenkey6mmand5-6Nm
