REITER AGR-08-E - Maintenance; Reassembly of the automatic gun

S-AGR08-Egb08 05/15-3 Page6of15
8 Maintenance
8.4 Reassembly of the automatic gun

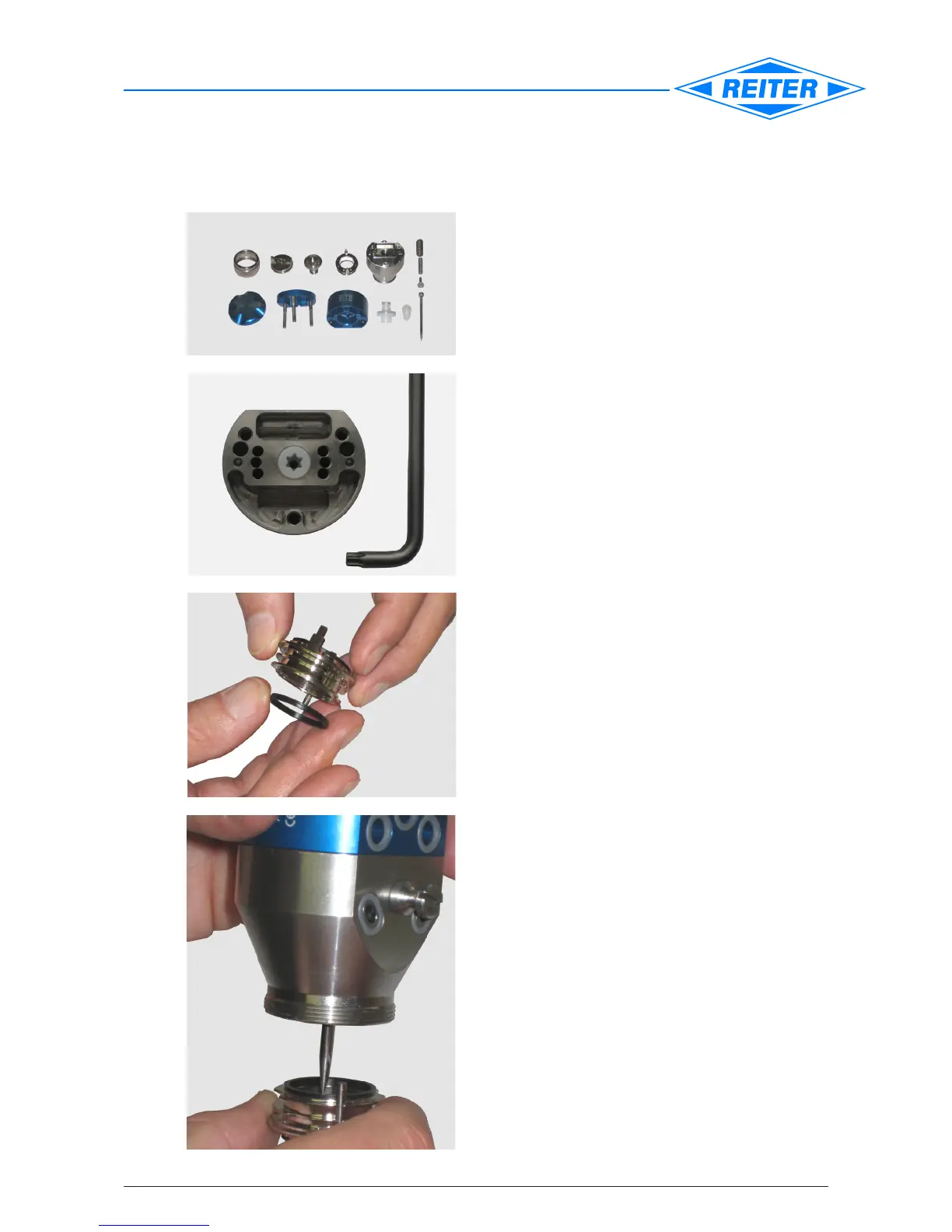

1. Lay out all components and the required tools
on a clean level surface.
  2. Mountthesprayhead(8)intothegreased
standardneedleset(9)with0.8Nmormount
thespecialpackagemadeinstainlesssteel
withKalrezo-ringsintothesprayhead(8)and
tighten with a suitable tool with 3.0 Nm.
 3. Wetgaskets(6)withlittlefatandputitinthe
airdistributionring(7).
Attention: The gaskets are different. The
smaller diameter is in the air distributing
ring.
Too much grease can be carried away by
the fan air and atomizing air and reected
in painting/coating on the workpiece.
  Thatthegasketsdonotslip,itmakessense
to hold the gun with the needle down vertically
and insert the air distribution ring with the gas-
ketsfrombelow.
Attention: Risk of injury!
Needle can be very sharp.
