7.1 Commissioning

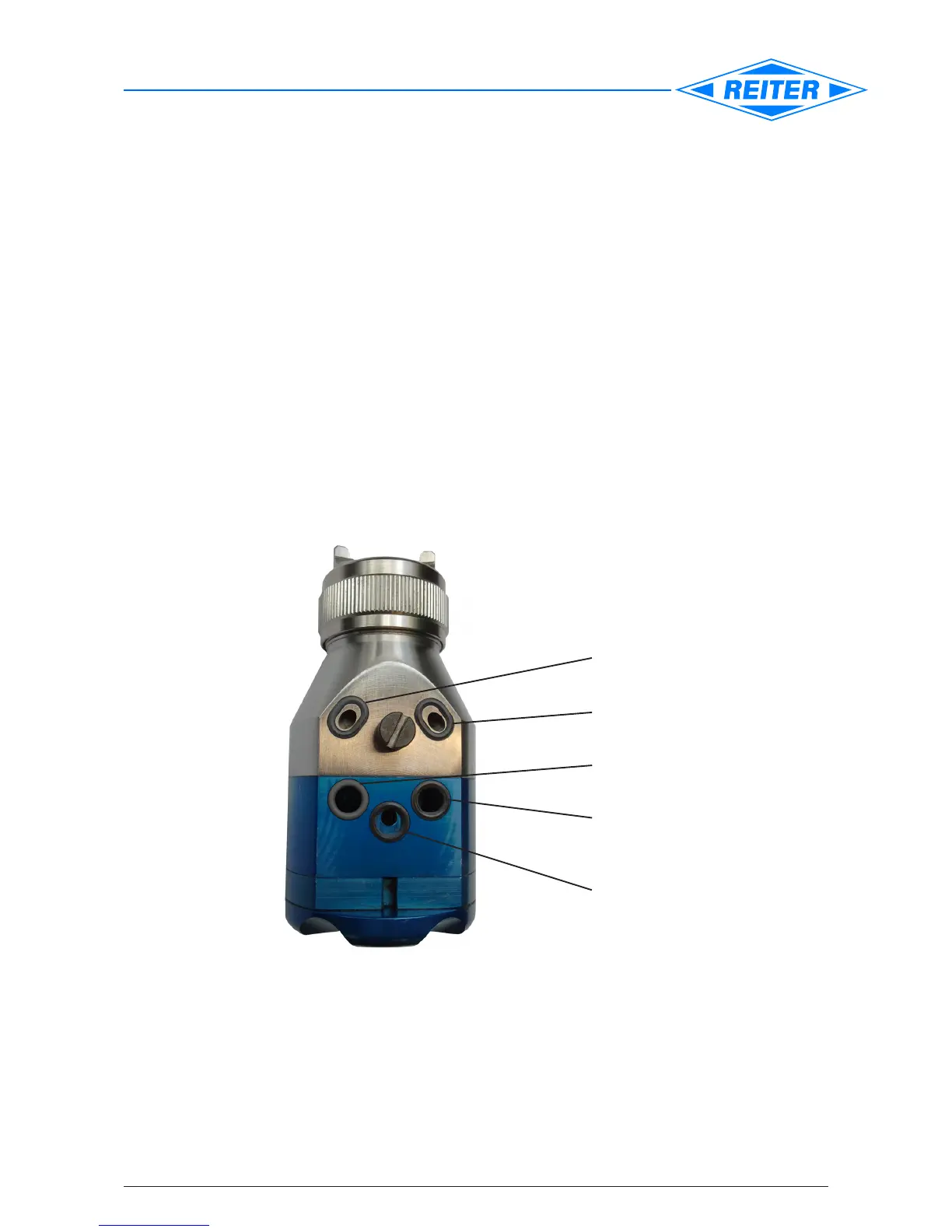

Supply line (VL)
Return line (RL)
Fan air (HL)
Atomizer air (ZL)
Main needle (HN)
The automatic spray gun AGR-08-E, depending on the built-in version, is attached on a intermedi-
ate plate, which serves as an adapter to be able to use the gun as diverse as possible. This plate is
mounted on an adapter to which the material and the air can be connected.
Depending on the version, the gun sits directly on an adapter without an intermediate plate is re-
quired.
The adapter is attached to the movement device (robot or hoisting device) or to a tripod.
All compressed air and material lines are connected to the adapter.
Table of Contents
7.1 Commissioning ..................................................................................................................1
7.2 Usage conditions ...............................................................................................................2
7.3 Tools and other materials required.....................................................................................2
7.4 Fastening onto intermediate plates (if available) ............................................................... 2
7.4.1 Intermediate plate AGR......................................................................................................2
7.5 Adjusting the jet geometry .................................................................................................3
7.5.1 Distance to workpiece ........................................................................................................3
