REITER AGR-08-E - Commissioning and Operation; Usage conditions; Tools and materials required; Fastening onto intermediate plates

S-AGR08-Egb07 05/15 - 3 Page 2 of 3
7 Commissioning and Operation
7.2 Usage conditions
Operating temperature: max. 80°C
Ambient temperature: max. 40°C
7.3 Tools and other materials required
The following tools are required for installing and removing the automatic spray gun AGR-08-E:
 • Hexagonsocketheadwrench,size4
 • Gungrease(partno.65026530)fortheo-ring-wettingwhileplacingthegun.
7.4 Fastening onto intermediate plates (if available)
7.4.1 Intermediate plate AGR
Note!
Fortheintermediateplate(partno.63316350)theautomaticgunAGR-08-Eisttedwiththelock-
ingdevice(partno.64045940).

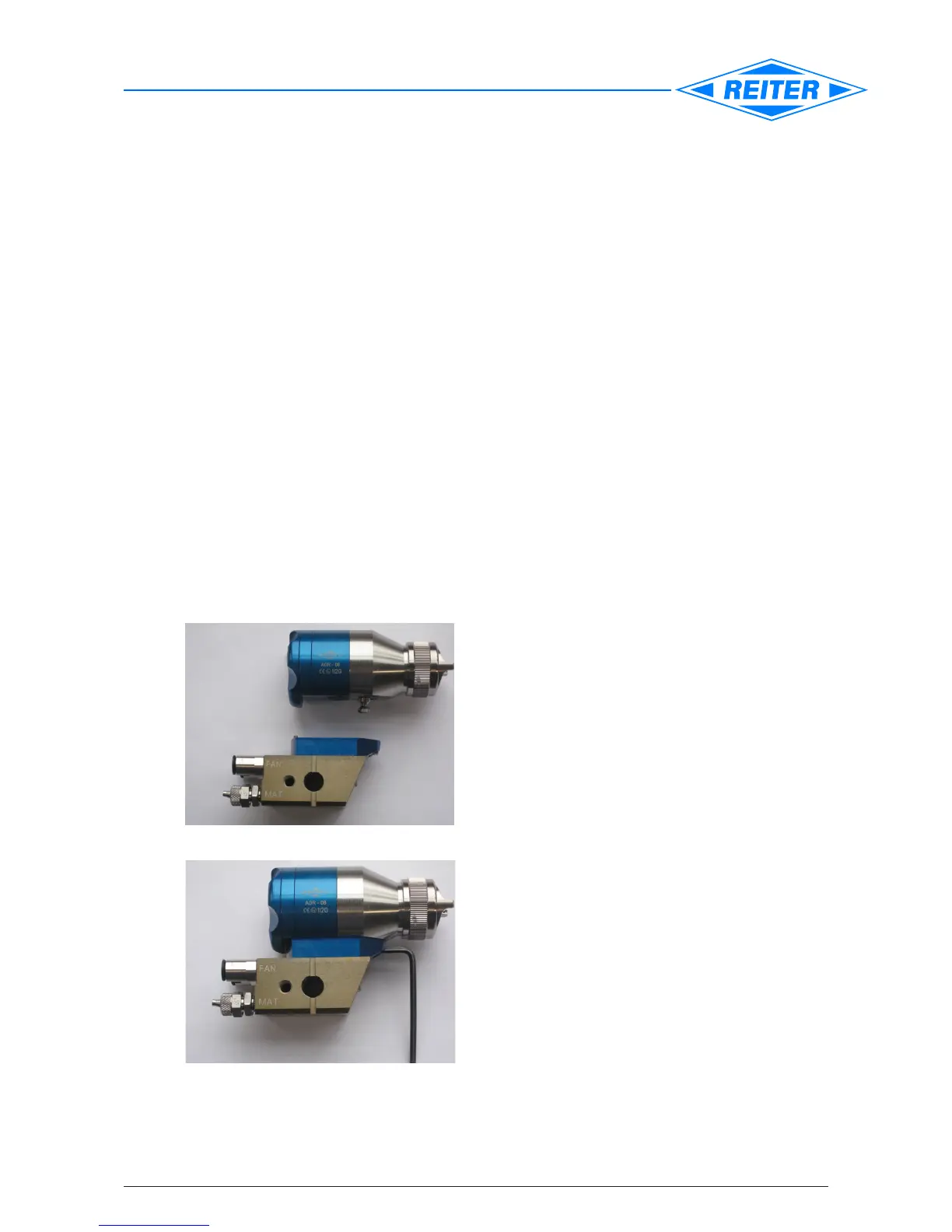

1. Fixing gun on the intermediate plate.
2. Fixing automatic gun AGR-08-E and the “stud
with tip” with a hexagon socket head wrench,
size 4.
