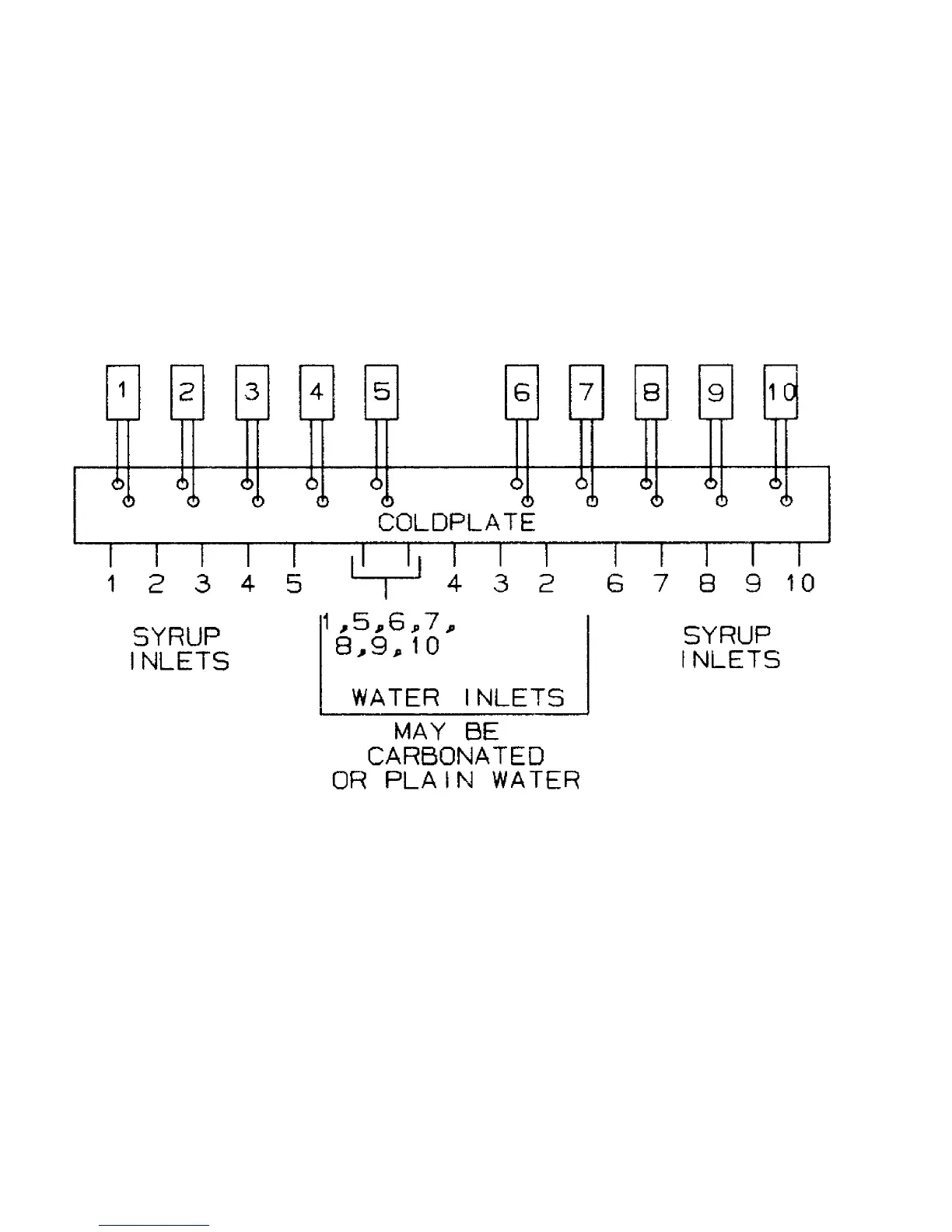

Remcor DB200 - Figure 8. Plumbing Schematic 10 Faucets

1091679
NOTE:
1) TO SERVICE COLDPLATE INLET FITTINGS, SINK HAS TO BE REMOVED.
TO REMOVE, DISCONNECT SINK DRAIN CONNECTIONS, THEN LIFT
TWO (2) SIDE MOUNTING PINS AND PULL SINK FORWARD. REVERSE
TO RECONNECT.
2) MAKE SURE ALL DRAIN CONNECTIONS ARE PROPERLY POSITIONED
FOR DRAINING AFTER SERVICE, BEFORE PANELS ARE INSTALLED.
FIGURE 8. PLUMBING SCHEMATIC 10 FAUCETS
