Remcor DB200 - Figure 13. Exploded View (Lower and Parts List)

19 91679

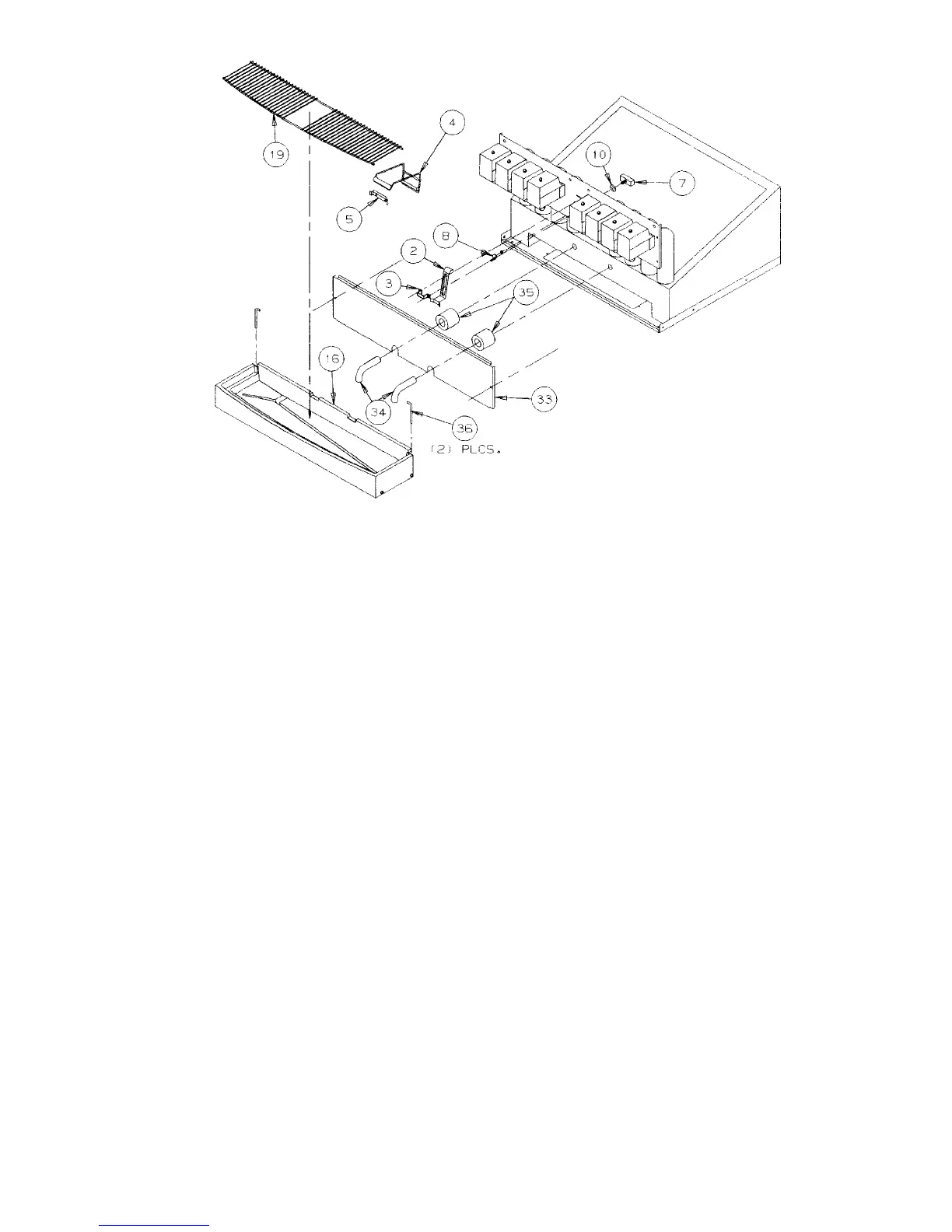

FIGURE 13. EXPLODED VIEW - LOWER SECTION AND PARTS LIST
Item
No. Part No. Name
2 21515 Depressor Lever - Cup Activated
3 22644 Depressor Retainer (for 21515)
4 27126 Depressor Push Lever
5 27107 Depressor Retainer (for 27126)
7 02070 Depressor Switch Kit
8* 31007 Switch Boot
10* 70847 Switch Spacer
16 52216 Sink - Gray
19 70912 Sink Grill
33 28080 Panel Lower
34 52203 Tube, Cold Plate Drain
35 52201 Insulation, Cold Plate Drain
36 10145 Pin, Sink Extension
Faucet Assembly
28223 Panel, 6 Beverage Valves
28079 Panel, 8 Beverage Valves
28843 Panel, 10 Beverage Valves
40944 Beverage Valve, Lancer Lever
41050 Beverage Valve - Lancer Push Button
41084 Fitting 90° Inlet
40704 Plain Water Plug
40408 Block Mounting Screw 10-32 x 1-1/4
NOTE: * Parts supplied with Dispenser Switch Kit, P/N 02070.
